2012 Yamaha TTR230 (TTR230B) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2012 Yamaha TTR230 (TTR230B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

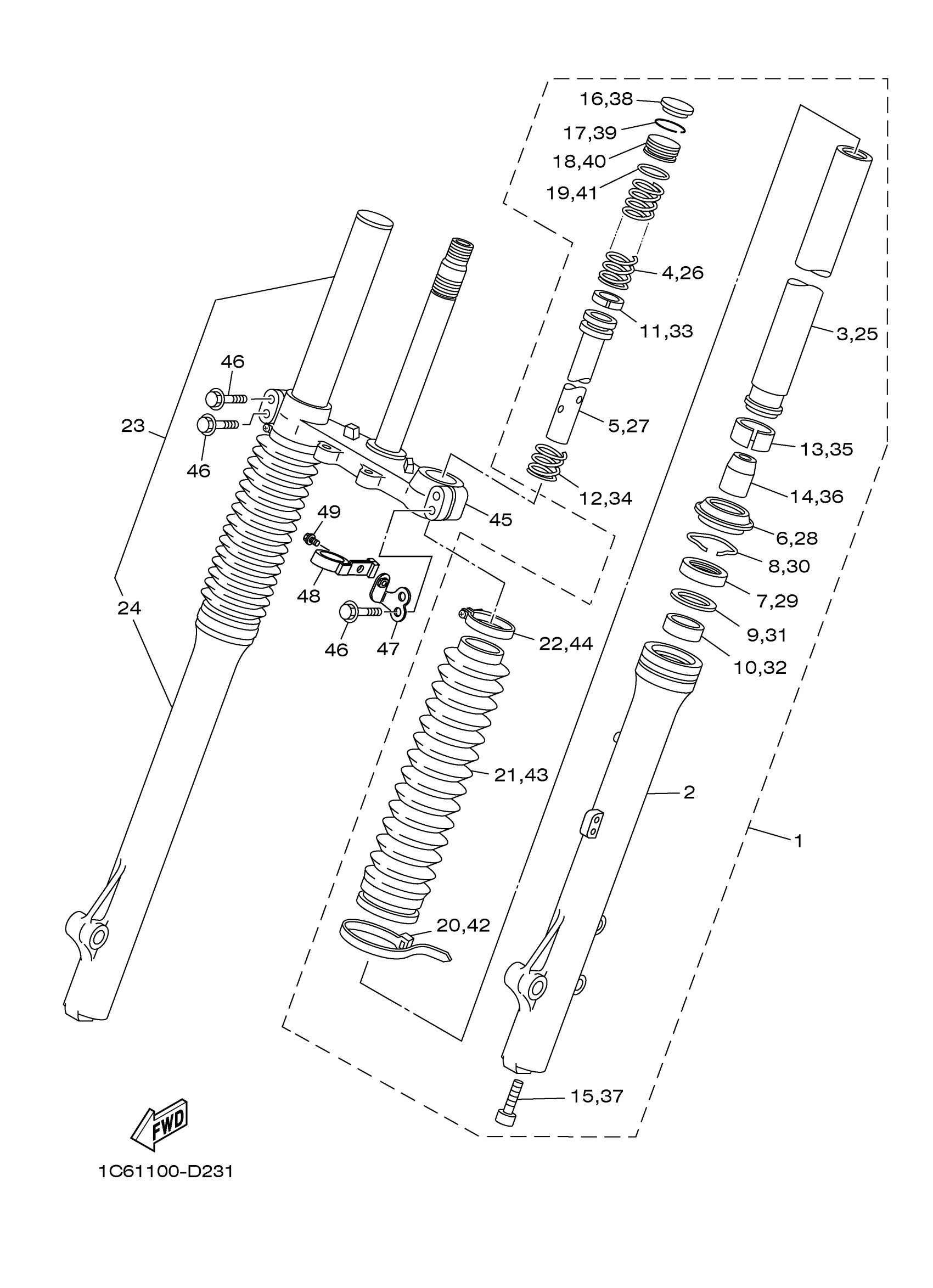

2012 Yamaha TTR230 (TTR230B) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER ASSY. (L)

1C6-F3102-02-00

1
Out of stock

2

TUBE, OUTER (LEFT)

1C6-F3126-00-00

1
Out of stock

3

INNER TUBE COMP.1

1C6-F3110-00-00

—
Out of stock

4

SPRING

1C6-F3351-00-00

1
Out of stock

5

PISTON, FRONT FORK

1C6-F3171-00-00

—
Out of stock

6

SEAL, DUST

1KH-23144-00-00

1
Out of stock

7

OIL SEAL

1KH-23145-00-00

1
Out of stock

8

CLIP, OIL SEAL

34X-23156-00-00

1
Out of stock

9

O-RING

1KH-23147-00-00

1
Out of stock

10

METAL, SLIDE 1

34X-23125-00-00

—
Out of stock

11

RING, PISTON

34X-23157-00-00

1
Out of stock

12

SPRING, REBOUND

34X-23151-00-00

—
Out of stock

13

METAL, SLIDE 2

34X-23135-00-00

1
Out of stock

14

SPACER, OIL LOCK

4AN-F3166-00-00

1
Out of stock

15

BOLT

3M7-23181-00-00

1
Out of stock

16

CAP, FRONT FORK

35E-23168-00-00

—
Out of stock

17

CIRCLIP

35E-23183-00-00

—
Out of stock

18

BOLT, CAP

35E-23111-00-00

—
Out of stock

19

O-RING

58W-F3114-00-00

—
Out of stock

20

BAND

4AN-F3192-10-00

—
Out of stock

21

BOOT

1C6-23191-02-00

—
Out of stock

22

BAND

4AN-F3192-00-00

—
Out of stock

23

DAMPER ASSY. (R)

1C6-F3103-02-00

—
Out of stock

24

TUBE, OUTER (RIGHT)

1C6-F3136-00-00

—
Out of stock

25

INNER TUBE COMP.1

1C6-F3110-00-00

—
Out of stock

26

SPRING

1C6-F3351-00-00

1
Out of stock

27

PISTON, FRONT FORK

1C6-F3171-00-00

—
Out of stock

28

SEAL, DUST

1KH-23144-00-00

1
Out of stock

29

OIL SEAL

1KH-23145-00-00

1
Out of stock

30

CLIP, OIL SEAL

34X-23156-00-00

1
Out of stock

31

O-RING

1KH-23147-00-00

1
Out of stock

32

METAL, SLIDE 1

34X-23125-00-00

—
Out of stock

33

RING, PISTON

34X-23157-00-00

1
Out of stock

34

SPRING, REBOUND

34X-23151-00-00

—
Out of stock

35

METAL, SLIDE 2

34X-23135-00-00

1
Out of stock

36

SPACER, OIL LOCK

4AN-F3166-00-00

1
Out of stock

37

BOLT

3M7-23181-00-00

1
Out of stock

38

CAP, FRONT FORK

35E-23168-00-00

—
Out of stock

39

CIRCLIP

35E-23183-00-00

—
Out of stock

40

BOLT, CAP

35E-23111-00-00

—
Out of stock

41

O-RING

58W-F3114-00-00

—
Out of stock

42

BAND

4AN-F3192-10-00

—
Out of stock

43

BOOT

1C6-23191-02-00

—
Out of stock

44

BAND

4AN-F3192-00-00

—
Out of stock

45

UNDER BRACKET COMP.

1C6-F3340-00-00

—
Out of stock

46

BOLT, FLANGE

95817-08035-00

—
Out of stock

47

GUIDE, CABLE

1C6-F331E-00-00

—
Out of stock

48

GUIDE, CABLE

1C6-F3389-00-00

—
Out of stock

49

BOLT, FLANGE

90105-05832-00

1
Out of stock
