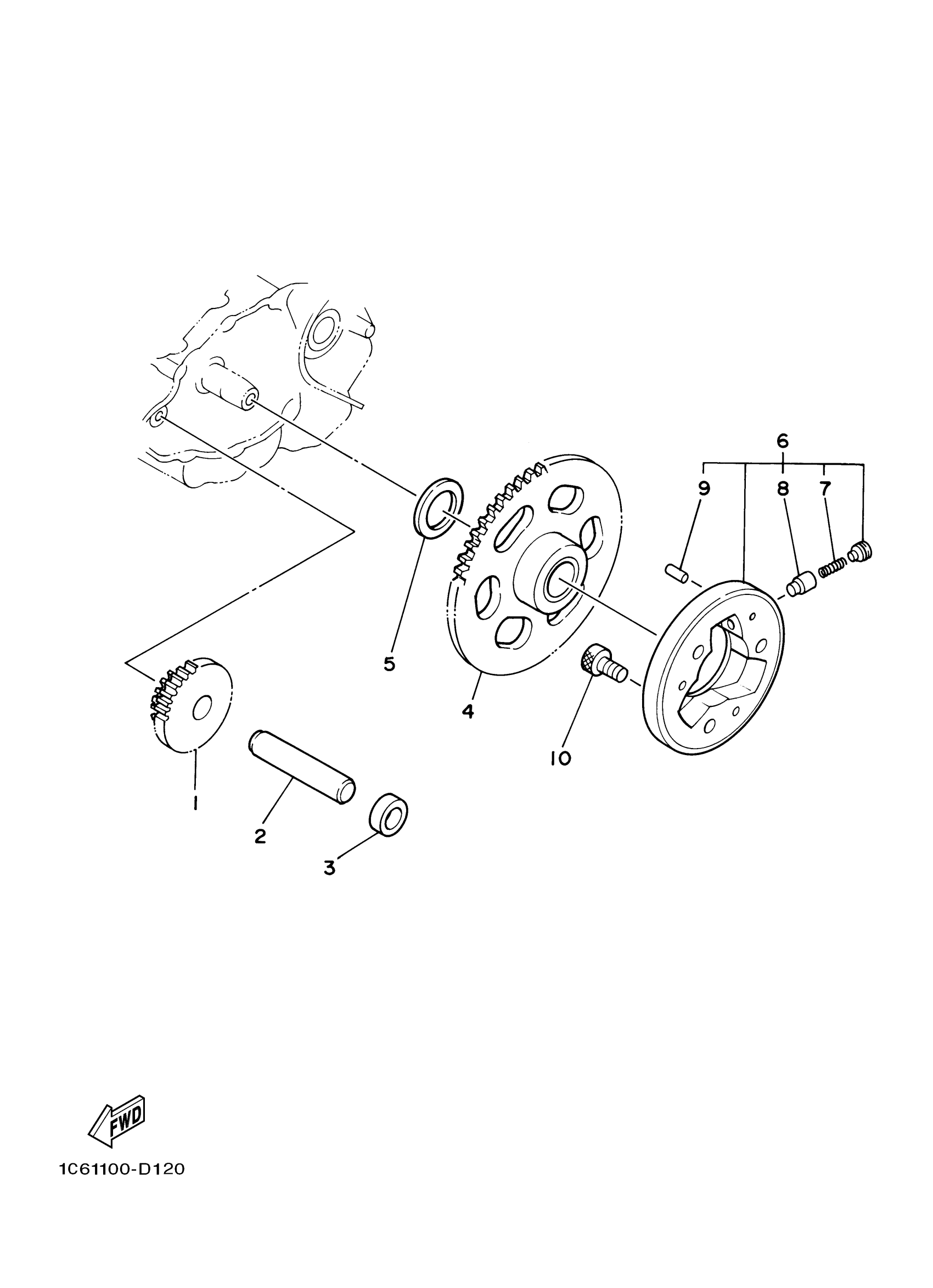

Yamaha TTR230A (TTR230) 1C6L 2011 STARTER CLUTCH Diagram

#

Description
Price

1

GEAR, IDLER 1

2HT-15512-00-00

Unavailable

2

SHAFT 1

5H0-15521-00-00

Unavailable

3

COLLAR(19W)

90387-125Y0-00

$13.14

4

GEAR, IDLER 2

4JG-15517-00-00

Unavailable

5

WASHER, PLATE(1FK)

90201-256K6-00

$3.26

6

STARTER CLUTCH OUTER ASSY

4H7-15580-10-00

$151.15

7

SPRING, COMPRESSION (4H7)

90501-04596-00

$6.39

8

CAP, STARTER CLUTCH

1J7-15583-01-00

$15.49

9

PIN,DOWEL(341)

93615-12088-00

$5.25

10

BOLT

9131M-08020-00

$1.74
