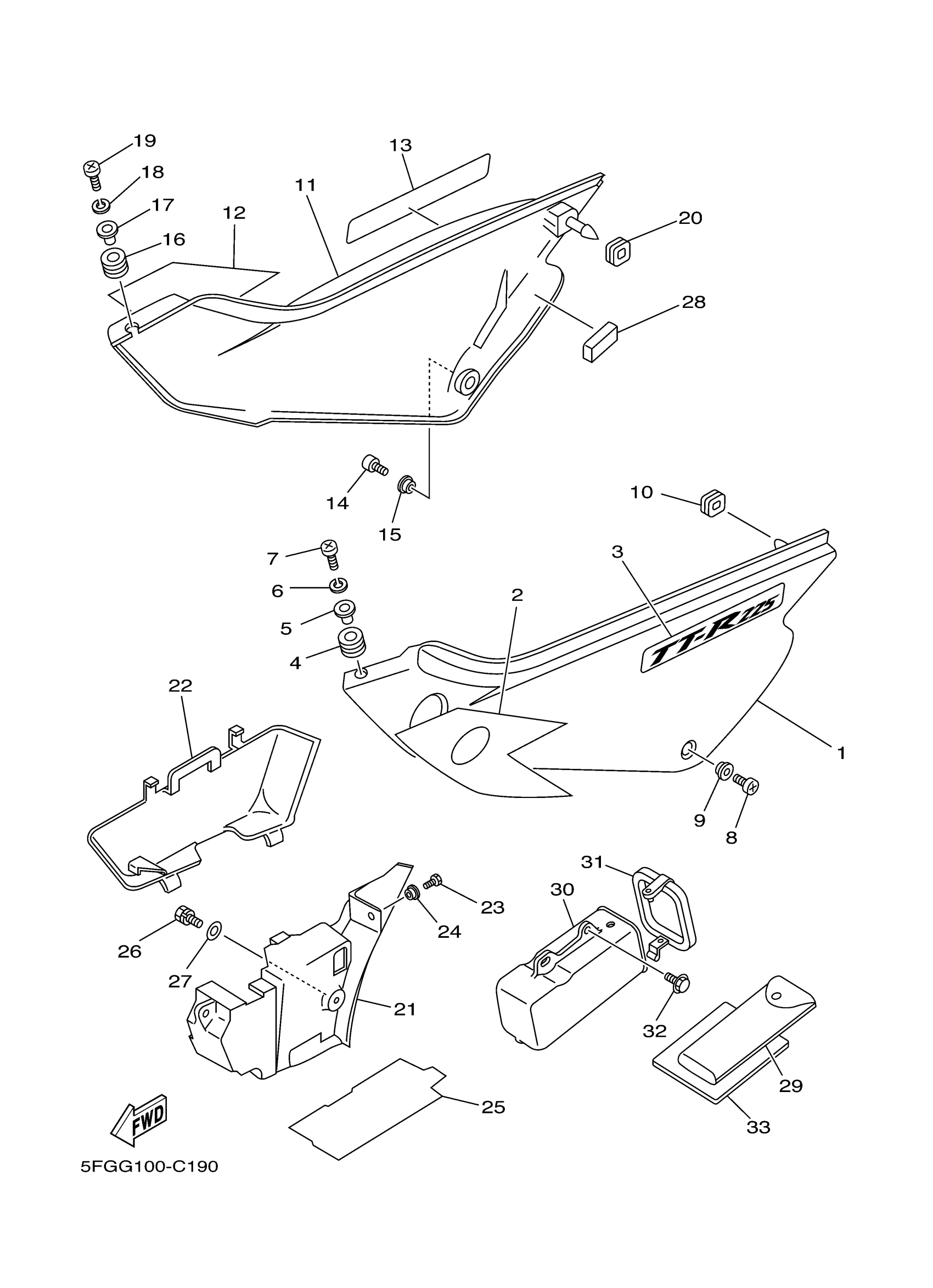

Yamaha TTR225SC (TT-R225 CA) 5FGH 2004 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1 WHITE

4VW-F1711-00-00

Unavailable

2

. GRAPHIC 1

5FG-F173E-20-00

Unavailable

3

EMBLEM 1

5FG-F1781-50-00

Unavailable

4

GROMMET 839774310000

90480-14023-00

$7.49

5

COLLAR

90387-06W53-00

Unavailable

6

WASHER

9290M-06100-00

Unavailable

7

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

8

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

9

COLLAR

90387-06107-00

$8.49

10

GROMMET(41Y)

90480-01401-00

$8.49

11

COVER, SIDE 2

4VW-F1721-00-00

Unavailable

12

. GRAPHIC 2

5FG-F173F-20-00

Unavailable

13

EMBLEM 1

5FG-F1781-50-00

Unavailable

14

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

15

COLLAR

90387-06107-00

$8.49

16

GROMMET 839774310000

90480-14023-00

$7.49

17

COLLAR

90387-06W53-00

Unavailable

18

WASHER

9290M-06100-00

Unavailable

19

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

20

GROMMET(41Y)

90480-01401-00

$8.49

21

BOX BATERY

4VW-F177A-10-00

Unavailable

22

SIDE COVER 4

4VW-F1741-00-00

Unavailable

23

BOLT, FLANGE

95817-06016-00

Unavailable

24

COLLAR

90387-06158-00

Unavailable

25

SEAL 3

4VW-F173M-00-00

Unavailable

26

BOLT M6

9750N-06414-00

Unavailable

27

WASHER, PLATE (4L0)

90201-062A8-00

Unavailable

28

DAMPER

4VW-F1717-00-00

Unavailable

29

TOOL KIT

4VW-F8100-01-00

Unavailable

30

BOX, TOOL

55V-28173-01-00

Unavailable

31

LID

55V-28185-00-00

Unavailable

32

BOLT, WITH WASHER(8V7)

90119-06108-00

Unavailable

33

DAMPER 5

4VW-F8267-00-00

Unavailable
