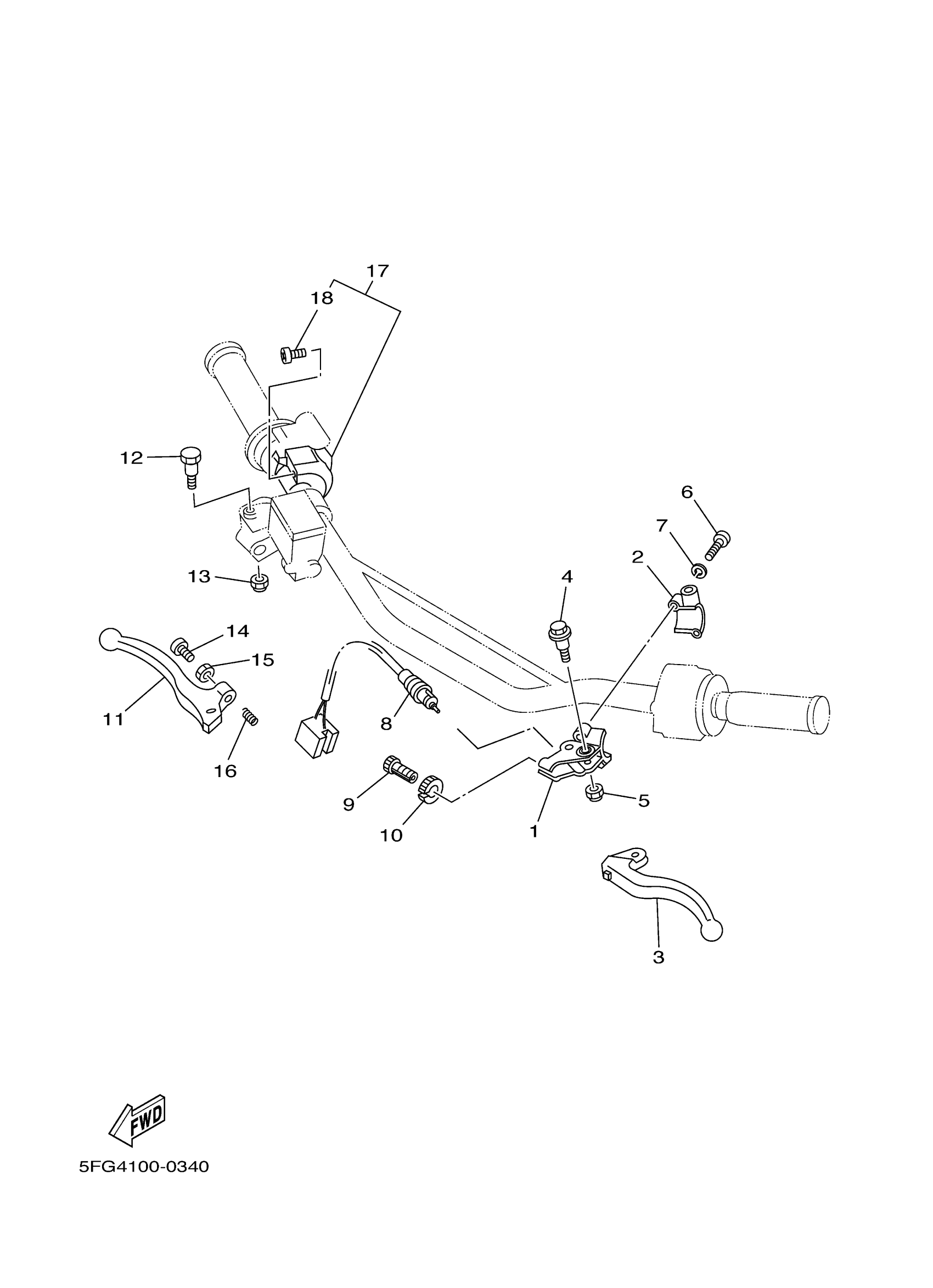

Yamaha TTR225SC (TT-R225 CA) 5FGH 2004 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

HOLDER LEVER 1

2TY-H2911-00-00

$23.99

2

HOLDER, LEVER 1

2TY-H2915-02-00

$11.49

3

LEVER 1

4AN-H3912-00-00

$19.99

4

BOLT (2YK1)

90109-06799-00

$4.99

5

NUT, SELF-LOCKING

95617-06100-00

$8.49

6

SCREW, PAN HEAD

98517-05020-00

$4.25

7

WASHER(3SX)

92907-05100-00

$8.49

8

SWITCH

3Y6-82917-00-00

Unavailable

9

BOLT

90123-08002-00

$10.49

10

NUT

90179-08030-00

$5.49

11

LEVER 2

4AN-H3922-00-00

Unavailable

12

BOLT (4L0)

90109-06577-00

$5.60

13

NUT, SELF-LOCKING

95617-06100-00

$8.49

14

SCREW, CROSS-RECESSED BINDING

90154-06802-00

Unavailable

15

NUT HEXAGON 306839270000

90170-06010-00

$8.49

16

SPRING COMPRESSION306839240000

90501-10312-00

Unavailable

17

SWITCH, HANDLE 2

4DW-83975-11-00

Unavailable

18

SCREW, PAN HEAD(4MY)

98507-05018-00

Unavailable
