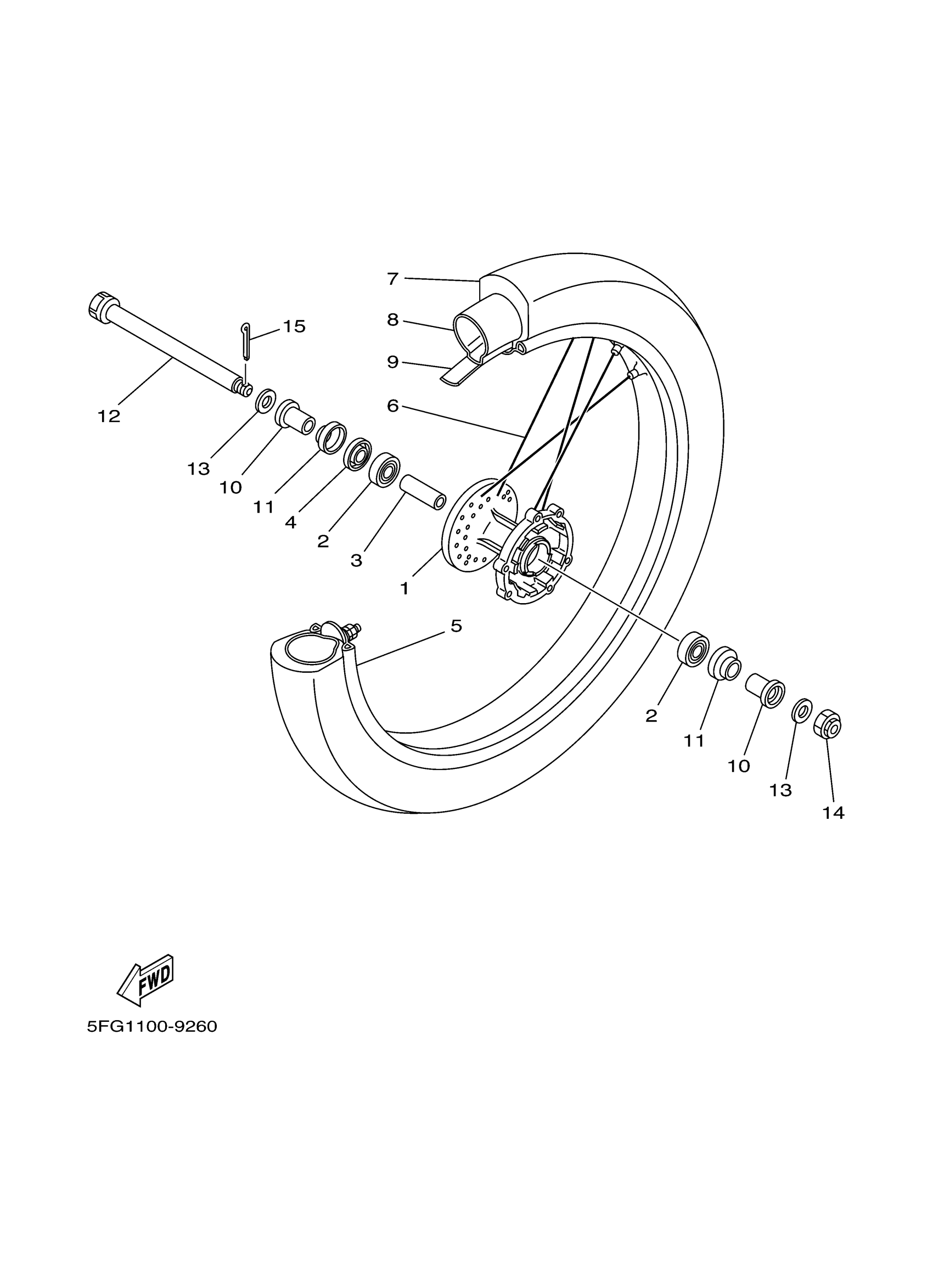

Yamaha TTR225SC (TT-R225 CA) 5FGH 2004 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT WHELL (0035)

4AN-F5111-10-35

$199.99

2

BEARING

93306-20205-00

$38.99

3

SPACER(1ET)

90560-15290-00

$18.99

4

OIL SEAL (23X)

93102-20281-00

$14.99

5

RIM 1.85 X 21

94418-21884-00

Unavailable

6

SPOKE SET, FRONT

4LR-25104-00-00

Unavailable

7

TIRE (80/100-21 51P MT21 TT)

94108-218F5-00

Unavailable

8

TUBE (80/100-21)

94227-21W51-00

Unavailable

9

BAND, RIM (2A6)

94330-21084-00

$16.99

10

COLLAR (1W1)

90387-15600-00

$18.99

11

COVER, HUB DUST

322-25118-00-00

$17.49

12

AXLE, WHEEL

34X-25181-00-00

Unavailable

13

WASHER (525)

90201-15238-00

Unavailable

14

NUT, CASTLE

90171-14W04-00

Unavailable

15

PIN, COTTER

91490-30030-00

$8.49
