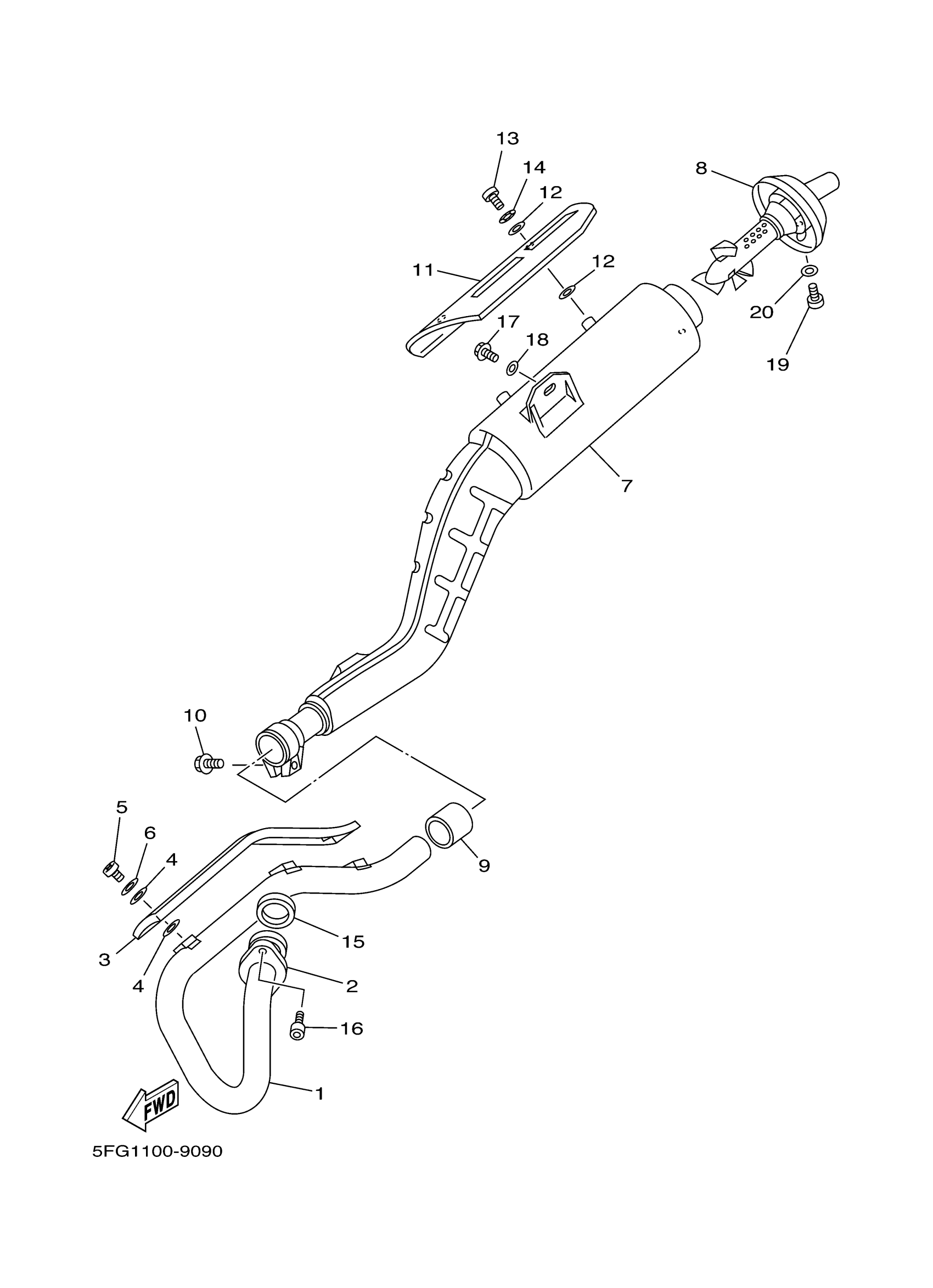

Yamaha TTR225SC (TT-R225 CA) 5FGH 2004 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

3RW-14611-00-00

Unavailable

2

NUT, RING

5H0-14612-01-00

$13.04

3

PROTECTOR, EXHAUST PIPE

3RW-14628-00-00

Unavailable

4

WASHER, PROTECTOR

4BD-14766-00-00

$5.12

5

SCREW, BINDING

98907-06010-00

$1.40

6

WASHER, WAVE(3RW)

90206-06090-00

$4.89

7

MUFFLER 1

5FG-14711-00-00

Unavailable

8

PIPE, OUTLET

1RH-14752-01-00

$117.03

9

GASKET, MUFFLER

3YF-14714-00-00

$27.78

10

BOLT, FLANGE(4MY)

95027-08025-00

$6.45

11

PROTECTER,MUFF 2

4VW-E4728-20-00

Unavailable

12

WASHER, PROTECTOR

4BD-14766-00-00

$5.12

13

SCREW, BINDING

98907-06010-00

$1.40

14

WASHER, WAVE(3RW)

90206-06090-00

$4.89

15

GASKET, EXHAUST PIPE

4BE-14613-00-00

$8.66

16

BOLT,SOCKET

91317-06020-00

Unavailable

17

BOLT(2KF)

90109-085E2-00

Unavailable

18

WASHER (853)

90201-08326-00

Unavailable

19

SCREW, PAN

98507-06010-00

Unavailable

20

WASHER(6TA)

92907-06600-00

Unavailable
