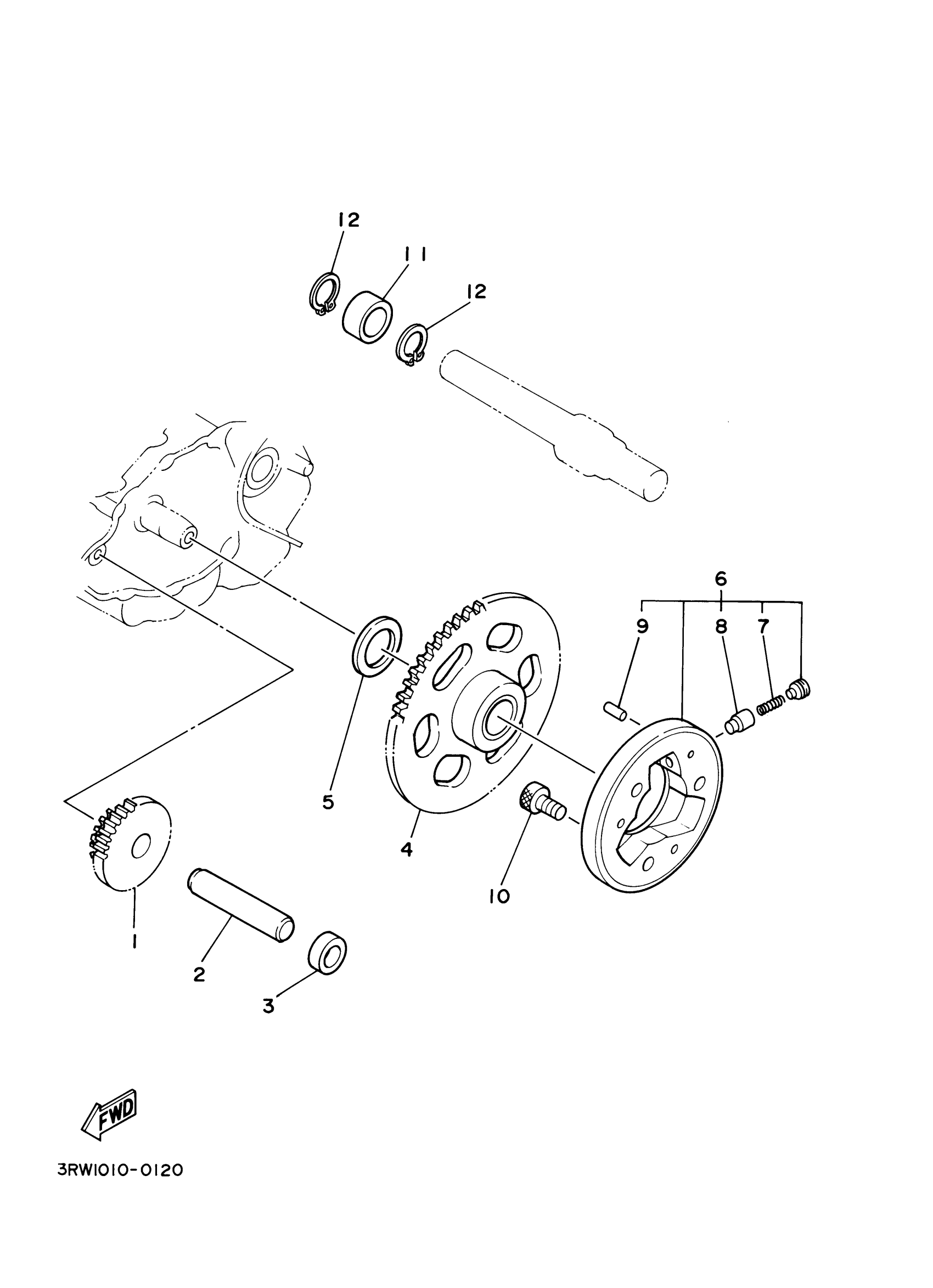

Yamaha TTR225RC (TTR225 CA) 5FGE 2003 STARTER CLUTCH Diagram

#

Description
Price

1

GEAR, IDLER 1

2HT-15512-00-00

Unavailable

2

SHAFT 1

5H0-15521-00-00

Unavailable

3

COLLAR(19W)

90387-125Y0-00

$16.99

4

GEAR, IDLER 2

4JG-15517-00-00

Unavailable

5

WASHER, PLATE(1FK)

90201-256K6-00

$3.50

6

STARTER CLUTCH OUTER ASSY

4H7-15580-10-00

$187.99

7

SPRING, COMPRESSION (4H7)

90501-04596-00

$9.49

8

CAP, STARTER CLUTCH

1J7-15583-01-00

$18.49

9

PIN,DOWEL(341)

93615-12088-00

$7.49

10

BOLT, SOCKET

91317-08020-00

$8.49

11

SPACER(3RW)

90560-17368-00

$7.49

12

CIRCLIP(1EY)

99009-17400-00

$4.73
