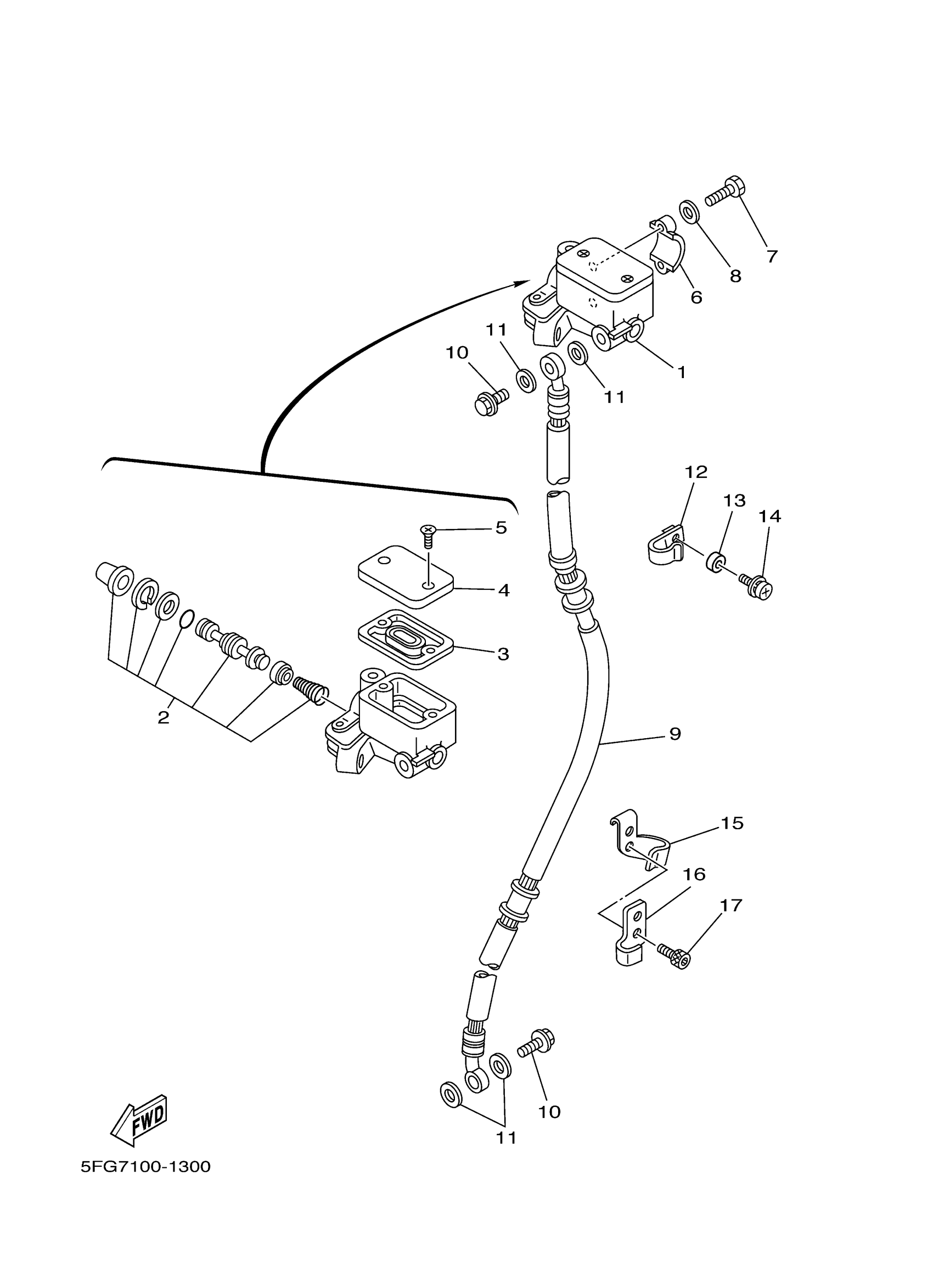

Yamaha TTR225RC (TTR225 CA) 5FGE 2003 FRONT MASTER CYLINDER Diagram

MASTER CYLINDER SUB ASSY

39F-25870-00-00

Unavailable

CYLINDER KIT, MASTER

56A-W0041-00-00

$69.99

DIAPHRAGM, RESERVOIR

4L0-25854-00-00

$27.99

CAP, RESERVOIR

4H7-25852-00-00

$39.99

SCREW, FLAT

98707-04012-00

$2.18

BRACKET, MASTER CYLINDER

4L0-25867-00-00

Unavailable

BOLT, HEXAGON

97017-06025-00

$4.24

WASHER(6TA)

92907-06600-00

$2.72

HOSE, BRAKE 1

3RW-25872-02-00

$167.99

BOLT, UNION(3GM)

90401-10159-00

$11.49

WASHER, PLATE

90201-10886-00

Unavailable

HOLDER, BRAKE HOSE 1

4BN-F5875-00-00

Unavailable

WASHER, SPECIAL

4AN-F1515-10-00

Unavailable

BOLT, FLANGE

95817-06025-00

Unavailable

HOLDER, CABLE 1

4BN-F3318-00-00

Unavailable

PLATE, SUPPORT

5FG-F332U-00-00

Unavailable

BOLT,SOCKET

91317-06012-00

Unavailable
