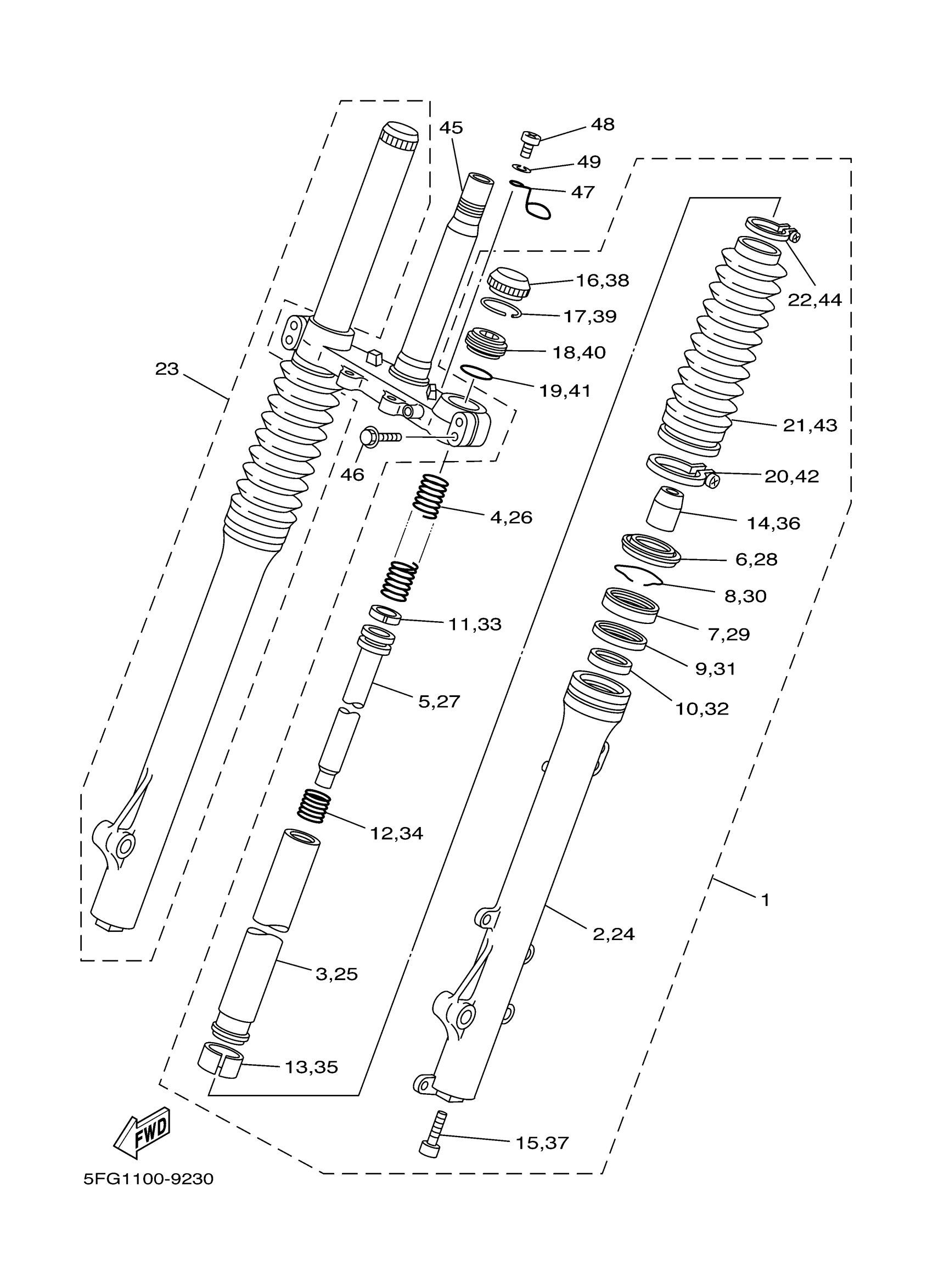

Yamaha TTR225RC (TTR225 CA) 5FGE 2003 FRONT FORK Diagram
#
1
FRONT FORK ASSY L.H
4VW-F3102-22-00
Unavailable
2
TUBE, OUTER (LEFT)
3RW-23126-00-00
Unavailable
3
.. INNER TUBE COMP 1
4VW-F3110-00-00
Unavailable
4
. SPRING
3RW-23351-00-00
Unavailable
5
. PISTON, FRONT FORK
3RW-23171-00-00
Unavailable
10
METAL, SLIDE 1
34X-23125-00-00
Unavailable
12
SPRING, REBOUND
34X-23151-00-00
Unavailable
16
CAP, FRONT FORK
35E-23168-00-00
Unavailable
17
CIRCLIP
35E-23183-00-00
Unavailable
18
BOLT, CAP
35E-23111-00-00
Unavailable
19
O-RING(1HX)
93210-24709-00
Unavailable
20
BAND
3RW-23192-00-00
Unavailable
21
. BOOT
2TW-F3191-L0-00
Unavailable
22
BAND
34X-23192-00-00
Unavailable
23
FRONT FORK ASSY R.H
4VW-F3103-22-00
Unavailable
24
TUBE, OUTER (RIGHT)
3RW-23136-00-00
Unavailable
25
.. INNER TUBE COMP 1
4VW-F3110-00-00
Unavailable
26
. SPRING
3RW-23351-00-00
Unavailable
27
. PISTON, FRONT FORK
3RW-23171-00-00
Unavailable
32
METAL, SLIDE 1
34X-23125-00-00
Unavailable
34
SPRING, REBOUND
34X-23151-00-00
Unavailable
38
CAP, FRONT FORK
35E-23168-00-00
Unavailable
39
CIRCLIP
35E-23183-00-00
Unavailable
40
BOLT, CAP
35E-23111-00-00
Unavailable
41
O-RING(1HX)
93210-24709-00
Unavailable
42
BAND
3RW-23192-00-00
Unavailable
43
. BOOT
2TW-F3191-L0-00
Unavailable
44
BAND
34X-23192-00-00
Unavailable
45
UNDER BRACKET COMP.
53V-23340-00-90
Unavailable
46
BOLT
4AN-F3346-10-00
Unavailable
47
GUIDE, CABLE
4AN-F331E-00-00
Unavailable
48
SCREW, PAN
98517-06012-00
Unavailable
49
WASHER, SPRING
92907-06100-00
Unavailable
