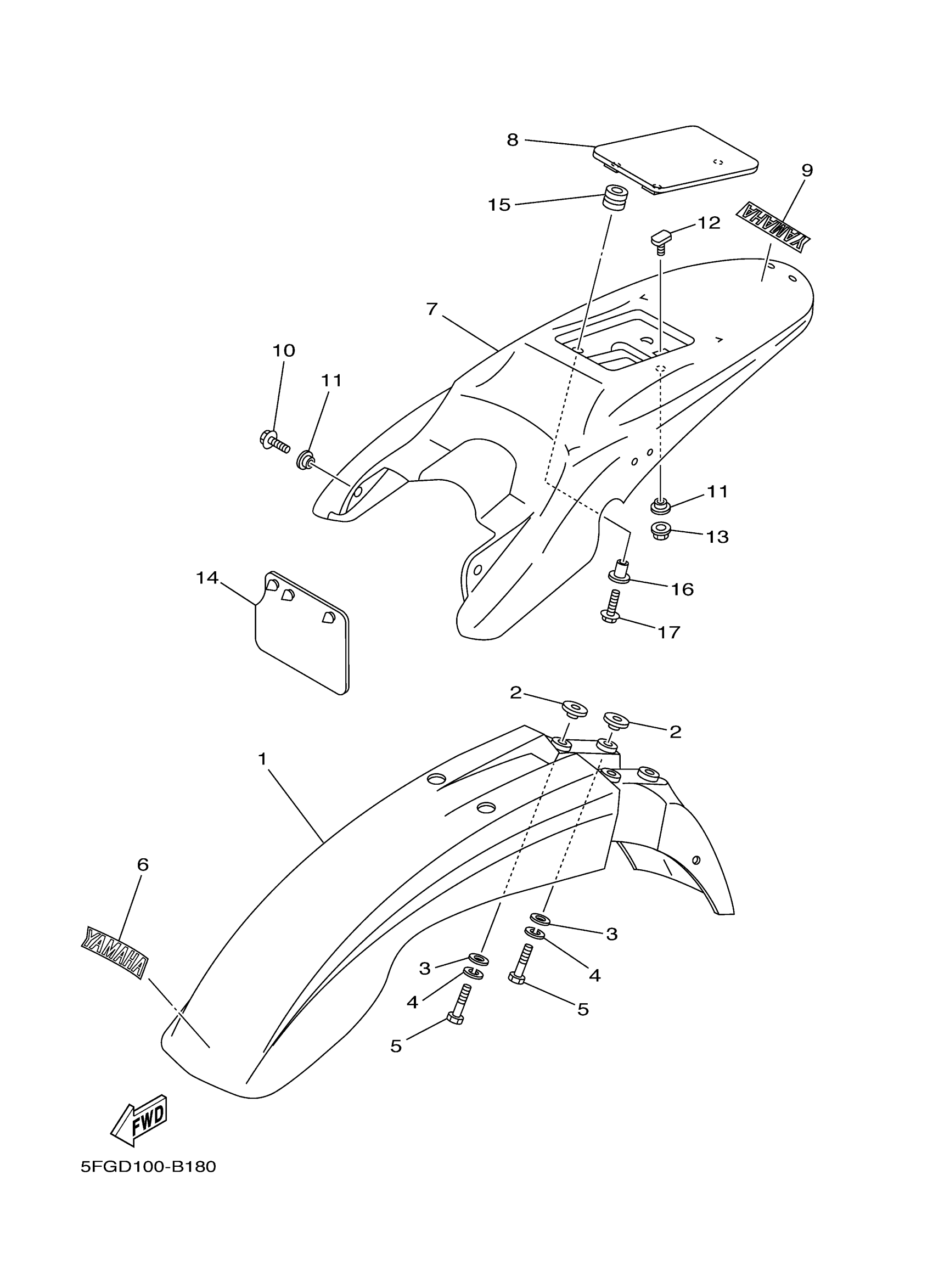

Yamaha TTR225RC (TTR225 CA) 5FGE 2003 FENDER Diagram
#
Description
Price
1
FRONT FENDER COMP. (DEEP PURPLISH BLUE SOLID E)
5FG-F1501-01-00
Unavailable
4
WASHER
9290M-06100-00
Unavailable
8
PLATE 1
5FG-F162G-00-00
Unavailable
14
FLAP
4AN-F1691-00-00
Unavailable
16
COLLAR
90387-06W53-00
Unavailable
17
BOLT, FLANGE
95817-06025-00
Unavailable
