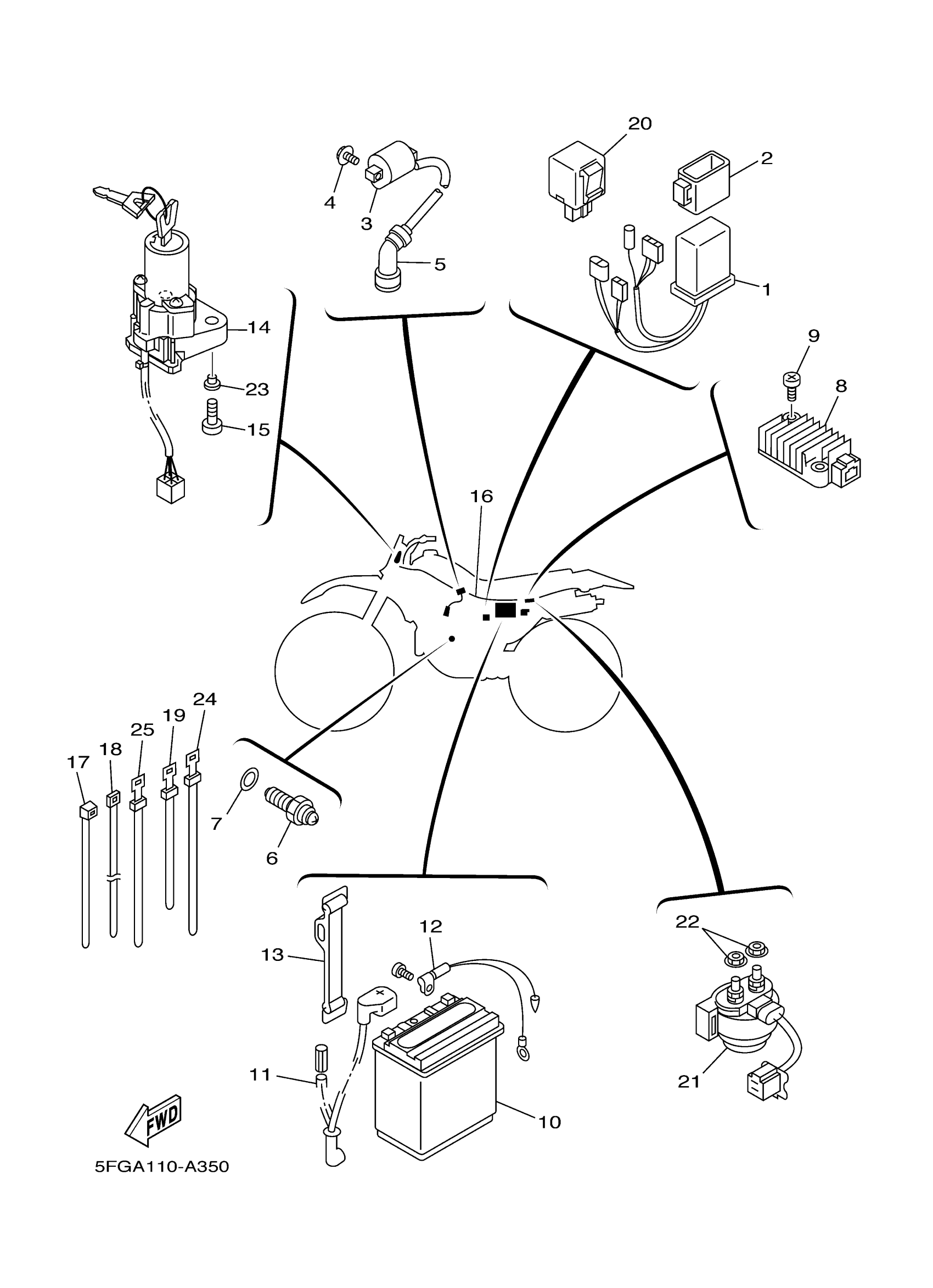

Yamaha TTR225RC (TTR225 CA) 5FGE 2003 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

3GX-85540-00-00

Unavailable

2

BAND

3RW-85546-00-00

$23.99

3

IGNITION COIL ASSY

3KJ-82310-13-00

$47.99

4

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

5

PLUG CAP ASSY

3NS-82370-00-00

$37.99

6

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

7

GASKET (1KH,1.0T)

90430-10148-00

$5.60

8

RECTIFIER & REGULATOR ASSY

3TJ-81960-02-00

Unavailable

9

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

10

YB7BB YUASA BATTERY

YB7-BB000-00-00

Unavailable

11

WIRE, PLUS LEAD

4VW-H2115-00-00

Unavailable

12

WIRE, MINUS LEAD

4VW-H2116-00-00

$16.99

13

BAND, BATERY

4VW-H2131-00-00

$5.60

14

MAIN SWITCH STEERING LOCK

4JG-82501-12-00

Unavailable

15

SCREW(1KT)

90149-06228-00

$9.49

16

WIRE HARNESS ASSY

5FG-H2590-00-00

Unavailable

17

CLAMP

90464-20258-00

Unavailable

18

BAND

1UA-82591-00-00

Unavailable

19

BAND, SWITCH CORD

437-83936-01-00

Unavailable

20

RELAY ASSY (5BT-00)

5BT-81950-00-00

Unavailable

21

STARTER RELAY ASSY (MS5D-611)

4KD-81940-00-00

Unavailable

22

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

23

COLLAR

90387-06W47-00

Unavailable

24

BAND, SWITCH CORD

5L9-H3936-00-00

Unavailable

25

BAND, SWITCH CORD

4AN-H3936-00-00

Unavailable
