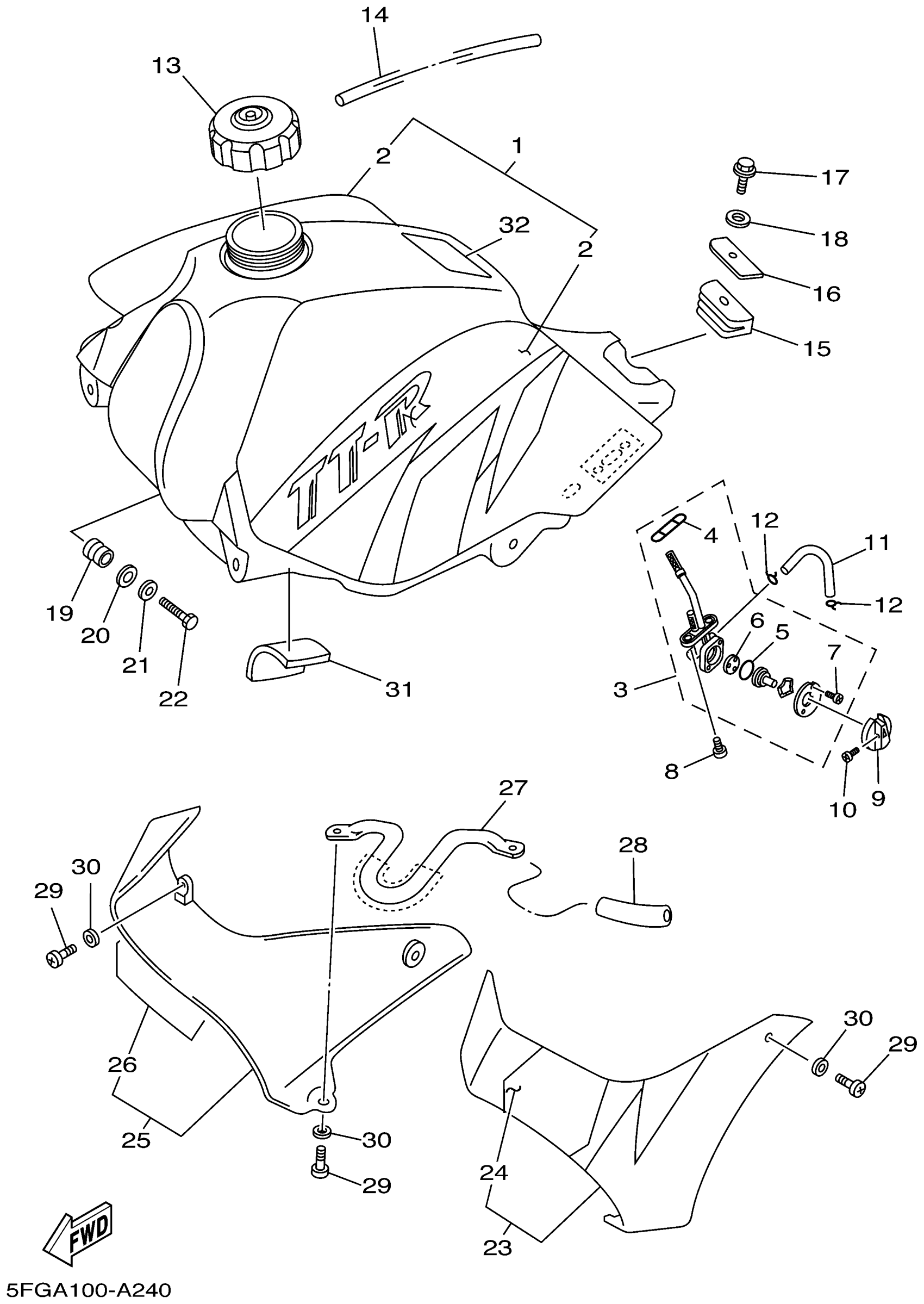

Yamaha TTR225PC (TTR225 CA) 5FGB 2002 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK ASSY

5FG-F4100-30-00

Unavailable

2

. GRAPHIC SET

5FG-F4240-30-00

Unavailable

3

FUEL COCK ASSY 1

3RW-24500-01-00

$81.99

4

O-RING

4X8-24512-00-00

$8.99

5

SEAL, COCK

3AJ-24534-01-00

$10.99

6

VALVE PACKING

3AC-24523-00-00

$12.99

7

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

8

SCREW 256241430000

90149-06011-00

$5.60

9

LEVER, COCK

1YH-F4524-00-00

Unavailable

10

SCREW, PAN HEAD(3AC)

98517-03008-00

$2.97

11

HOSE

90445-12W09-00

Unavailable

12

CLIP

90467-11W03-00

Unavailable

13

CAP ASY

5CH-F4610-00-00

Unavailable

14

HOSE

90445-09W01-00

Unavailable

15

DAMPER, LOCATING 2

4VW-F4182-00-00

Unavailable

16

WASHER, SPECIAL

4VW-F4186-00-00

Unavailable

17

BOLT, HEXAGON

97017-06020-00

Unavailable

18

WASHER

9290M-06100-00

Unavailable

19

GROMMET

90480-15W02-00

Unavailable

20

WASHER, SPECIAL

4LR-F4186-00-00

Unavailable

21

WASHER

9290M-06100-00

Unavailable

22

BOLT(21W)

97017-06035-00

Unavailable

23

SCOOP, AIR 1

4VW-F137W-30-00

Unavailable

24

. GRAPHIC 3

5FG-F174G-30-00

Unavailable

25

SCOOP, AIR 2

4VW-F137X-30-00

Unavailable

26

. GRAPHIC 4

5FG-F174H-30-00

Unavailable

27

BRACKET, COVER

4VW-F139T-00-00

Unavailable

28

DAMPER 2

4VW-F139U-01-00

Unavailable

29

SCREW, BINDING

98907-06012-00

Unavailable

30

WASHER(6TA)

92907-06200-00

Unavailable

31

DAMPER, PLATE 1

4VW-F414H-00-00

Unavailable

32

PLATE, EPA 3 (CALIFORNIA)

5FG-2179T-30-00

Unavailable
