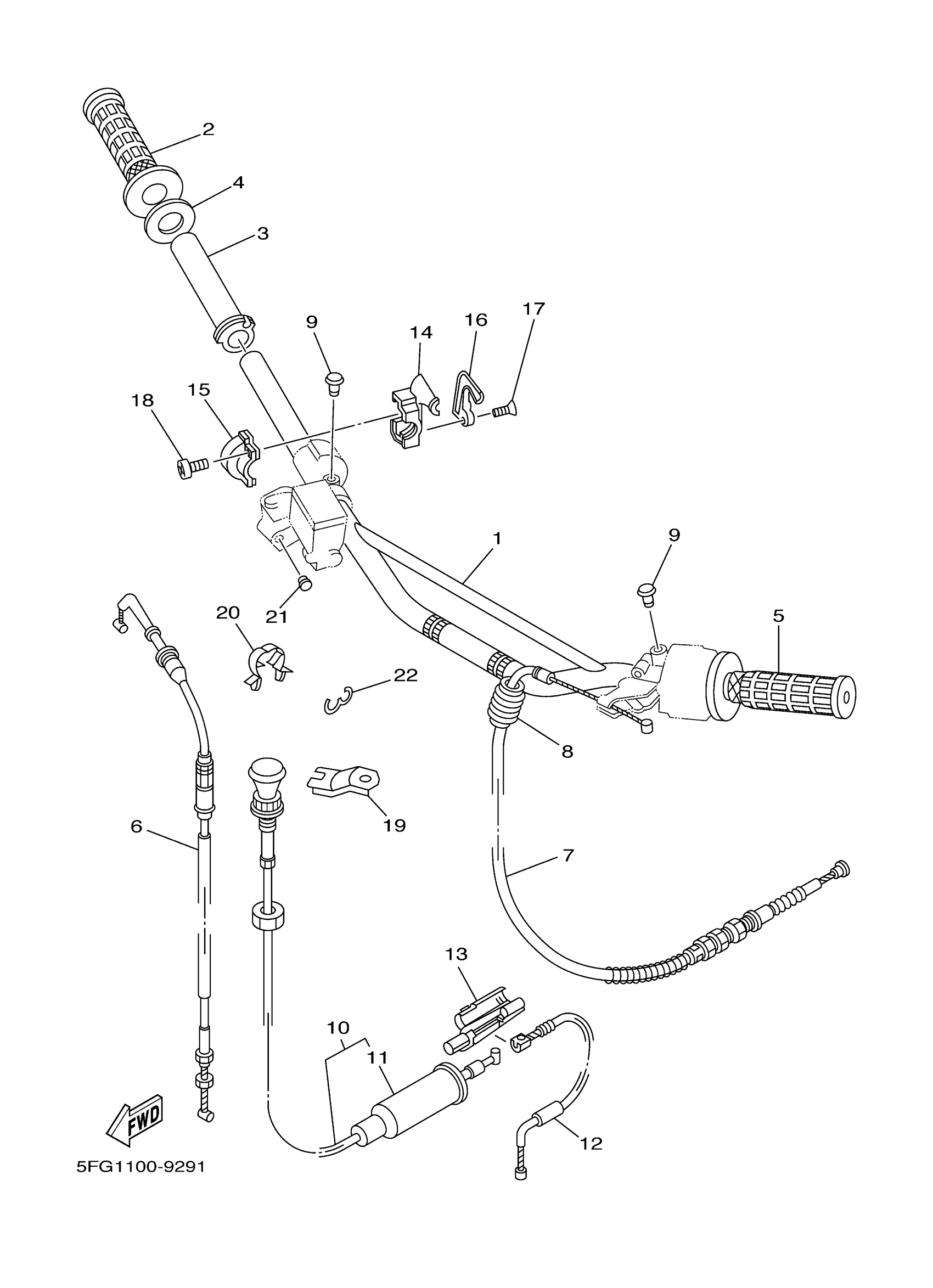

Yamaha TTR225NC (TTR225 CA) 5FG8 2001 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLEBAR

5FG-F6111-00-00

Unavailable

2

GRIP (R.H)

1LX-26242-01-00

$34.99

3

TUBE, THROTTLE GUIDE

434-26243-12-00

$27.99

4

RING, LEAF

1M1-26249-01-00

$7.99

5

GRIP (L.H)

1LX-26241-01-00

$33.99

6

CABLE, THROTTLE 1

3RW-26311-10-00

$75.99

7

CABLE, CLUTCH

4VW-F6335-10-00

Unavailable

8

BOOT

4FP-F6342-11-00

$1.92

9

PLUG (341-26329-00)

90338-09012-00

$9.49

10

STARTER CABLE ASSY

2TY-F6330-00-00

Unavailable

11

. CAP, RUBBER

2VG-F6329-00-00

Unavailable

12

CABLE, STARTER 2

3RW-26334-00-00

$32.99

13

CONNECTOR, CABLE

2TY-F6261-00-00

Unavailable

14

CAP, GRIP UPPER

38V-26281-00-98

Unavailable

15

CAP, GRIP UNDER (516)

493-26282-00-98

Unavailable

16

CAP, WIRE

38V-2628H-00-00

Unavailable

17

SCREW, FLAT

98707-04012-00

Unavailable

18

SCREW, PAN HEAD(JJ6)

98507-05016-00

Unavailable

19

HOLDER, WIRE

4BE-2637G-10-00

Unavailable

20

CLAMP(4GY)

90464-10193-00

Unavailable

21

CAP

2WL-F5825-00-00

Unavailable

22

CLIP (867)

90468-15020-00

Unavailable
