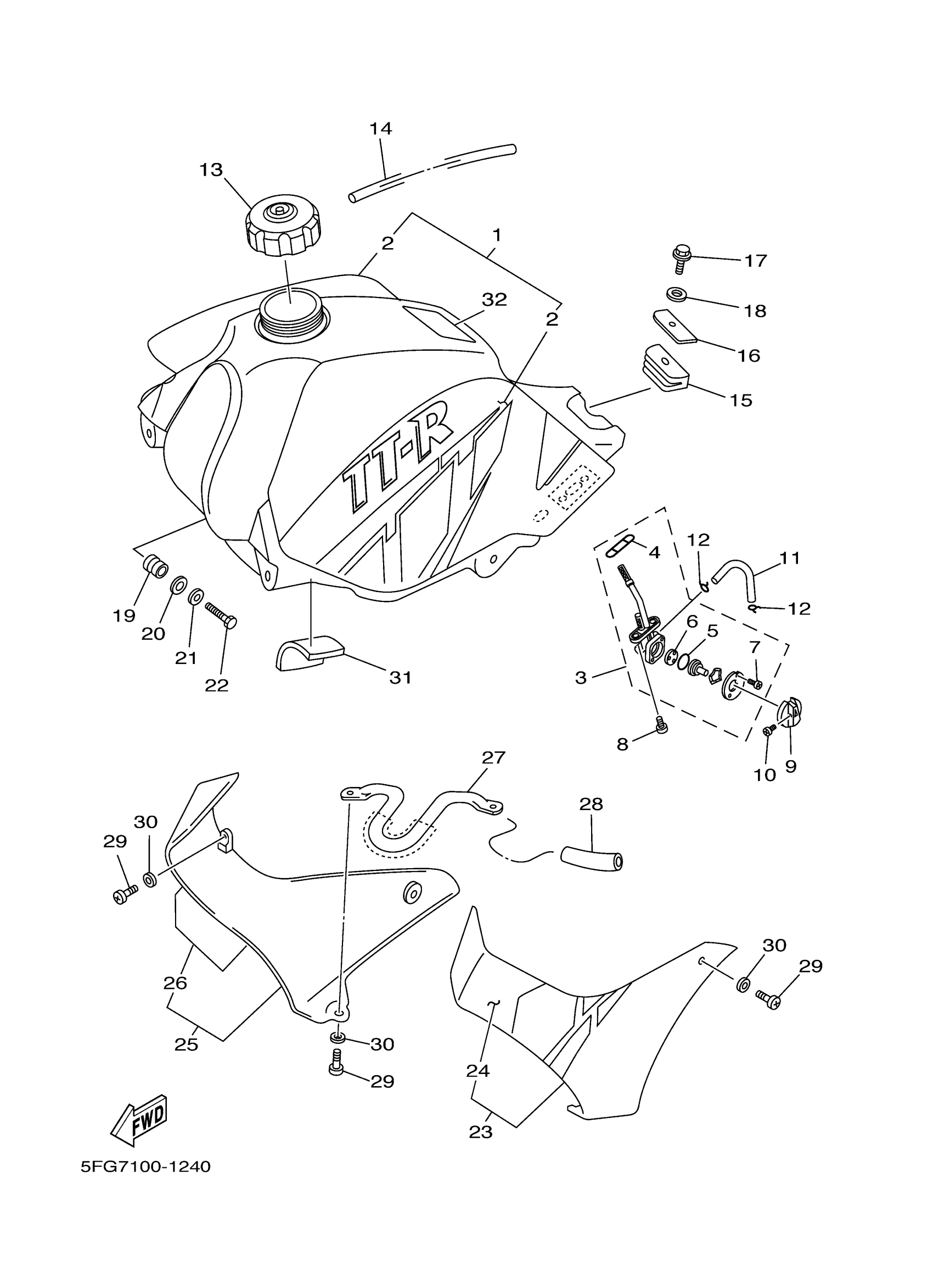

Yamaha TTR225NC (TTR225 CA) 5FG8 2001 FUEL TANK Diagram
#
Description
Price
1
FUEL TANK ASSY
5FG-F4100-20-00
Unavailable
2
. GRAPHIC SET
5FG-F4240-20-00
Unavailable
9
LEVER, COCK
1YH-F4524-00-00
Unavailable
11
HOSE
90445-12W09-00
Unavailable
12
CLIP
90467-11W03-00
Unavailable
13
CAP ASY
5CH-F4610-00-00
Unavailable
14
HOSE
90445-09W01-00
Unavailable
15
DAMPER, LOCATING 2
4VW-F4182-00-00
Unavailable
16
WASHER, SPECIAL
4VW-F4186-00-00
Unavailable
17
BOLT, HEXAGON
97017-06020-00
Unavailable
18
WASHER
9290M-06100-00
Unavailable
19
GROMMET
90480-15W02-00
Unavailable
20
WASHER, SPECIAL
4LR-F4186-00-00
Unavailable
21
WASHER
9290M-06100-00
Unavailable
22
BOLT(21W)
97017-06035-00
Unavailable
23
SCOOP, AIR 1
4VW-F137W-30-00
Unavailable
24
. GRAPHIC 3
5FG-F174G-20-00
Unavailable
25
SCOOP, AIR 2
4VW-F137X-30-00
Unavailable
26
. GRAPHIC 4
5FG-F174H-20-00
Unavailable
27
BRACKET, COVER
4VW-F139T-00-00
Unavailable
28
DAMPER 2
4VW-F139U-01-00
Unavailable
29
SCREW, BINDING
98907-06012-00
Unavailable
30
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
31
DAMPER, PLATE 1
4VW-F414H-00-00
Unavailable
32
PLATE, EPA 3 (CALIFORNIA)
5FG-2179T-20-00
Unavailable
