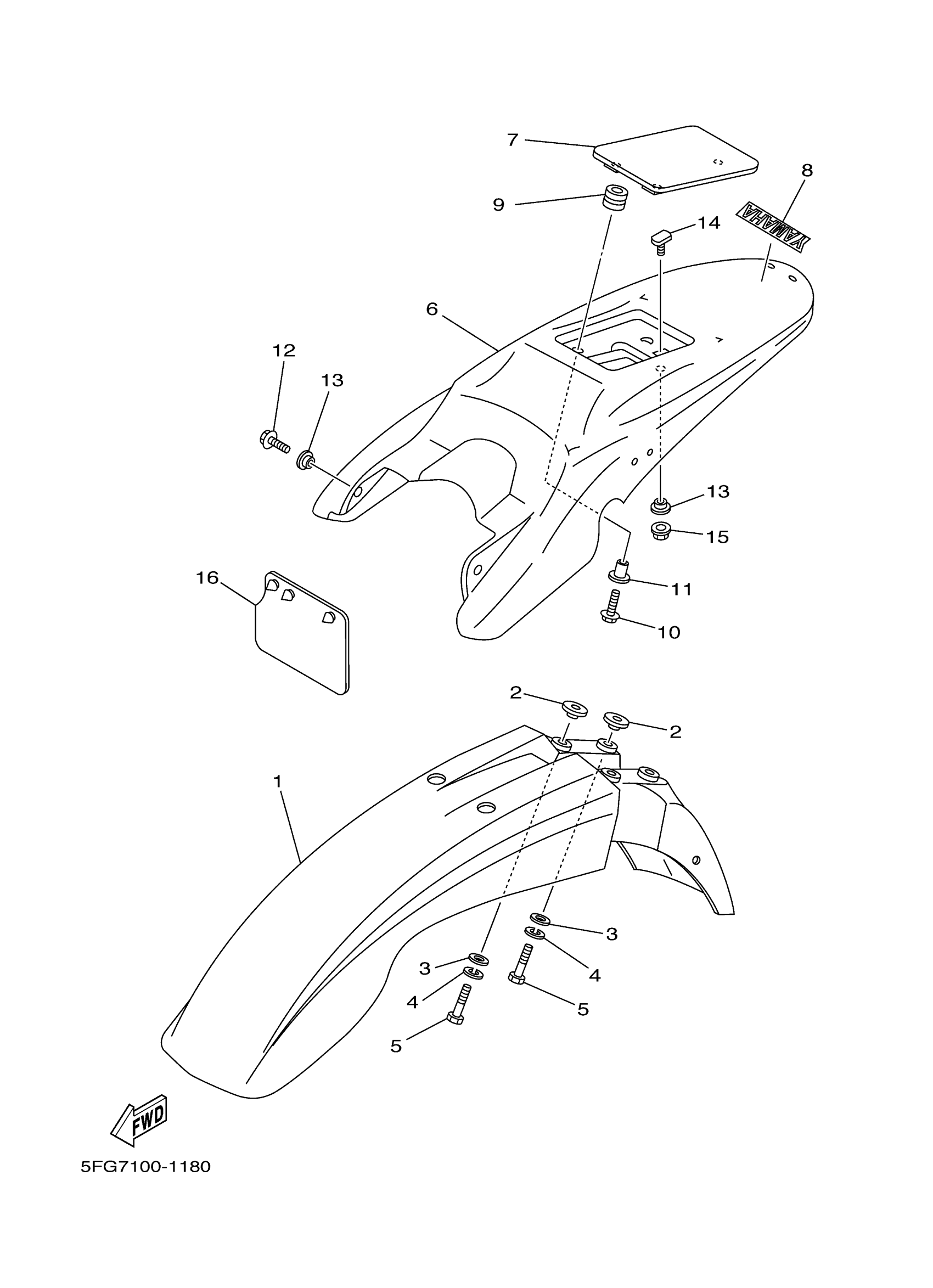

Yamaha TTR225NC (TTR225 CA) 5FG8 2001 FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP. (DEEP PURPLISH BLUE SOLID E)

5FG-F1501-01-00

Unavailable

2

COLLAR (8G8)

90387-06681-00

$9.49

3

WASHER, PLATE (4L0)

90201-062A8-00

$8.49

4

WASHER

9290M-06100-00

Unavailable

5

BOLT

9702M-06030-00

Unavailable

6

REAR FENDER ASSY DPBSE

4VW-F1611-20-00

$45.99

7

PLATE 1

5FG-F162G-00-00

Unavailable

8

EMBLEM, YAMAHA

99241-00080-00

$13.99

9

GROMMET 839774310000

90480-14023-00

$7.49

10

BOLT, FLANGE

95817-06025-00

Unavailable

11

COLLAR

90387-06158-00

$8.49

12

BOLT, FLANGE

95817-06016-00

$2.75

13

COLLAR

90387-06158-00

$8.49

14

BOLT(55T)

90109-064A5-00

$3.71

15

NUT, FLANGE(4MV)

95707-06500-00

$1.23

16

FLAP

4AN-F1691-00-00

Unavailable
