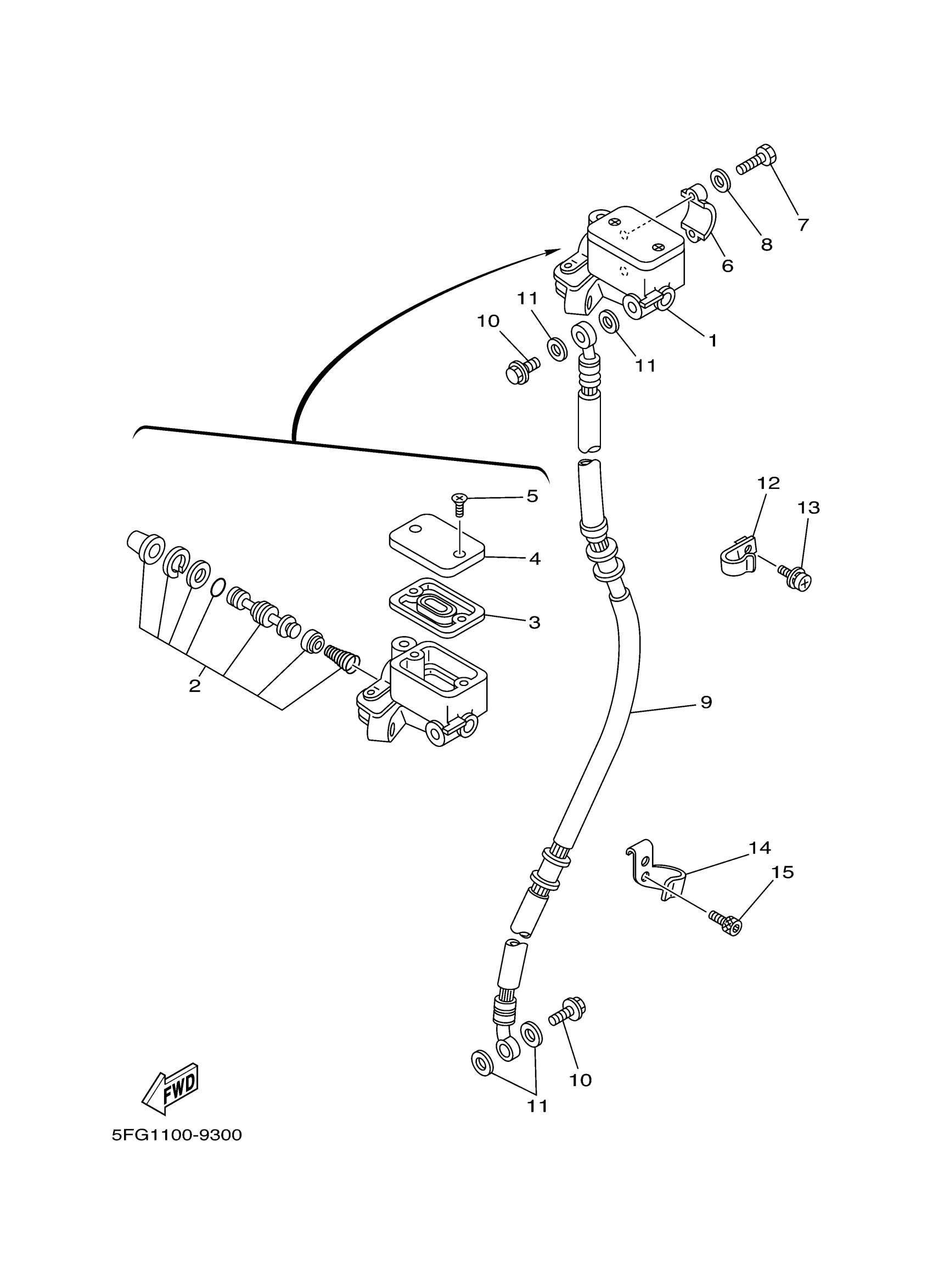

Yamaha TTR225MC (TTR225 CA) 5FG5 2000 FRONT MASTER CYLINDER Diagram

MASTER CYLINDER SUB ASSY

39F-25870-00-00

Unavailable

CYLINDER KIT, MASTER

56A-W0041-00-00

$56.31

DIAPHRAGM, RESERVOIR

4L0-25854-00-00

$20.32

CAP, RESERVOIR

4H7-25852-00-00

$33.30

SCREW, FLAT

98707-04012-00

$1.34

BRACKET, MASTER CYLINDER

4L0-25867-00-00

Unavailable

BOLT, HEXAGON

97017-06025-00

$2.78

WASHER(6TA)

92907-06600-00

$0.73

HOSE, BRAKE 1

3RW-25872-02-00

$85.05

BOLT, UNION(3GM)

90401-10159-00

$8.26

WASHER, PLATE

90201-10886-00

Unavailable

HOLDER, BRAKE HOSE 1

4BN-F5875-00-00

Unavailable

BOLT, WITH WASHER(8V7)

90119-06108-00

$6.22

HOLDER, CABLE 1

4BN-F3318-00-00

Unavailable

BOLT,SOCKET

91317-06010-00

$6.45
