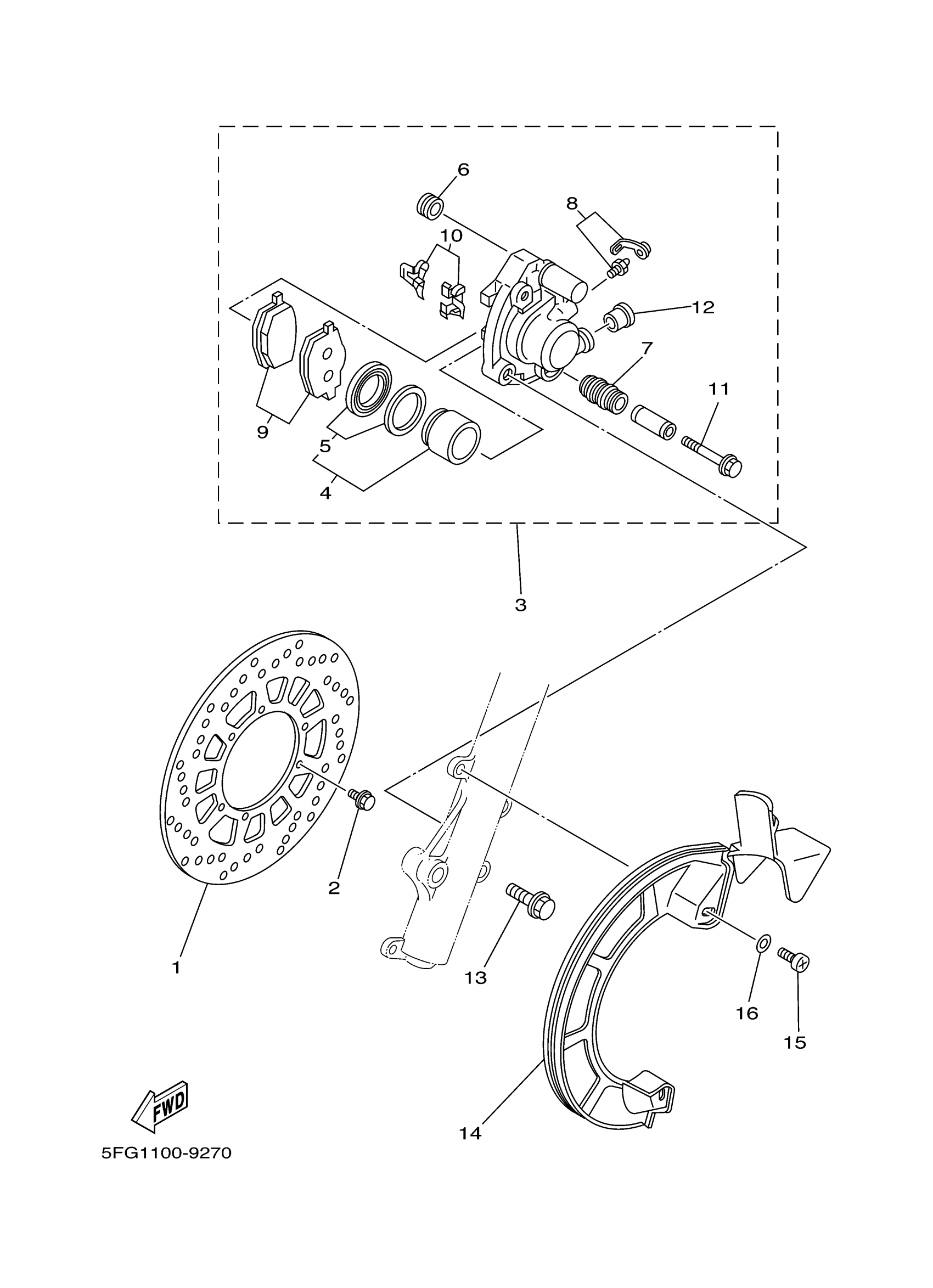

Yamaha TTR225MC (TTR225 CA) 5FG5 2000 FRONT BRAKE CALIPER Diagram

Description

Price

DISC, BRAKE (LEFT)

5XT-2582T-00-00

$92.99

BOLT, FLANGE

90105-06109-00

$9.49

CALIPER ASSY (LEFT)

3BN-2580T-11-00

Unavailable

PISTON ASSY, CALIPER

34X-W0057-00-00

$128.99

CALIPER SEAL KIT

34X-W0047-00-00

$45.99

BOOT 2

5R2-25937-00-00

$37.99

BOOT 2

34X-25937-00-00

$31.99

BLEED SCREW KIT

15B-W0048-00-00

$19.99

BRAKE PAD KIT

3BN-25805-02-00

$37.99

SUPPORT, PAD

34X-25919-00-00

Unavailable

BOLT

5KN-25926-01-00

$8.99

CAP, INDICATOR

34X-25845-00-00

$16.49

BOLT, WASHER BASED(3VD)

90105-10638-00

$7.49

PROTECTOR, BRAKE DISC DPBS.E

4AN-F5715-20-00

$17.99

SCREW, BINDING

98907-06016-00

$9.49

WASHER, PLATE (4L0)

90201-062A8-00

Unavailable
