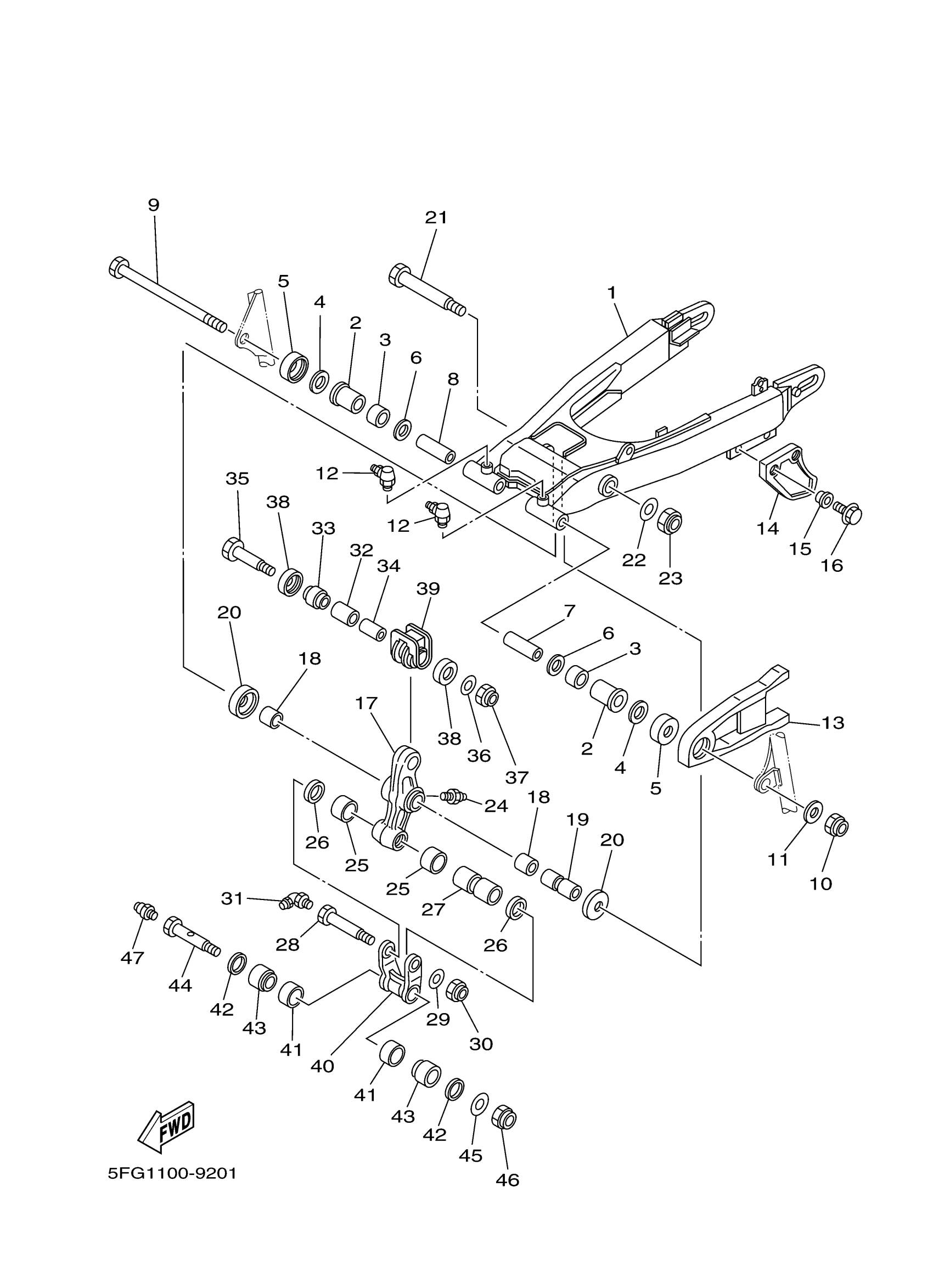

Yamaha TTR225LC (TTR225 CA) 5FG2 1999 REAR ARM Diagram
#
1
REAR ARM COMP.
4VW-F2110-10-35
Unavailable
4
SHIM
5L9-F2127-00-00
Unavailable
7
COLLAR(1KH)
90387-121N2-00
Unavailable
8
COLLAR (10V)
90387-127F2-00
Unavailable
9
SHAFT, PIVOT
34X-22141-00-00
Unavailable
13
SEAL, GUARD
1KH-22151-00-00
Unavailable
16
BOLT, HEXAGON
97017-06020-00
Unavailable
17
ARM, RELAY
3RW-2217A-00-00
Unavailable
18
BUSH (30X)
90386-20120-00
Unavailable
19
COLLAR (30X)
90387-140J9-00
Unavailable
20
COVER, THRUST 1
4AN-F2128-00-00
Unavailable
21
BOLT, WASHER BASED(3RW)
90105-12668-00
Unavailable
22
WASHER, PLATE (35T)
90201-122H1-00
Unavailable
23
NUT, U (4PM)
95617-12100-00
Unavailable
24
NIPPLE, GREASE
93700-06M03-00
Unavailable
25
BUSH (26H)
90386-18115-00
Unavailable
27
COLLAR (38M)
90387-126J8-00
Unavailable
28
BOLT (30X)
90109-10752-00
Unavailable
29
WASHER, PLATE(6TC)
90201-10M05-00
Unavailable
30
NUT, SELF LOCKING (23X)
90185-10120-00
Unavailable
32
BUSH, SOLID (22W)
90380-16109-00
Unavailable
33
BUSH 2
22W-22124-00-00
Unavailable
34
COLLAR (22W)
90387-106G0-00
Unavailable
35
BOLT (22W)
90109-10689-00
Unavailable
36
WASHER, PLATE(6TC)
90201-10M05-00
Unavailable
37
NUT, SELF LOCKING (23X)
90185-10120-00
Unavailable
38
COVER, THRUST 2
22W-22129-00-00
Unavailable
39
BOOT, RUBBER
4AN-F2189-00-00
Unavailable
40
ROD, CONNECTING 1
1KH-2217F-00-00
Unavailable
41
BUSH (26H)
90386-18115-00
Unavailable
43
COLLAR(38W)
90387-121L6-00
Unavailable
44
BOLT (30X)
90109-10752-00
Unavailable
45
WASHER, PLATE(6TC)
90201-10M05-00
Unavailable
46
NUT, SELF LOCKING (23X)
90185-10120-00
Unavailable
47
NIPPLE, GREASE
93700-06M03-00
Unavailable
