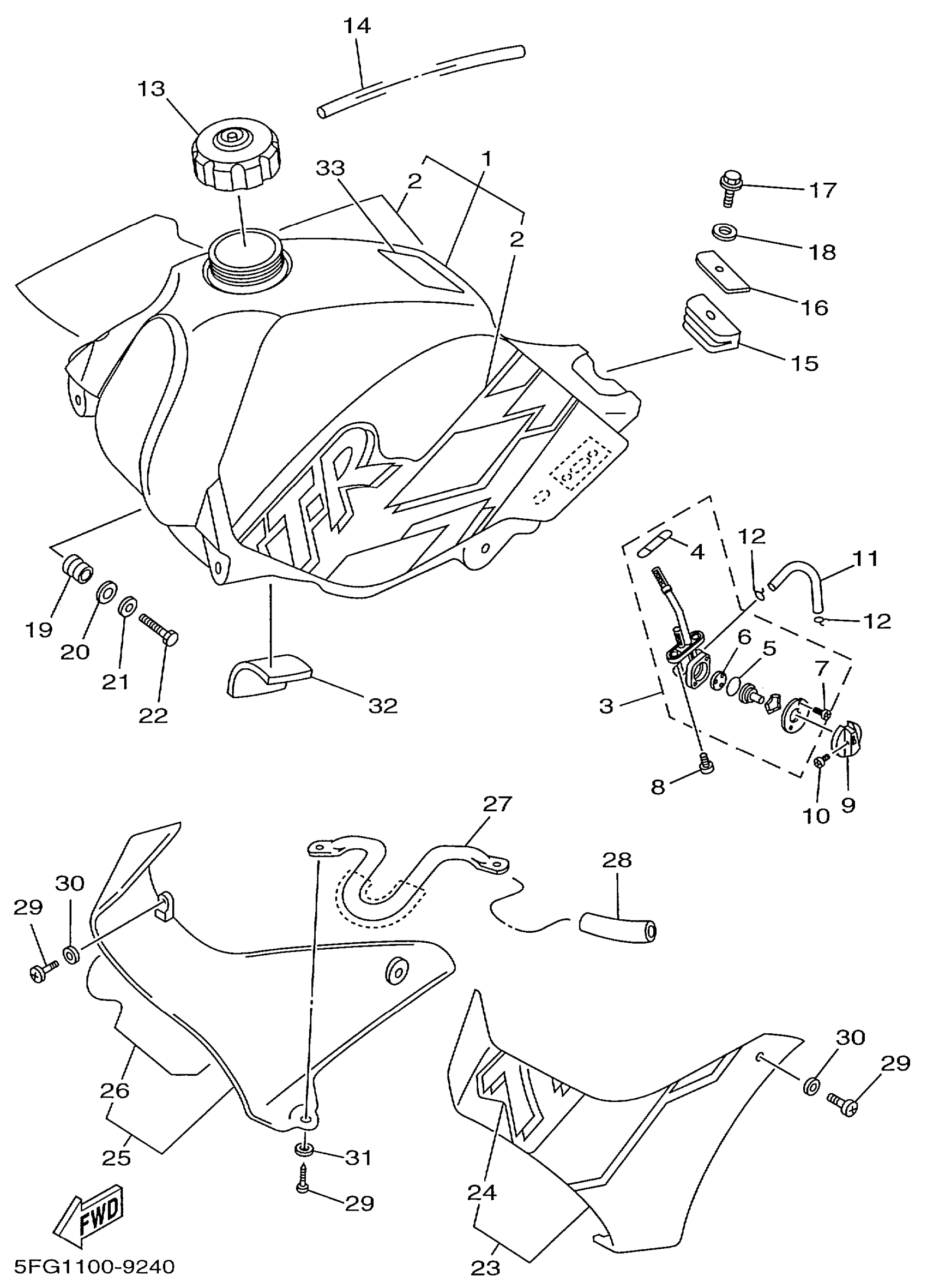

Yamaha TTR225LC (TTR225 CA) 5FG2 1999 FUEL TANK Diagram

FUEL TANK ASSEMBLY

5FG-F4100-00-00

Unavailable

. GRAPHIC SET

5FG-24240-00-00

Unavailable

FUEL COCK ASSY 1

3RW-24500-01-00

$81.99

O-RING

4X8-24512-00-00

$8.99

SEAL, COCK

3AJ-24534-01-00

$10.99

VALVE PACKING

3AC-24523-00-00

$12.99

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

SCREW 256241430000

90149-06011-00

$5.60

LEVER, COCK

1YH-F4524-00-00

Unavailable

SCREW, PAN HEAD(3AC)

98517-03008-00

$2.97

HOSE

90445-09W03-00

Unavailable

CLIP

90467-09W02-00

Unavailable

CAP ASY

5CH-F4610-00-00

Unavailable

HOSE

90445-09W01-00-00

Unavailable

DAMPER, LOCATING 2

4VW-F4182-00-00

Unavailable

WASHER, SPECIAL

4VW-F4186-00-00

Unavailable

BOLT, HEXAGON

97017-06020-00

Unavailable

WASHER

9290M-06100-00

Unavailable

GROMMET

90480-15W02-00

Unavailable

WASHER, SPECIAL

4LR-F4186-00-00

Unavailable

WASHER

9290M-06100-00

Unavailable

BOLT(21W)

97017-06035-00

Unavailable

SCOOP, AIR 1

4VW-F137W-30-00

Unavailable

. GRAPHIC 3

5FG-2174G-00-00

Unavailable

SCOOP, AIR 2

4VW-F137X-30-00

Unavailable

. GRAPHIC 4

5FG-2174H-00-00

Unavailable

BRACKET, COVER

4VW-F139T-00-00

Unavailable

DAMPER 2

4VW-F139U-01-00

Unavailable

SCREW, BINDING

98907-06012-00

Unavailable

WASHER(6TA)

92907-06200-00

Unavailable

WASHER, PLATE (4L0)

90201-062A8-00

Unavailable

DAMPER, PLATE 1

4VW-F414H-00-00

Unavailable

PLATE, EPA 3 (CALIFORNIA)

5FG-2179T-20-00

Unavailable
