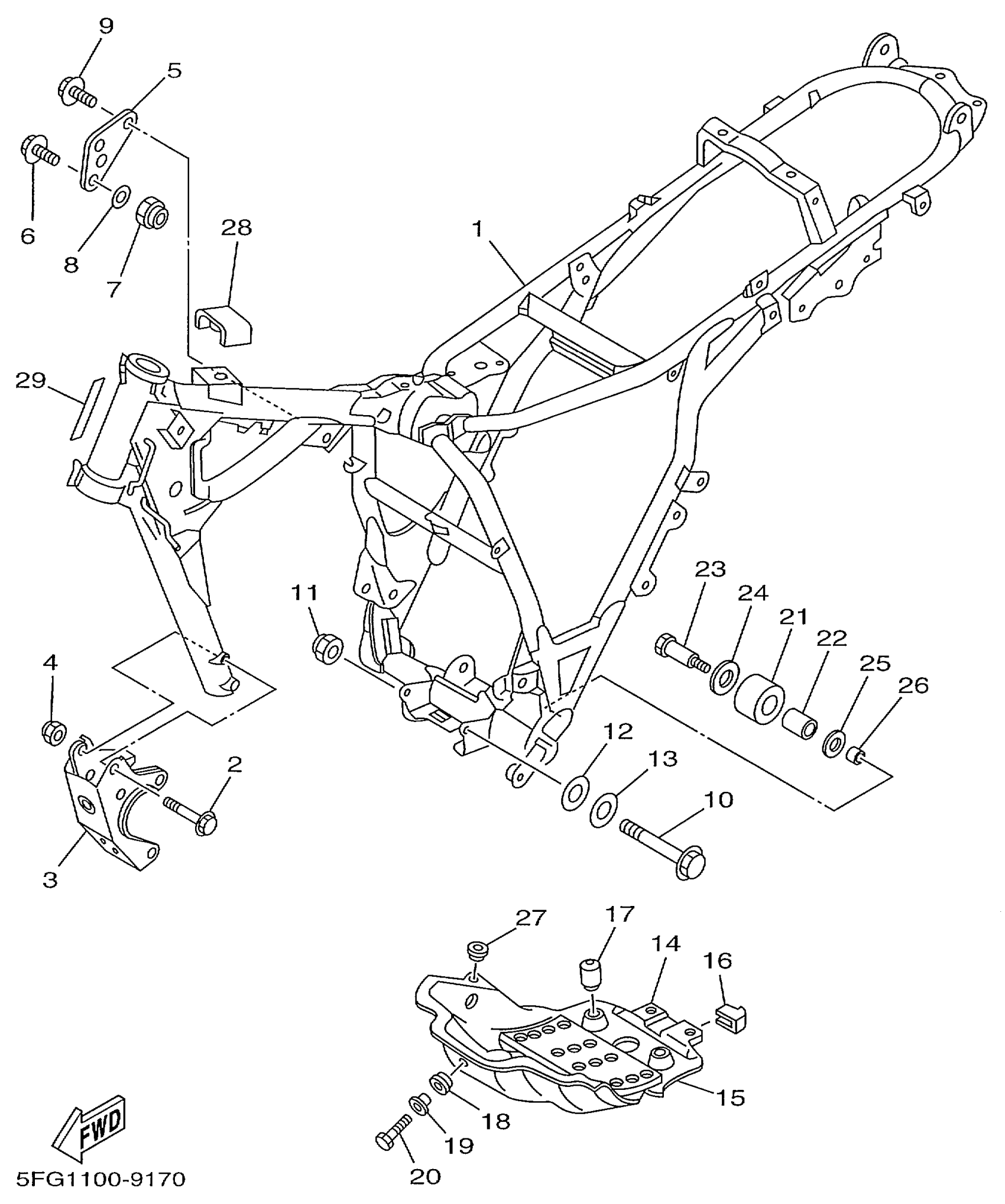

Yamaha TTR225LC (TTR225 CA) 5FG2 1999 FRAME Diagram

#

Description
Price

1

FRAME COMP.

4VW-F1110-00-00

Unavailable

2

BOLT, WASHER BASED

90105-084A1-00

$10.49

3

STAY, ENGINE 3

3RW-21316-01-WL

Unavailable

4

NUT, SELF-LOCKING

90185-08169-00

$8.49

5

STAY, ENGINE 2

1KH-21315-01-00

Unavailable

6

BOLT, FLANGE

95817-08050-00

$2.44

7

NUT, SELF-LOCKING

90185-08169-00

$8.49

8

WASHER, PLATE (33N)

90201-094G1-00

$9.49

9

BOLT WASHER BASED (1J7)

90105-08066-00

Unavailable

10

BOLT

90105-08024-00

$7.49

11

NUT, SELF-LOCKING

90185-08169-00

$8.49

12

WASHER, PLATE (33N)

90201-094G1-00

$9.49

13

WASHER, BELLEVILLE

92907-08800-00

Unavailable

14

PROTECTOR, ENGINE

4VW-21471-00-00

Unavailable

15

DAMPER, RUBBER 1

1KH-21485-00-00

Unavailable

16

DAMPER, RUBBER 1

36X-21485-00-00

Unavailable

17

DAMPER, RUBBER 1

34L-21485-00-00

Unavailable

18

GROMMET 839774310000

90480-14023-00

Unavailable

19

COLLAR 437216330000

90387-07391-00

Unavailable

20

BOLT, HEXAGON

97017-06025-00

Unavailable

21

TENSIONER

30X-22178-00-00

Unavailable

22

BUSH

4V4-22184-00-00

Unavailable

23

BOLT (23X)

90109-08705-00

Unavailable

24

WASHER, PLATE(3RR)

90201-133P2-00

Unavailable

25

WASHER, PLATE(8AT)

90201-081R9-00

Unavailable

26

COLLAR (7R4)

90387-085E1-00

Unavailable

27

SEAL, RIGHT SIDE COVER

2J5-21732-00-00

Unavailable

28

DAMPER, LOCATING 5

4LR-F4185-00-00

Unavailable

29

PLATE, EPA

5FG-2179X-00-00

Unavailable
