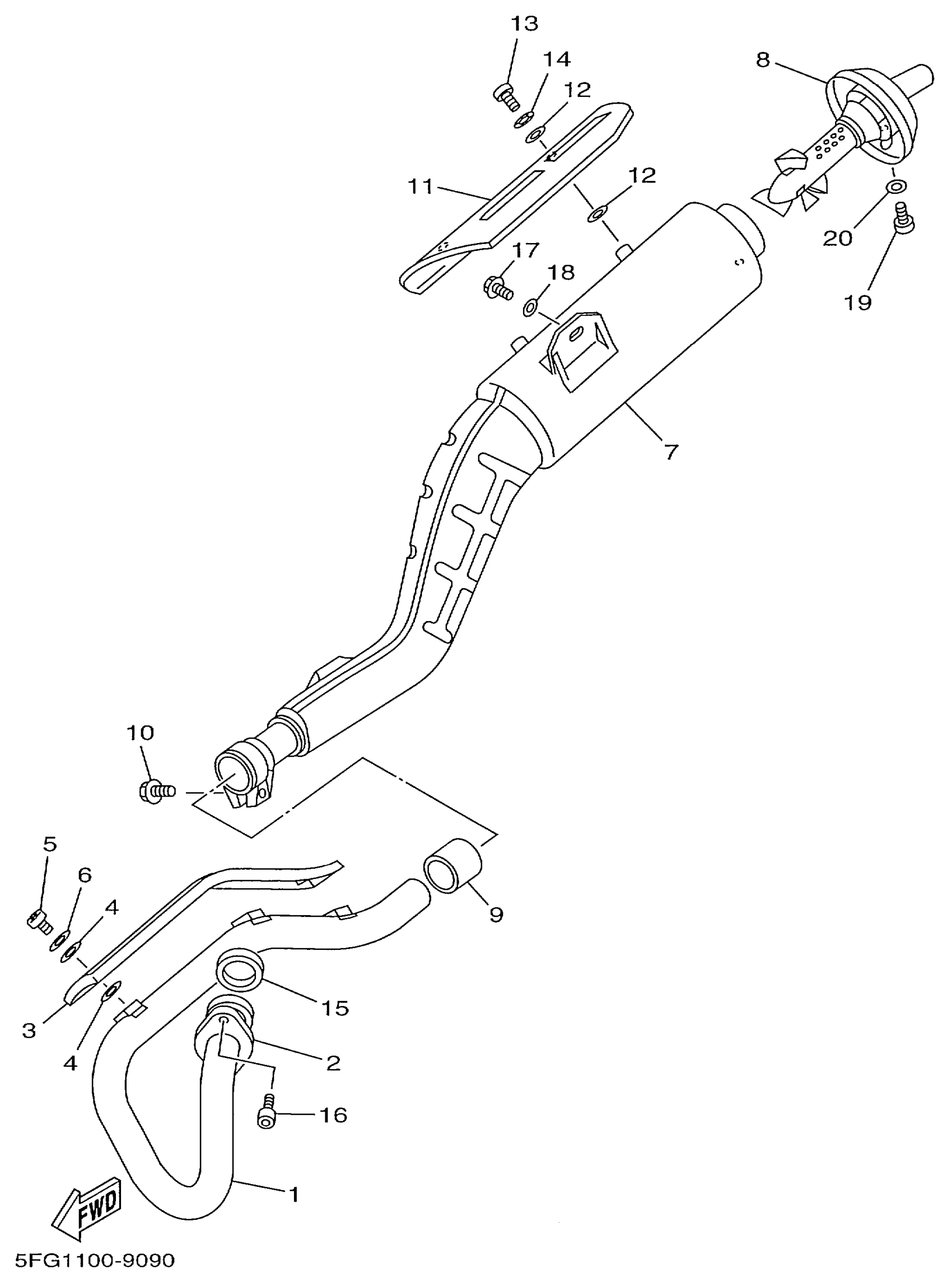

Yamaha TTR225LC (TTR225 CA) 5FG2 1999 EXHAUST Diagram

PIPE, EXHAUST 1

3RW-14611-00-00

Unavailable

NUT, RING

5H0-14612-01-00

$16.49

PROTECTOR, EXHAUST PIPE

3RW-14628-00-00

Unavailable

WASHER, PROTECTOR

4BD-14766-00-00

$5.49

SCREW, BINDING

98907-06010-00

$1.65

WASHER, WAVE(3RW)

90206-06090-00

$8.49

MUFFLER 1

5FG-14711-00-00

Unavailable

PIPE, OUTLET

1RH-14752-01-00

$141.99

GASKET, MUFFLER

3YF-14714-00-00

$36.99

BOLT, FLANGE(4MY)

95027-08025-00

$9.49

PROTECTER,MUFF 2

4VW-E4728-20-00

Unavailable

WASHER, PROTECTOR

4BD-14766-00-00

$5.49

SCREW, BINDING

98907-06010-00

$1.65

WASHER, WAVE(3RW)

90206-06090-00

$8.49

GASKET, EXHAUST PIPE

4BE-14613-00-00

$9.99

BOLT,SOCKET

91317-06020-00

Unavailable

BOLT(2KF)

90109-085E2-00

Unavailable

WASHER (853)

90201-08326-00

Unavailable

SCREW, PAN

98507-06010-00

Unavailable

WASHER(6TA)

92907-06600-00

Unavailable
