Description

Price

1

C.D.I. UNIT ASSY

3GX-85540-00-00

Unavailable

2

BAND

3RW-85546-00-00

$23.99

3

IGNITION COIL ASSY

3KJ-82310-13-00

$47.99

4

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

5

PLUG CAP ASSY

3NS-82370-00-00

$37.99

6

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

7

GASKET (1KH,1.0T)

90430-10148-00

$5.60

8

RECTIFIER & REGULATOR ASSY

3TJ-81960-02-00

Unavailable

9

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

10

YB7BB YUASA BATTERY

YB7-BB000-00-00

Unavailable

11

WIRE, PLUS LEAD

4VW-H2115-00-00

Unavailable

12

WIRE, MINUS LEAD

4VW-H2116-00-00

$16.99

13

BAND, BATERY

4VW-H2131-00-00

$5.60

14

MAIN SWITCH STEERING LOCK

4JG-82501-12-00

Unavailable

15

SCREW(1KT)

90149-06228-00

$9.49

16

WIRE HARNESS ASSEMBLY

5CF-H2590-00-00

Unavailable

17

CLAMP

90464-20258-00

Unavailable

18

BAND

1UA-82591-00-00

Unavailable

19

BAND, SWITCH CORD

437-83936-01-00

Unavailable

20

RELAY ASSY (5BT-00)

5BT-81950-00-00

Unavailable

21

STARTER RELAY ASSY (MS5D-611)

4KD-81940-00-00

Unavailable

22

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

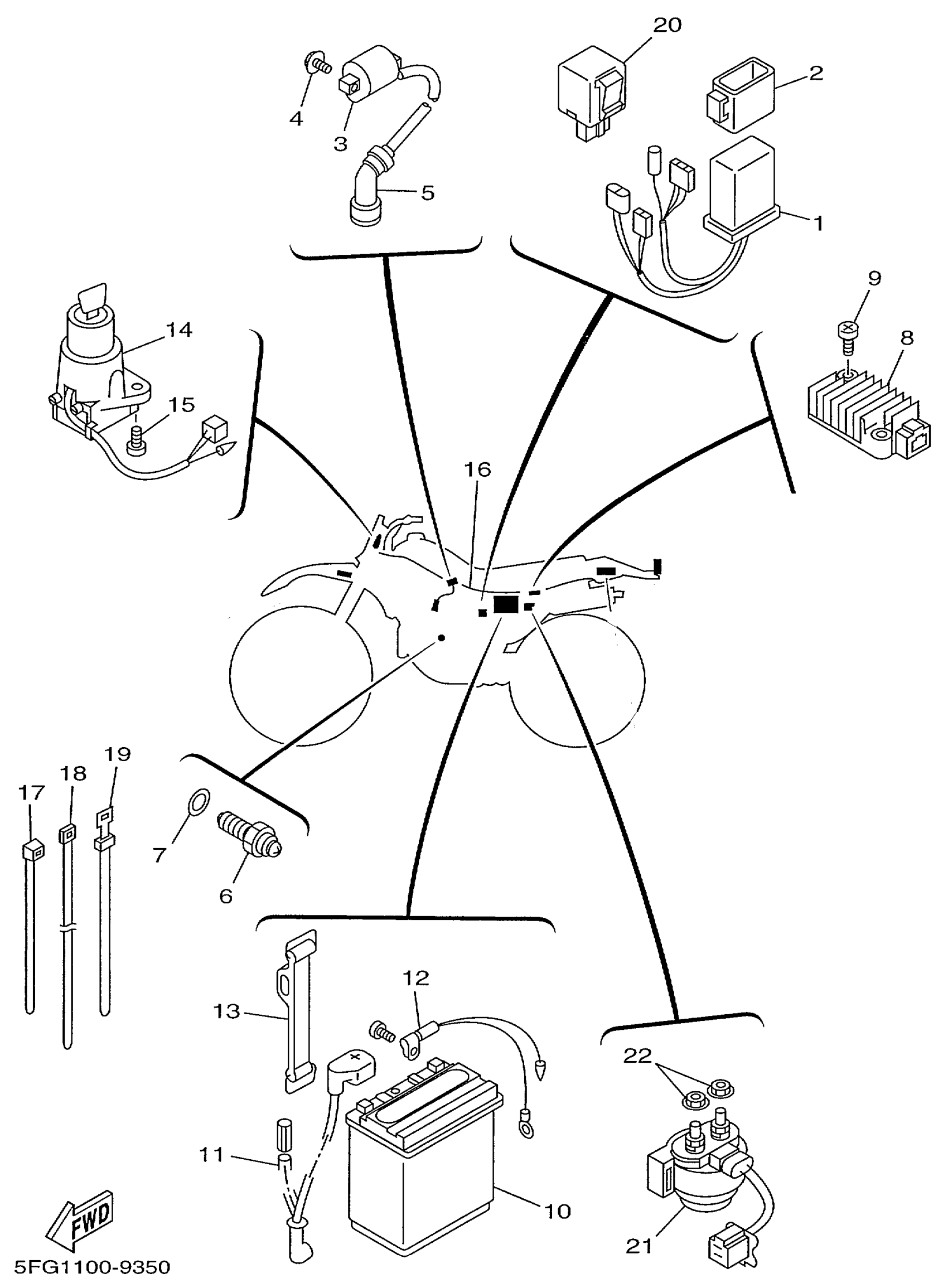

Yamaha TTR225LC (TTR225 CA) 5FG2 1999 ELECTRICAL 1 Diagram

C.D.I. UNIT ASSY

BAND

IGNITION COIL ASSY

SCREW, PAN HEAD(3TJ)

PLUG CAP ASSY

NEUTRAL SWITCH ASSY

GASKET (1KH,1.0T)

RECTIFIER & REGULATOR ASSY

SCREW, PAN HEAD (76T)

YB7BB YUASA BATTERY

WIRE, PLUS LEAD

WIRE, MINUS LEAD

BAND, BATERY

MAIN SWITCH STEERING LOCK

SCREW(1KT)

WIRE HARNESS ASSEMBLY

CLAMP

BAND

BAND, SWITCH CORD

RELAY ASSY (5BT-00)

STARTER RELAY ASSY (MS5D-611)

NUT, FLANGE(4MV)
