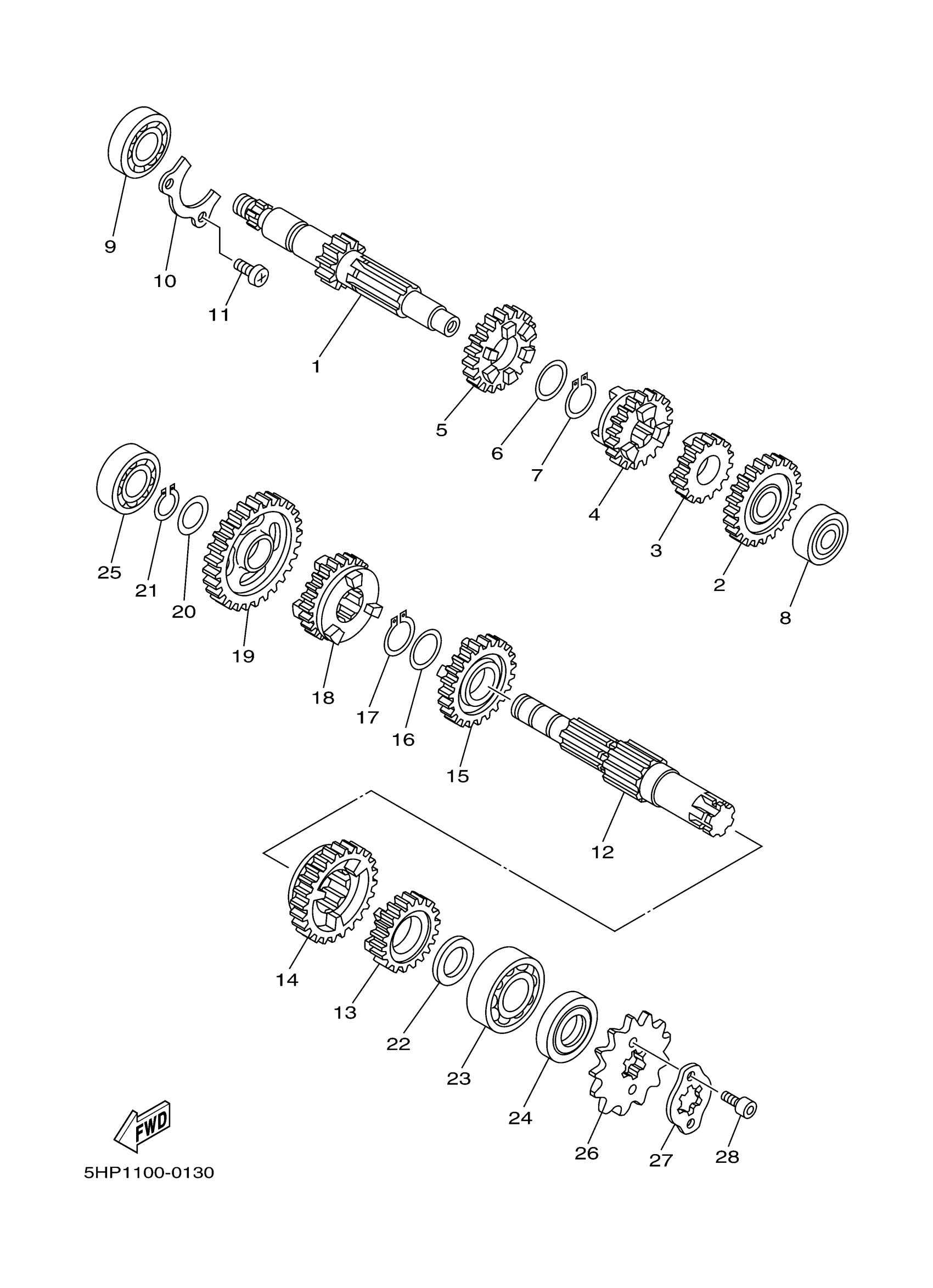

Yamaha TTR125S (TT-R125) 5HPP 2004 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

5AP-17411-00-00

$181.99

2

GEAR, 5TH PINION (24T)

5AP-17151-00-00

Unavailable

3

GEAR, 2ND PINION (18T)

5AP-17121-00-00

Unavailable

4

GEAR, 3RD PINION (19T)

5RM-17131-00-00

Unavailable

5

GEAR, 4TH PINION (22T)

5RM-17141-00-00

Unavailable

6

WASHER PLATE 132172160000

90201-20266-00

$9.49

7

CIRCLIP (525)

93410-20038-00

$3.76

8

BEARING

93306-20121-00

$36.99

9

BEARING (7X9)

93306-20327-00

$38.99

10

PLATE, COVER

5AP-17471-00-00

Unavailable

11

SCREW, PAN

98507-06014-00

$8.49

12

DRIVE AXLE ASSY

5AP-17402-00-00

$165.99

13

GEAR, 5TH WHEEL (21T)

5AP-17251-00-00

Unavailable

14

GEAR, 2ND WHEEL (32T)

5RM-17221-00-00

$71.99

15

GEAR, 3RD WHEEL (25T)

5AP-17231-00-00

Unavailable

16

WASHER PLATE 132172160000

90201-20266-00

$9.49

17

CIRCLIP (525)

93410-20038-00

$3.76

18

GEAR, 4TH WHEEL

5AP-17241-00-00

Unavailable

19

GEAR, 1ST WHEEL

5AP-17211-00-00

Unavailable

20

WASHER, PLATE (4L0)

90201-154E8-00

Unavailable

21

CIRCLIP(1AR)

99009-15400-00

Unavailable

22

WASHER PLATE 820473590000

90201-20272-00

Unavailable

23

BEARING(1YW)

93306-20461-00

Unavailable

24

OIL SEAL (20X38X5-517)

93102-20143-00

Unavailable

25

BEARING(1HX)

93306-20218-00

Unavailable

26

SPROCKET, DRIVE (13T)

93822-13213-00

Unavailable

27

HOLDER, SPROCKET

5HP-17456-00-00

Unavailable

28

BOLT, SOCKET

91317-05010-00

Unavailable
