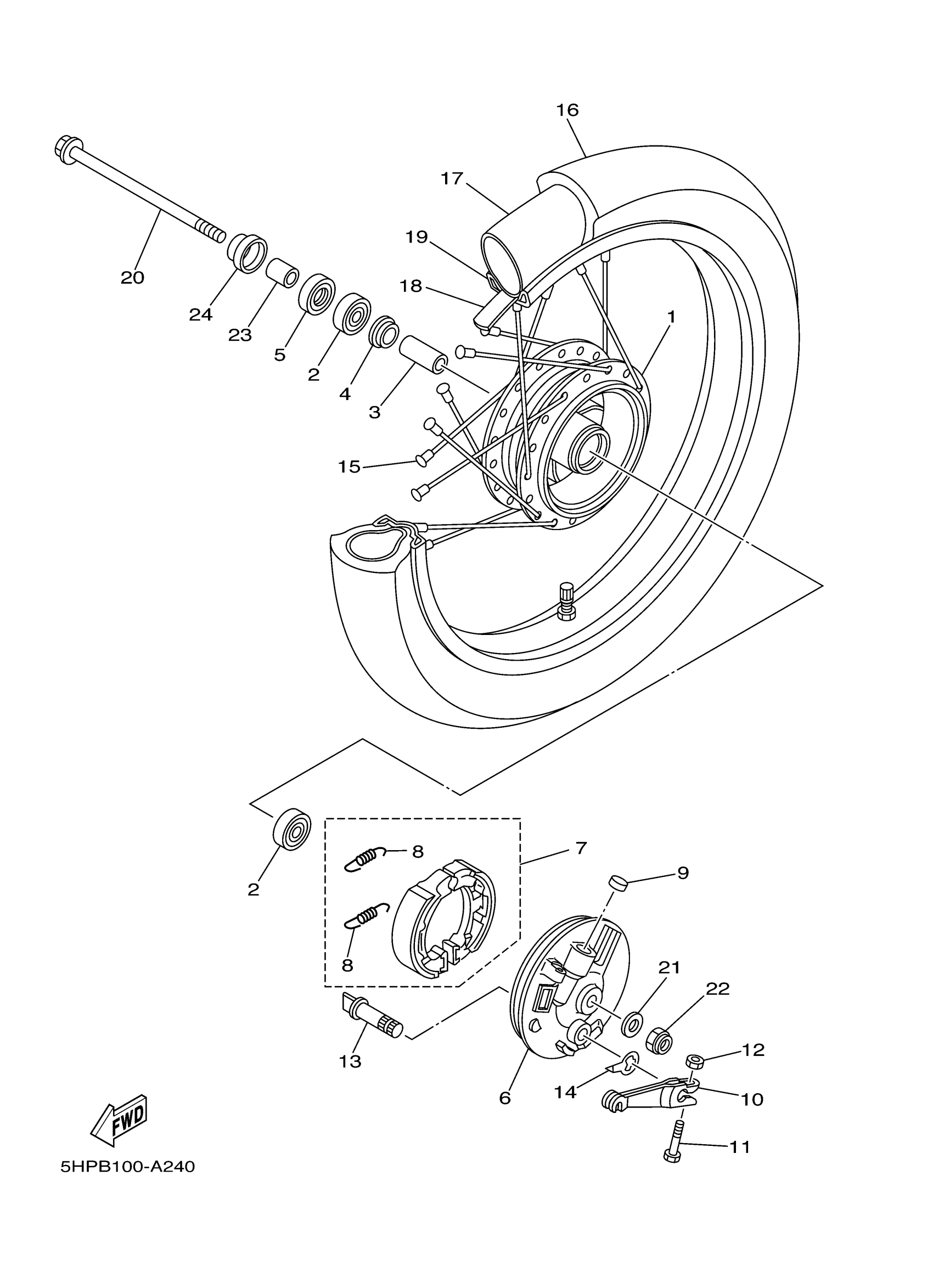

Yamaha TTR125S (TT-R125) 5HPP 2004 FRONT WHEEL S Diagram

#

Description
Price

1

HUB, FRONT

248-25111-10-00

$132.99

2

BEARING

93306-30102-00

$39.99

3

SPACER

90560-12138-00

Unavailable

4

FLANGE, SPACER

109-25315-00-00

$7.99

5

OIL SEAL(3TU)

93106-20033-00

$13.49

6

PLATE, BRAKE SHOE

5HP-25121-00-00

Unavailable

7

BRAKE SHOE KIT

4KN-W253E-11-00

$25.99

8

SPRING, TENSION

90506-15260-00

$8.49

9

PLUG(12Y)

90338-16029-00

Unavailable

10

LEVER, CAMSHAFT 1

5H0-25155-00-00

Unavailable

11

BOLT, HEXAGON (538)

90101-06278-00

$2.17

12

NUT(6TA)

95317-06600-00

$3.55

13

CAMSHAFT

4GL-25351-00-00

$68.99

14

PLATE, INDICATOR

50W-2533A-00-00

Unavailable

15

SPOKE SET, FRONT

5HP-25104-00-00

Unavailable

16

TIRE (70/100-17 40M)

94107-17008-00

Unavailable

17

TUBE (80/90-17 TR4)

94207-17808-00

Unavailable

18

BAND, RIM (22-17)

94307-17166-00

Unavailable

19

RIM (1.40-17)

94414-17006-00

Unavailable

20

AXLE, WHEEL

3UN-25181-01-00

Unavailable

21

WASHER, PLATE

90201-12047-00

Unavailable

22

NUT, U (4PM)

95617-12100-00

Unavailable

23

COLLAR (40E)

90387-120F9-00

Unavailable

24

COVER, HUB DUST

322-25118-00-00

Unavailable
