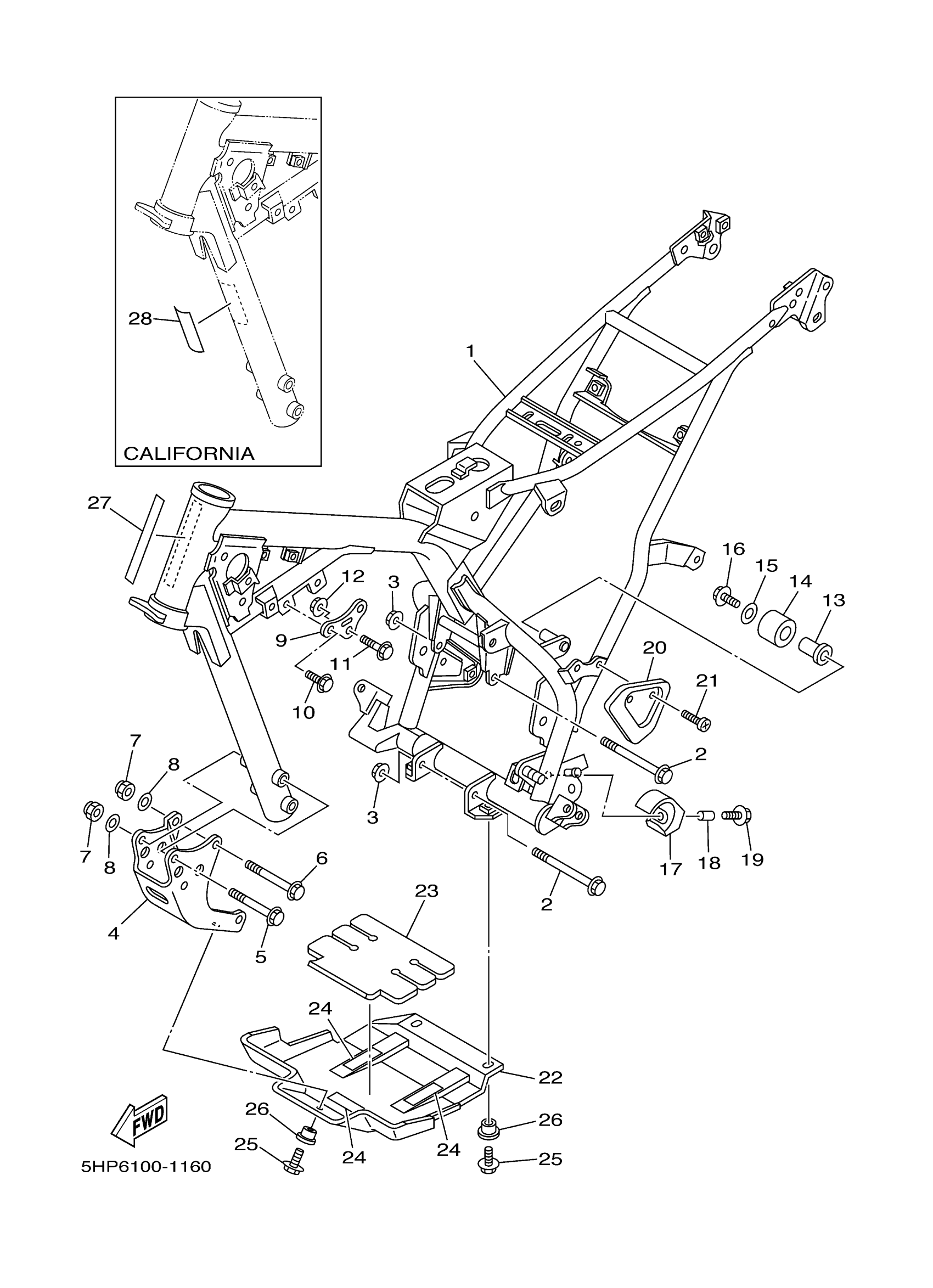

Yamaha TTR125S (TT-R125) 5HPP 2004 FRAME Diagram

#

Description
Price

1

FRAME COMP.

5HP-21110-01-00

Unavailable

2

BOLT, WASHER BASED

90105-08007-00

$5.60

3

NUT, SELF-LOCKING

90185-08169-00

$8.49

4

STAY, ENGINE 3

5HP-21316-00-00

Unavailable

5

BOLT, WASHER BASED

90105-084A1-00

$10.49

6

BOLT, WASHER BASED

90105-08011-00

$5.60

7

NUT, U

95617-08100-00

$9.49

8

WASHER, PLATE(3XP)

90201-086P8-00

$4.77

9

STAY, ENGINE 2

5HP-21315-00-00

Unavailable

10

BOLT, WASHER BASED(JN9)

90105-082A0-00

$4.94

11

BOLT, WASHER BASED

90105-08002-00

$8.49

12

NUT, SELF-LOCKING

90185-08169-00

$8.49

13

BUSH

10V-22184-00-00

$7.99

14

TENSIONER

30X-22178-00-00

$35.99

15

WASHER, PLATE(8AT)

90201-081R9-00

$9.49

16

BOLT, SMALL FLANGE

95027-08012-00

Unavailable

17

TENSIONER SET

99999-04397-00

Unavailable

18

COLLAR (3H5)

90387-060A3-00

Unavailable

19

BOLT, WITH WASHER(81H)

90119-06118-00

Unavailable

20

COVER

5HP-2117F-00-00

Unavailable

21

SCREW, BIND(1JK)

98980-06010-00

Unavailable

22

PROTECTOR, ENGINE

5HP-21471-00-00

Unavailable

23

DAMPER, RUBBER 1

5HP-21485-00-00

Unavailable

24

SEAL

5HP-21268-00-00

Unavailable

25

BOLT, FLANGE

95817-06016-00

Unavailable

26

COLLAR (8G8)

90387-06681-00

Unavailable

27

PLATE, EPA (U50)

5HP-2179X-00-00

Unavailable

28

PLATE, EPA 3 (CALIFORNIA)

5HP-2179T-40-00

Unavailable
