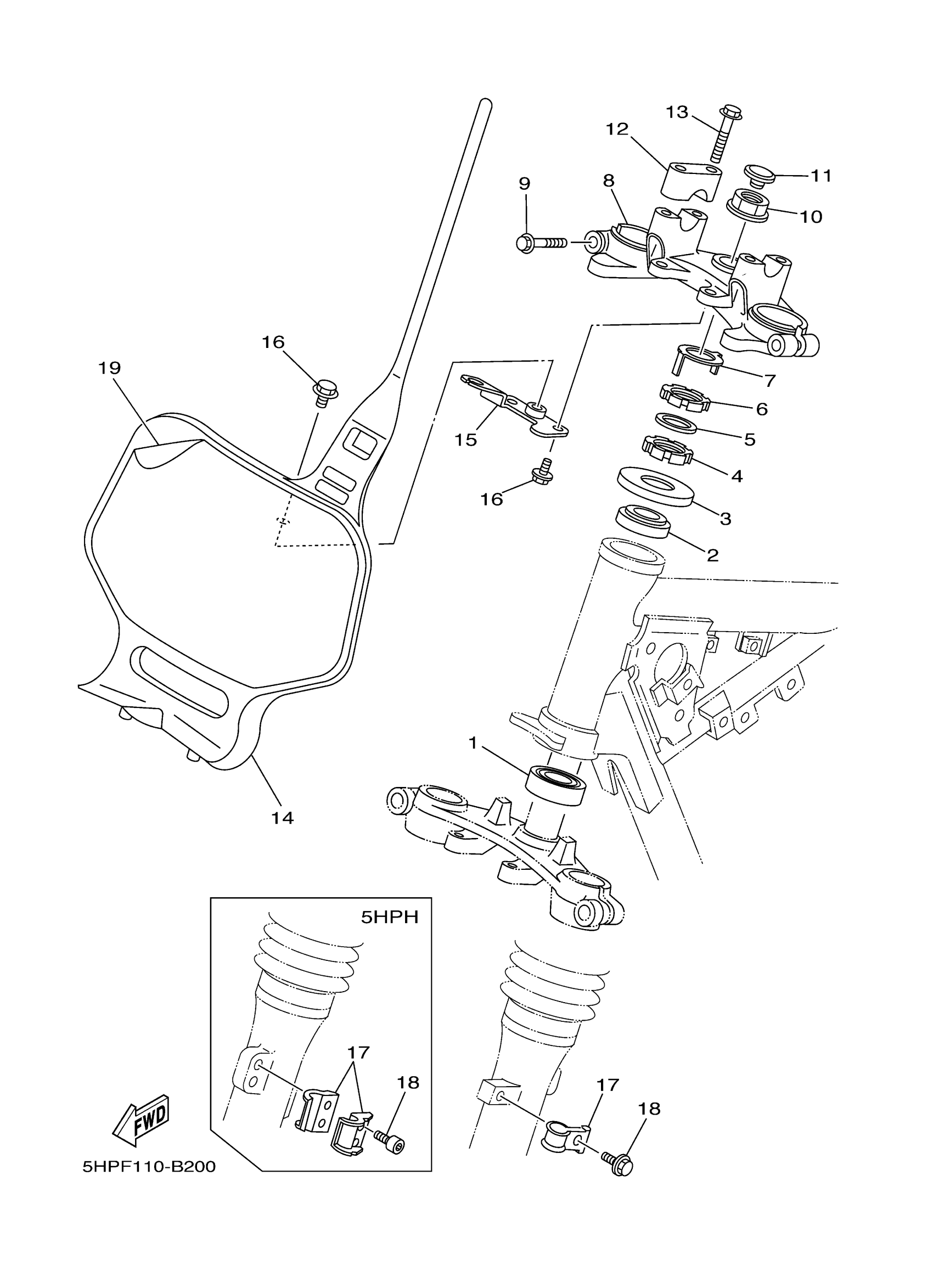

Yamaha TTR125R (TTR125) 5HPF 2003 STEERING Diagram

#

Description
Price

1

BEARING(4ES)

93332-00079-00

$69.99

2

BEARING

93399-99949-00

$58.99

3

COVER, BALL RACE 2

5HP-23416-00-00

Unavailable

4

NUT

90179-25004-00

$24.99

5

WASHER, PLATE (26H)

90202-26142-00

$9.49

6

NUT(3XP)

90179-25615-00

$26.99

7

WASHER, SPECIAL

3YF-23418-00-00

Unavailable

8

CROWN, HANDLE

5HP-23435-00-00

Unavailable

9

BOLT, FLANGE(3EF)

95024-08035-00

$8.49

10

NUT (26H)

90179-22412-00

$20.99

11

CAP

5HP-2319U-00-00

Unavailable

12

HOLDER, HANDLE UPPER

1E6-23441-10-35

$23.99

13

BOLT, FLANGE(3EF)

95024-08035-00

$8.49

14

PLATE, NUMBER

4ES-23485-20-00

$22.99

15

STAY, PLATE

5HP-23486-00-00

Unavailable

16

BOLT, FLANGE

95817-06012-00

Unavailable

17

HOLDER, CABLE 2

3Y1-23319-00-00

Unavailable

17

CLAMP (39E)

90465-14242-00

Unavailable

18

BOLT,SOCKET

91317-06016-00

Unavailable

18

BOLT, FLANGE

95817-06012-00

Unavailable

19

GRAPHIC 1

4ES-2339E-00-00

Unavailable
