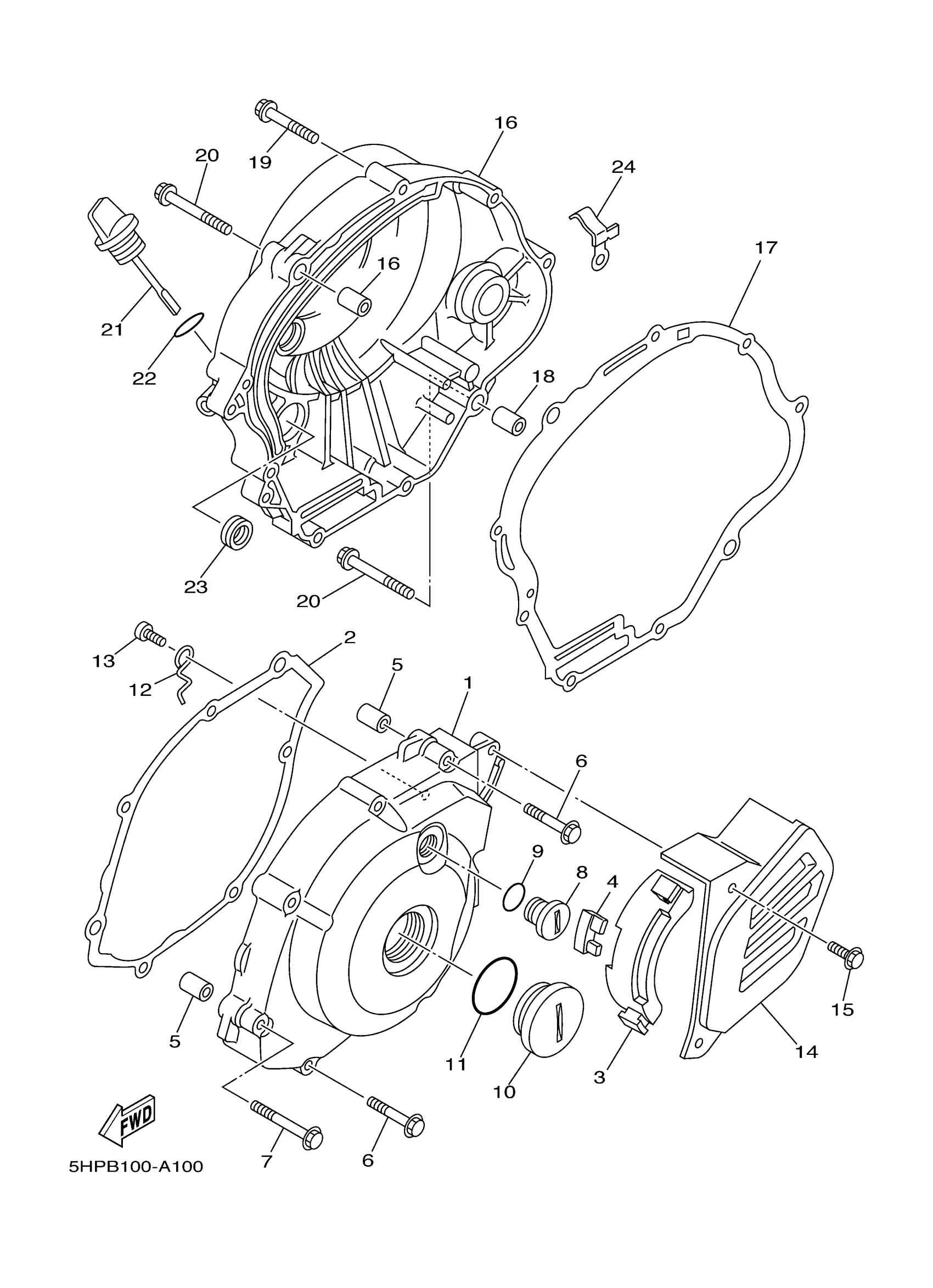

Yamaha TTR125R (TTR125) 5HPF 2003 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

5HP-15411-01-00

Unavailable

2

GASKET, CRANKCASE COVER 1

5HP-15451-00-00

$16.49

3

GUIDE, INLET

5HP-15377-00-00

Unavailable

4

DAMPER, ENGINE MOUNT 1

5HP-15316-00-00

Unavailable

5

PIN, DOWEL(3VD)

99530-10114-00

$2.55

6

BOLT, SMALL FLANGE

95027-06035-00

$2.22

7

BOLT, SMALL FLANGE

95027-06045-00

$3.28

8

PLUG, STRAIGHT SCREW (5H0)

90340-14068-00

$18.99

9

O-RING (2H9)

93210-14369-00

$7.49

10

PLUG, STRAIGHT SCREW (5H0)

90340-32069-00

$31.99

11

O-RING (341)

93210-32172-00

$7.49

12

PLATE

5HP-15191-00-00

Unavailable

13

SCREW, PAN

98507-06010-00

$3.55

14

COVER, CHAIN CASE

5HP-15418-00-00

$82.99

15

BOLT, FLANGE

95817-06016-00

$2.75

16

COVER, CRANKCASE 2

5HH-15421-01-00

Unavailable

17

GASKET, CRANKCASE COVER 2

5HP-15461-00-00

Unavailable

18

PIN, DOWEL(3VD)

99530-10114-00

$2.55

19

BOLT, SMALL FLANGE

95027-06035-00

$2.22

20

BOLT, SMALL FLANGE

95027-06045-00

$3.28

21

PLUG, OIL LEVEL

5HH-15362-00-00

Unavailable

22

O-RING (646)

93210-19123-00

Unavailable

23

OIL SEAL(2FJ)

93101-10142-00

Unavailable

24

CLAMP

90462-08005-00

Unavailable
