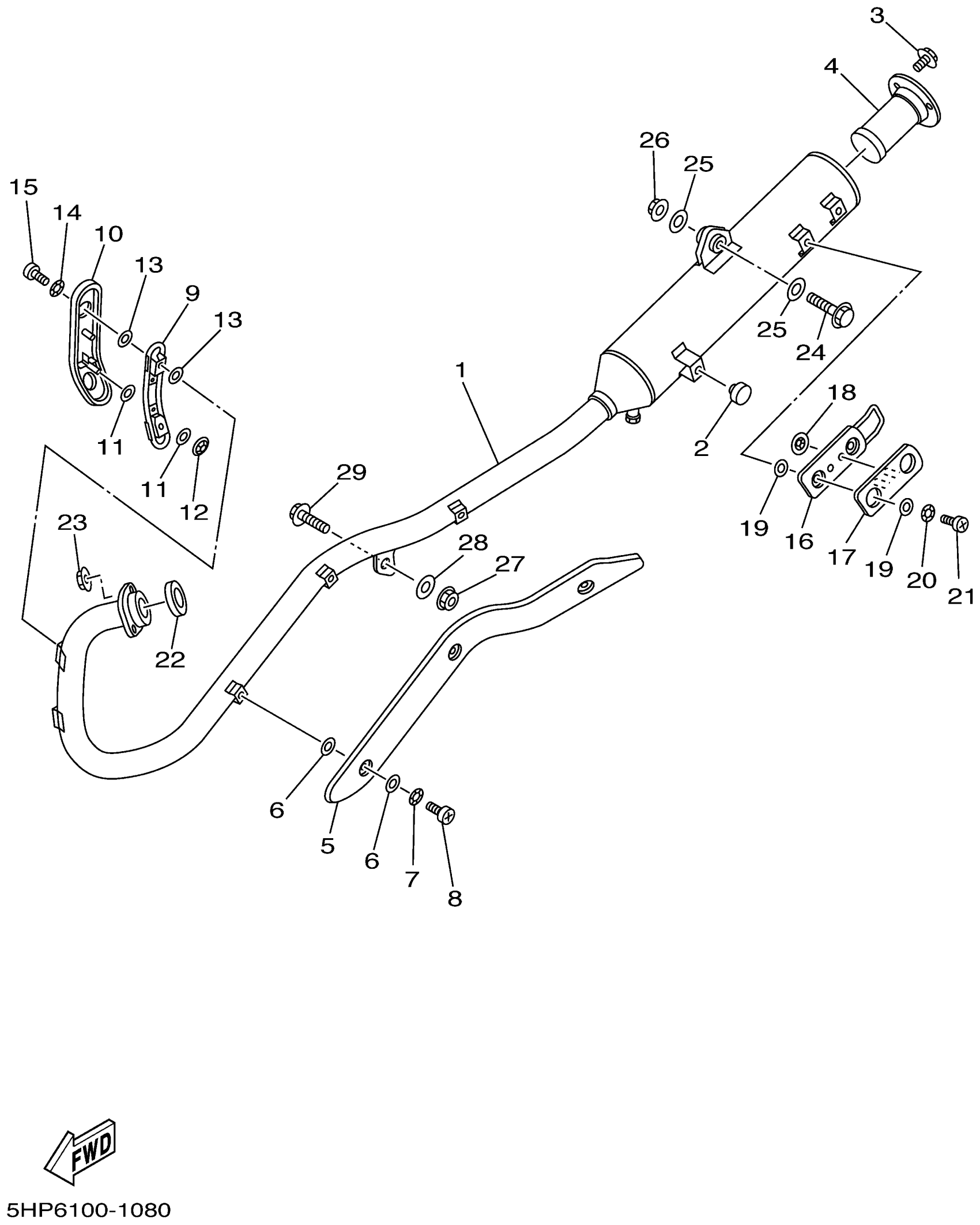

Yamaha TTR125P (TTR125) 5HPB 2002 EXHAUST Diagram

#

Description
Price

1

MUFFLER 1

5HP-14711-10-00

Unavailable

2

DAMPER, LOCATING 1

22W-24181-00-00

$6.99

3

BOLT, FLANGE(4MY)

95027-06010-00

$3.29

4

SPARK ARRESTER ASSY

5HP-14780-00-00

Unavailable

5

PROTECTOR, EXHAUST PIPE

5HP-14628-00-00

Unavailable

6

WASHER, PROTECTOR

4BD-14766-00-00

$5.49

7

WASHER, WAVE(3RW)

90206-06090-00

$8.49

8

SCREW, BIND(2TV)

98980-06008-00

$3.19

9

PROTECTOR, EXHAUST PIPE

5HP-14628-10-00

Unavailable

10

COVER, 1

5HP-1479H-00-00

Unavailable

11

WASHER, PROTECTOR

4BD-14766-00-00

$5.49

12

NUT SPRING 116283170100

90183-04005-00

$10.49

13

WASHER, PROTECTOR

4BD-14766-00-00

$5.49

14

WASHER, WAVE(3RW)

90206-06090-00

$8.49

15

SCREW, BIND(2TV)

98980-06008-00

$3.19

16

PROTECTER, SILENCER

5HP-14758-00-00

Unavailable

17

COVER 2

5HP-1479J-00-00

Unavailable

18

NUT SPRING 116283170100

90183-04005-00

$10.49

19

WASHER, PROTECTOR

4BD-14766-00-00

$5.49

20

WASHER, WAVE(3RW)

90206-06090-00

$8.49

21

SCREW, BIND(2TV)

98980-06008-00

$3.19

22

GASKET, EXHAUST PIPE

4BR-14613-00-00

Unavailable

23

NUT,SELF-LOCKING

95607-06200-00

Unavailable

24

BOLT, FLANGE

95817-10040-00

Unavailable

25

WASHER, PLATE(47X)

90201-101J1-00

Unavailable

26

NUT, SELF-LOCKING

90185-10002-00

Unavailable

27

NUT(55X)

90179-08491-00

Unavailable

28

WASHER, PLATE (8L8)

90201-087A9-00

Unavailable

29

BOLT, WASHER BASED(JN9)

90105-081A7-00

Unavailable
