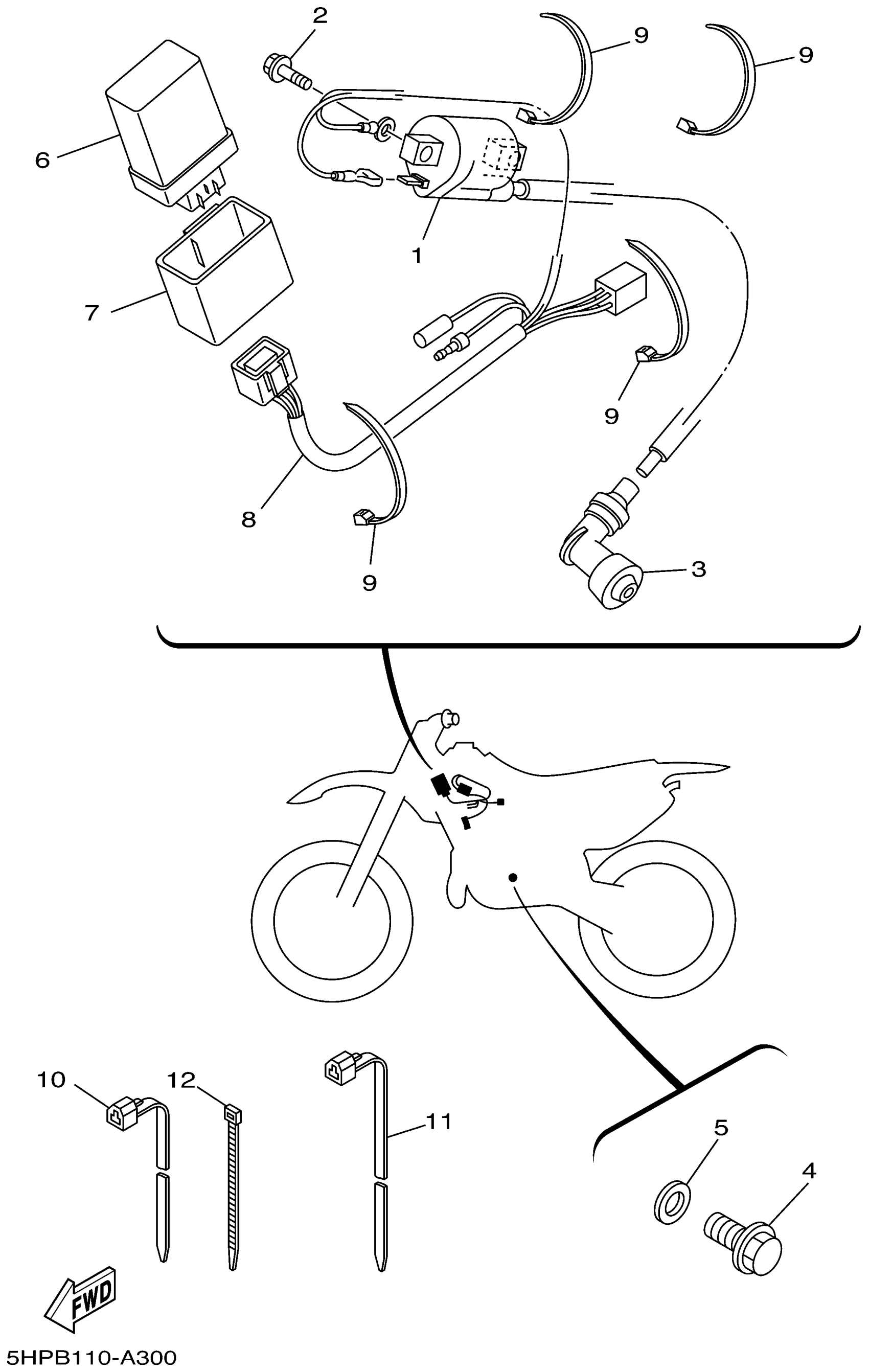

Yamaha TTR125P (TTR125) 5HPB 2002 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITION COIL ASSY

3KJ-82310-13-00

$47.99

2

BOLT, WASHER BASED(JA9)

90105-06696-00

$9.49

3

PLUG CAP ASSY

4BP-82370-01-00

$35.99

4

BOLT, FLANGE(3HP)

95817-10016-00

$8.49

5

GASKET (1KH,1.0T)

90430-10148-00

$5.60

6

C.D.I. UNIT ASSY

5HP-85540-01-00

Unavailable

7

BAND

1B2-H5546-00-00

$5.49

8

WIRE HARNESS ASSY

5HP-82590-00-00

Unavailable

9

BAND

1UA-82591-00-00

$4.78

10

CLAMP

90464-13077-00

$8.49

11

CLAMP(4FM)

90464-15195-00

$4.41

12

CLAMP

90465-10098-00

Unavailable
