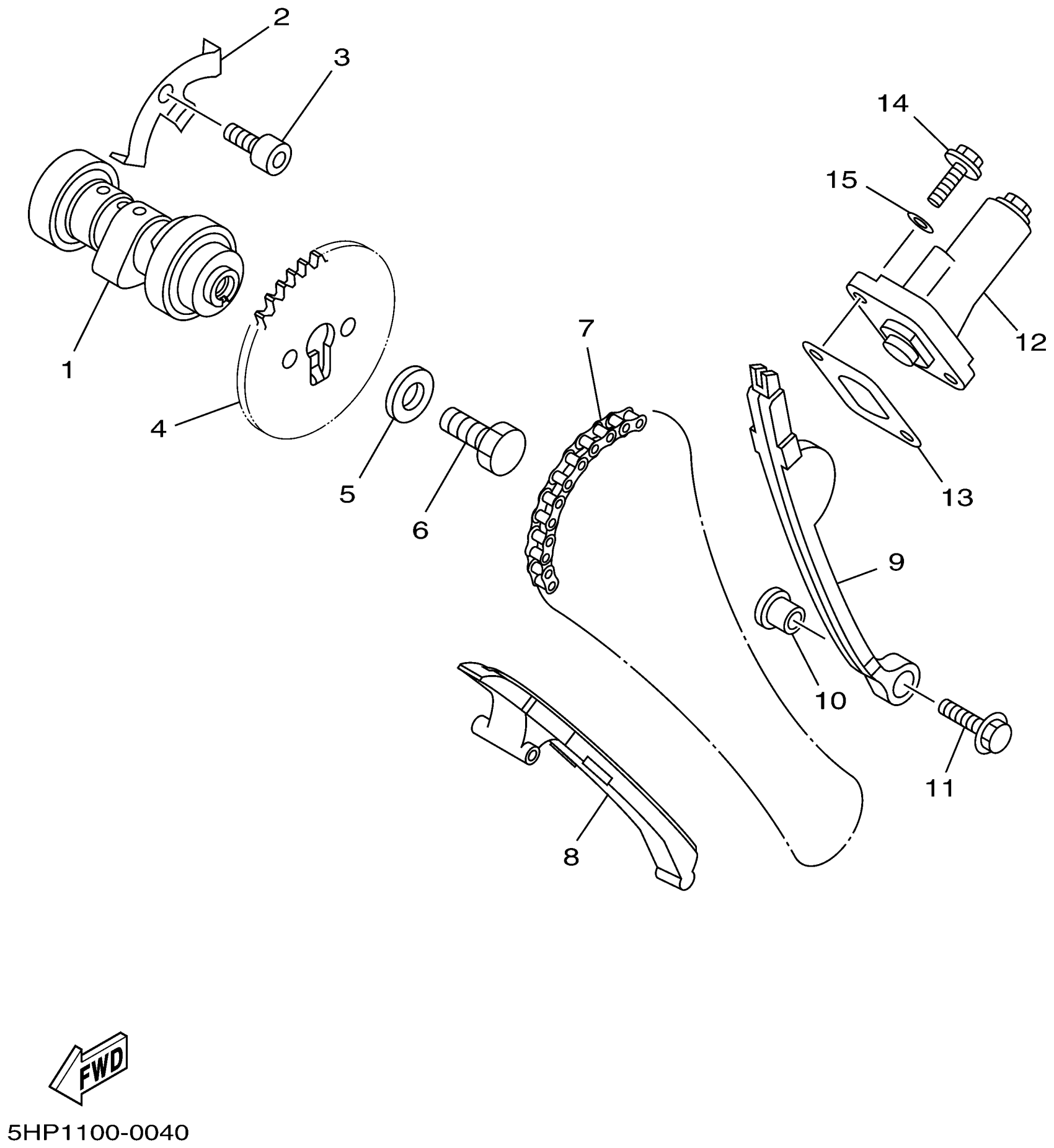

Yamaha TTR125P (TTR125) 5HPB 2002 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

5HP-12170-00-00

Unavailable

2

PLATE

4UL-1111F-00-00

Unavailable

3

BOLT,SOCKET

91317-06012-00

$5.75

4

SPROCKET

5AP-12176-00-00

$43.65

5

WASHER (853)

90201-08326-00

$5.75

6

BOLT, HEXAGON (22F)

90101-08590-00

$2.08

7

CHAIN

94581-94088-00

$34.57

8

GUIDE, STOPPER 1

5AP-12231-00-00

Unavailable

9

GUIDE, STOPPER 2

5HP-12241-01-00

Unavailable

10

COLLAR

5AP-15598-00-00

Unavailable

11

BOLT, FLANGE

95817-06020-00

$2.52

12

TENSIONER ASSY, CAM CHAIN

5KR-12210-00-00

$68.90

13

GASKET, TENSIONER CASE

4RF-12213-00-00

$4.90

14

BOLT, WASHER BASED(JA9)

90105-06696-00

$5.86

15

GASKET 256113960000

90430-06014-00

Unavailable
