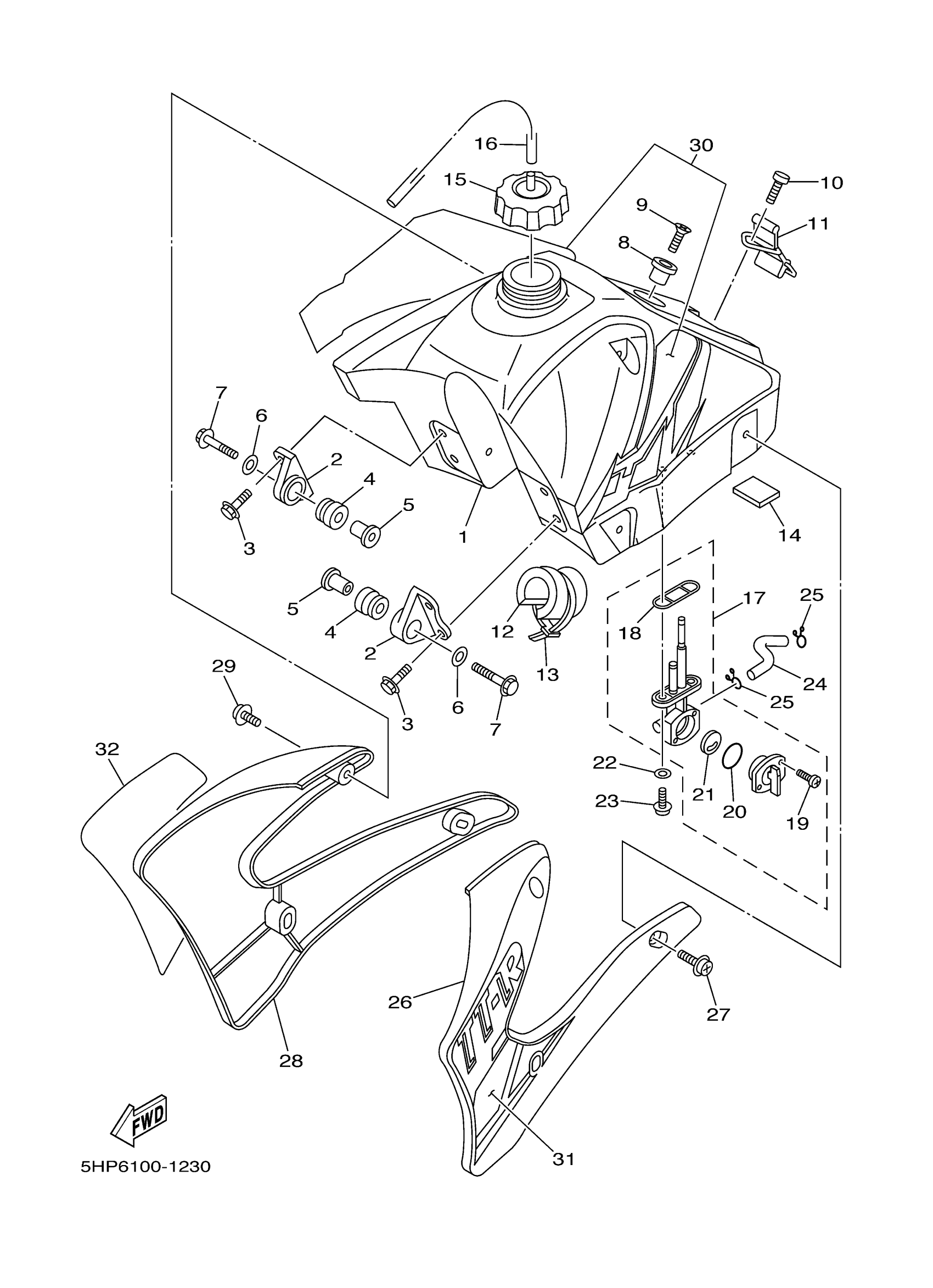

Yamaha TTR125N (TTR125) 5HP6 2001 FUEL TANK Diagram

FUEL TANK COMP.

5HP-24110-30-00

Unavailable

HOLDER, DAMPER

5XE-24144-00-00

$23.99

BOLT, FLANGE

95817-06016-00

$2.75

GROMMET(4AA)

90480-18549-00

$10.49

WASHER, SPECIAL

3JD-24186-00-00

$13.49

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

BOLT, FLANGE

95817-06030-00

$4.29

BRACKET, SEAT

4EW-2412F-00-00

$14.49

SCREW, FLAT

98707-06025-00

$8.49

SCREW, BINDING

98907-06020-00

$8.49

BAND, TANK FITTING 1

3SP-24173-00-00

$22.99

DAMPER

1YW-21638-00-00

Unavailable

BAND

1UA-82591-00-00

$4.78

DAMPER, SIDE COVER

26H-21746-00-00

Unavailable

CAP ASSY

2FJ-24610-20-00

$68.99

HOSE (L1500)

90445-090F6-00

Unavailable

FUEL COCK ASSY 1

23F-24500-20-00

Unavailable

O-RING

4X8-24512-00-00

Unavailable

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

SEAL, COCK

3AJ-24534-01-00

Unavailable

VALVE PACKING

3AC-24523-00-00

Unavailable

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

SCREW 256241430000

90149-06011-00

Unavailable

HOSE (L200)

90445-10752-00

Unavailable

CLIP

90467-100A1-00

Unavailable

SCOOP, AIR 1

5HP-2137W-00-00

Unavailable

SCREW, WITH WASHER(3YJ)

90159-06182-00

Unavailable

SCOOP, AIR 2

5HP-2137X-00-00

Unavailable

SCREW, WITH WASHER(3YJ)

90159-06182-00

Unavailable

GRAPHIC SET

5HP-24240-10-00

Unavailable

GRAPHIC 1

5HP-2137N-10-00

Unavailable

GRAPHIC 2

5HP-2137P-10-00

Unavailable
