Description

Price

1

COVER, CRANKCASE 1

5HP-15411-01-00

Unavailable

2

GASKET, CRANKCASE COVER 1

5HP-15451-00-00

$16.49

3

PIN, DOWEL(3VD)

99530-10114-00

$2.55

4

BOLT, SMALL FLANGE

95027-06035-00

$2.22

5

BOLT, SMALL FLANGE

95027-06045-00

$3.28

6

PLUG, STRAIGHT SCREW (5H0)

90340-14068-00

$18.99

7

O-RING (2H9)

93210-14369-00

$7.49

8

PLUG, STRAIGHT SCREW (5H0)

90340-32069-00

$31.99

9

O-RING (341)

93210-32172-00

$7.49

10

PLATE

5HP-15191-00-00

Unavailable

11

SCREW, PAN

98507-06010-00

$3.55

12

COVER, CHAIN CASE

5HP-15418-00-00

$82.99

13

BOLT, FLANGE

95817-06016-00

$2.75

14

COVER, CRANKCASE 2

5HH-15421-01-00

Unavailable

15

GASKET, CRANKCASE COVER 2

5HP-15461-00-00

$28.99

16

PIN, DOWEL(3VD)

99530-10114-00

$2.55

17

BOLT, SMALL FLANGE

95027-06035-00

$2.22

18

BOLT, SMALL FLANGE

95027-06045-00

$3.28

19

PLUG, OIL LEVEL

5HH-15362-00-00

Unavailable

20

O-RING (646)

93210-19123-00

Unavailable

21

OIL SEAL(2FJ)

93101-10142-00

Unavailable

22

CLAMP

90462-08005-00

Unavailable

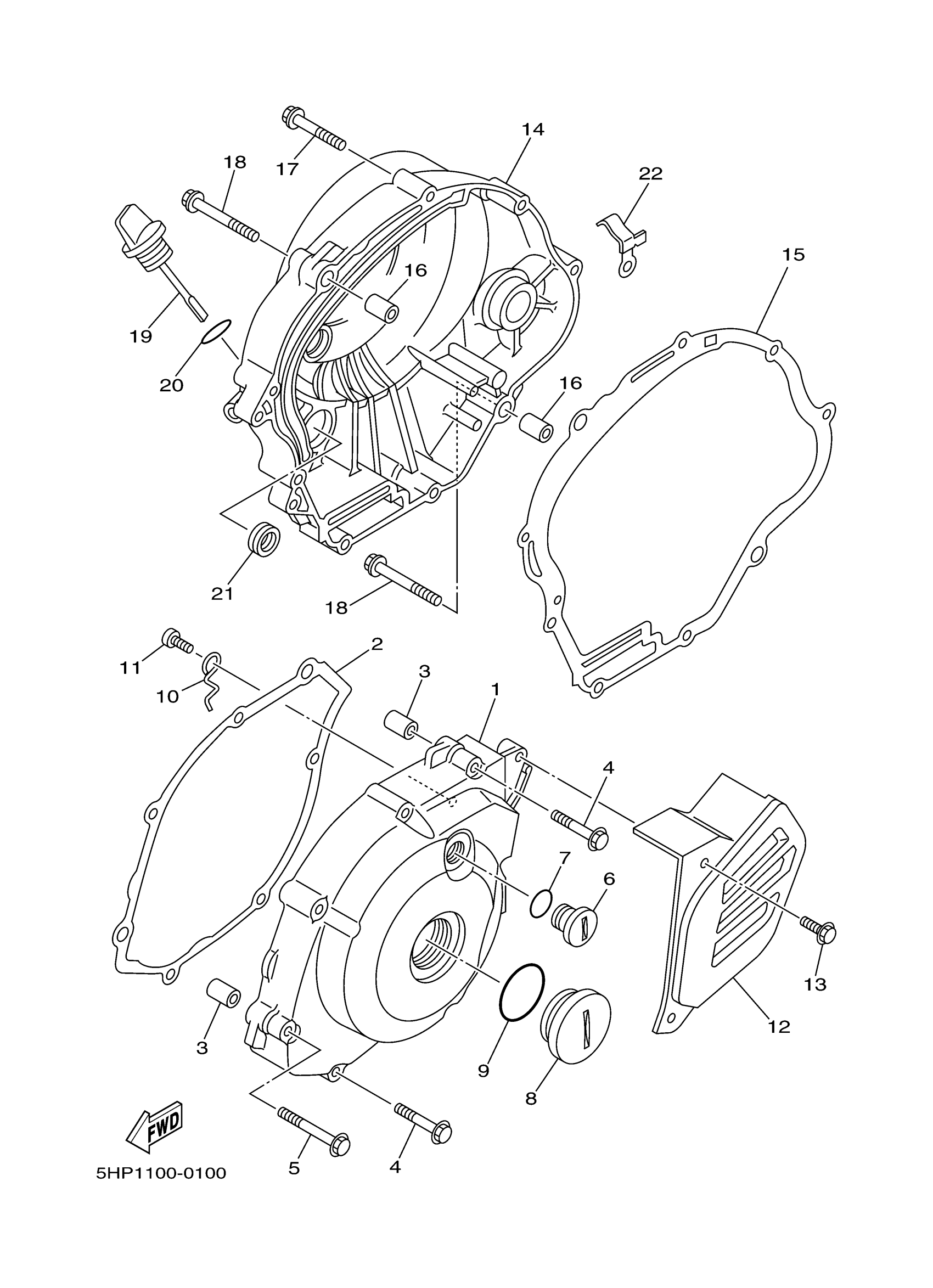

Yamaha TTR125N (TTR125) 5HP6 2001 CRANKCASE COVER 1 Diagram

COVER, CRANKCASE 1

GASKET, CRANKCASE COVER 1

PIN, DOWEL(3VD)

BOLT, SMALL FLANGE

BOLT, SMALL FLANGE

PLUG, STRAIGHT SCREW (5H0)

O-RING (2H9)

PLUG, STRAIGHT SCREW (5H0)

O-RING (341)

PLATE

SCREW, PAN

COVER, CHAIN CASE

BOLT, FLANGE

COVER, CRANKCASE 2

GASKET, CRANKCASE COVER 2

PIN, DOWEL(3VD)

BOLT, SMALL FLANGE

BOLT, SMALL FLANGE

PLUG, OIL LEVEL

O-RING (646)

OIL SEAL(2FJ)

CLAMP
