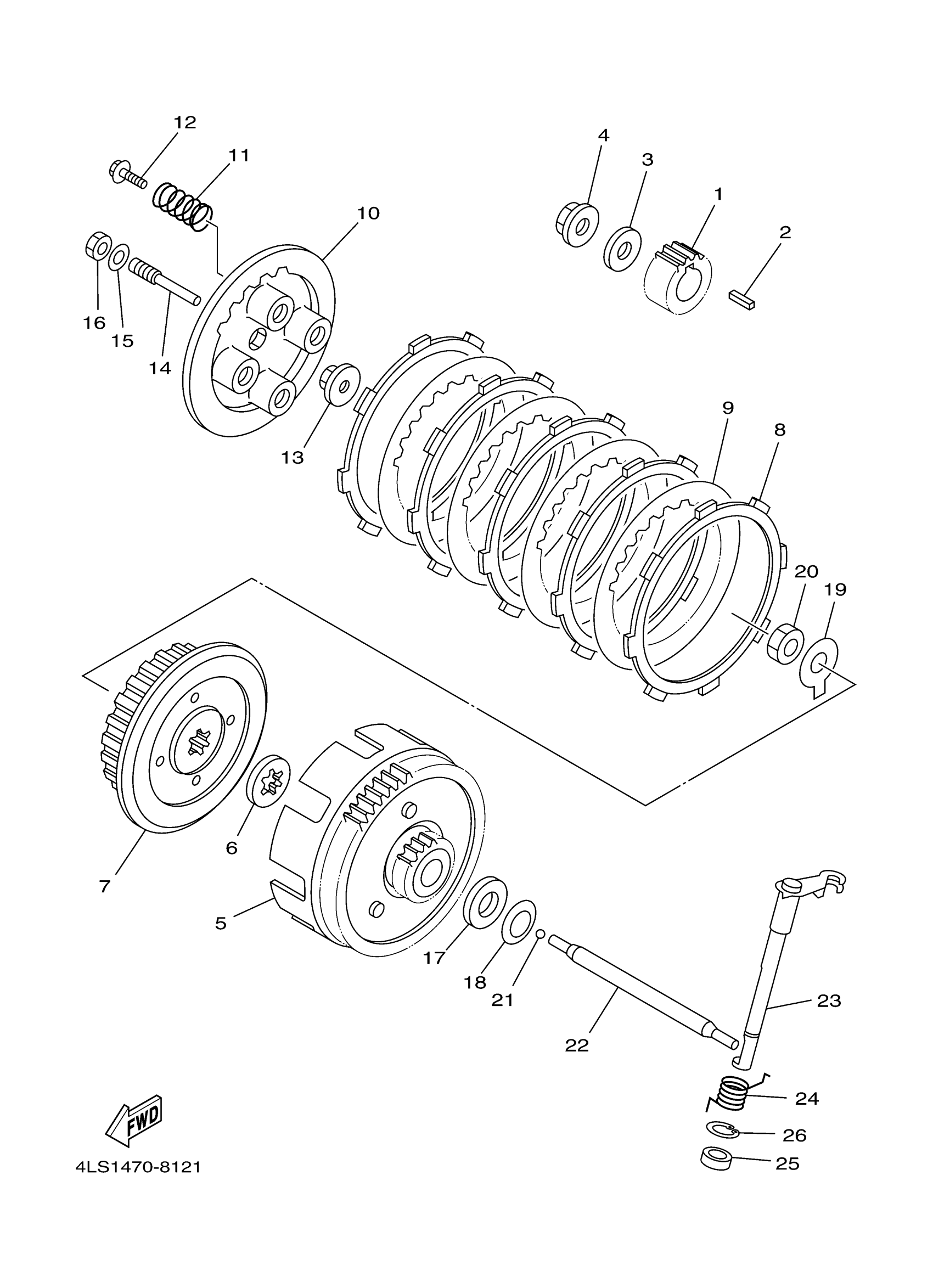

Yamaha TTR125N (TTR125) 5HP6 2001 CLUTCH Diagram

GEAR, PRIMARY DRIVE (C)

401-16111-00-30

Unavailable

KEY, STRAIGHT

90282-05001-00

$9.49

WASHER, PLATE (35T)

90201-122H1-00

$9.49

NUT(1EE)

90179-12659-00

$8.49

PRIMARY DRIVEN GEAR COMP.

5AP-16150-01-00

$343.99

PLATE, THRUST 1

4V0-16154-00-00

$31.99

BOSS, CLUTCH

5AP-16371-00-00

$126.99

PLATE, FRICTION

598-16321-01-00

$17.49

PLATE, CLUTCH 1

1V1-16324-10-00

$22.99

PLATE, PRESSURE 1

5AP-16351-00-00

$43.99

SPRING, COMPRESSION(58T)

90501-204A0-00

$8.49

BOLT, W/WASHER (3V2)

90119-05020-00

$9.49

PLATE, PUSH

1W1-16358-01-00

$23.99

ROD, PUSH 1

5AP-16356-00-00

$14.49

WASHER(6TA)

92907-06200-00

$8.49

NUT(6TA)

95317-06600-00

Unavailable

PLATE, THRUST 2

5AP-16164-00-00

Unavailable

WASHER, CONICAL SPRING (10V)

90208-17032-00

Unavailable

WASHER, LOCK (21T)

90215-12211-00

Unavailable

NUT(37F)

90170-12337-00

Unavailable

BALL

93503-16003-00

Unavailable

ROD, PUSH 2

5AP-16357-01-00

Unavailable

PUSH LEVER COMP

1B2-E6381-11-00

Unavailable

SPRING, TORSION(4BA)

90508-142A5-00

Unavailable

OIL SEAL (4G0)

93102-12224-00

Unavailable

CIRCLIP(1EV)

99009-20500-00

Unavailable
