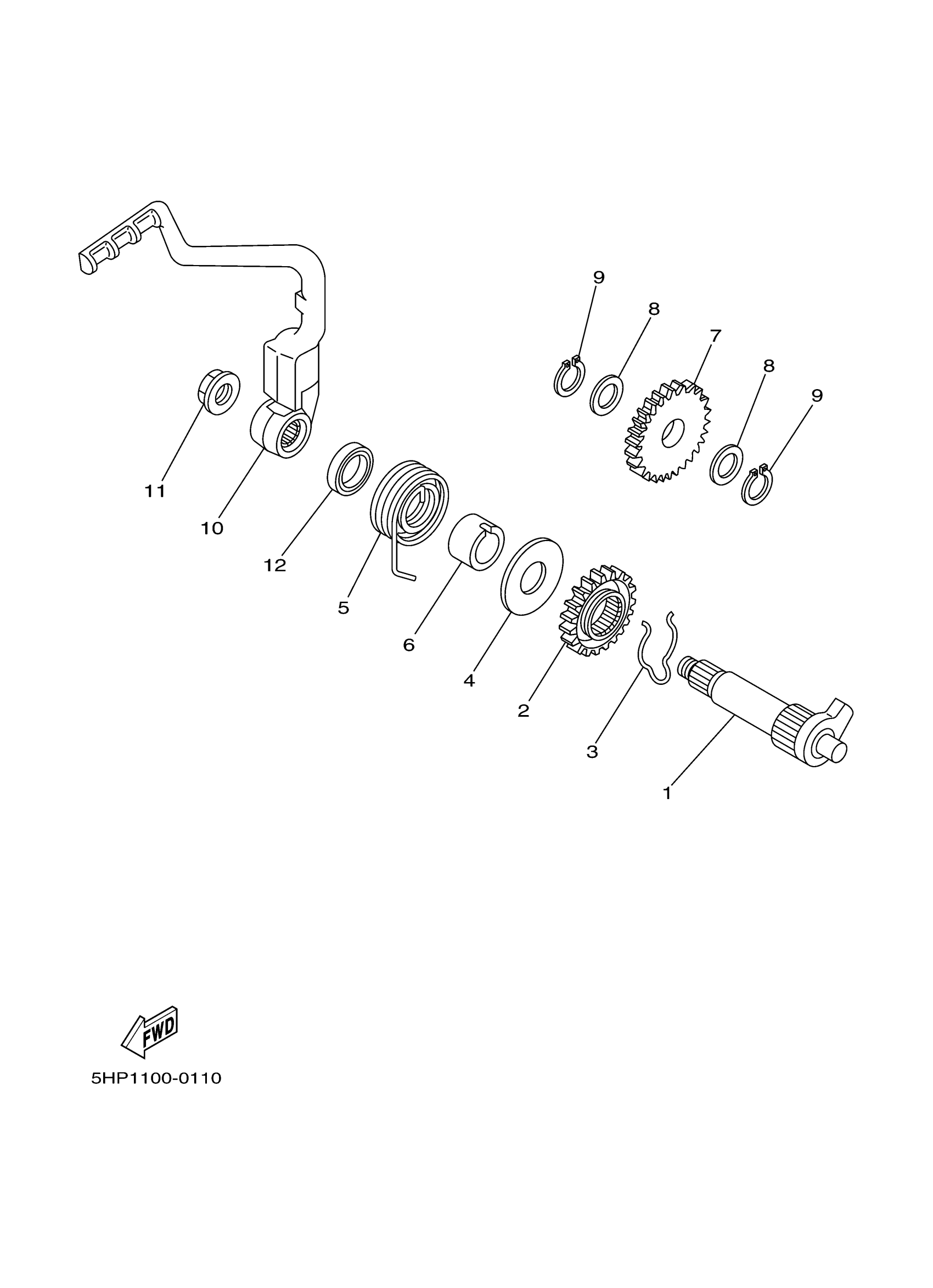

Yamaha TTR125MC (TTR125 CA) 5HP2 2000 STARTER Diagram

#

Description
Price

1

KICK AXLE ASSY

55K-15660-00-00

$105.99

2

GEAR, KICK

10V-15641-00-00

Unavailable

3

CLIP 315156870000

90468-26048-00

$8.49

4

WASHER, PLATE (10V)

90201-202F9-00

$9.49

5

SPRING, TORSION(37F)

90508-26667-00

$10.49

6

GUIDE, SPRING

5HP-15664-00-00

Unavailable

7

GEAR, KICK IDLE

5HP-15651-00-00

Unavailable

8

WASHER, PLATE(JA8)

90201-153P0-00

$10.49

9

CIRCLIP(1AR)

99009-15400-00

$8.49

10

KICK CRANK ASSY

5HP-15620-10-00

$235.99

11

NUT(1EE)

90179-12659-00

$8.49

12

OIL SEAL

93109-20069-00

$10.49
