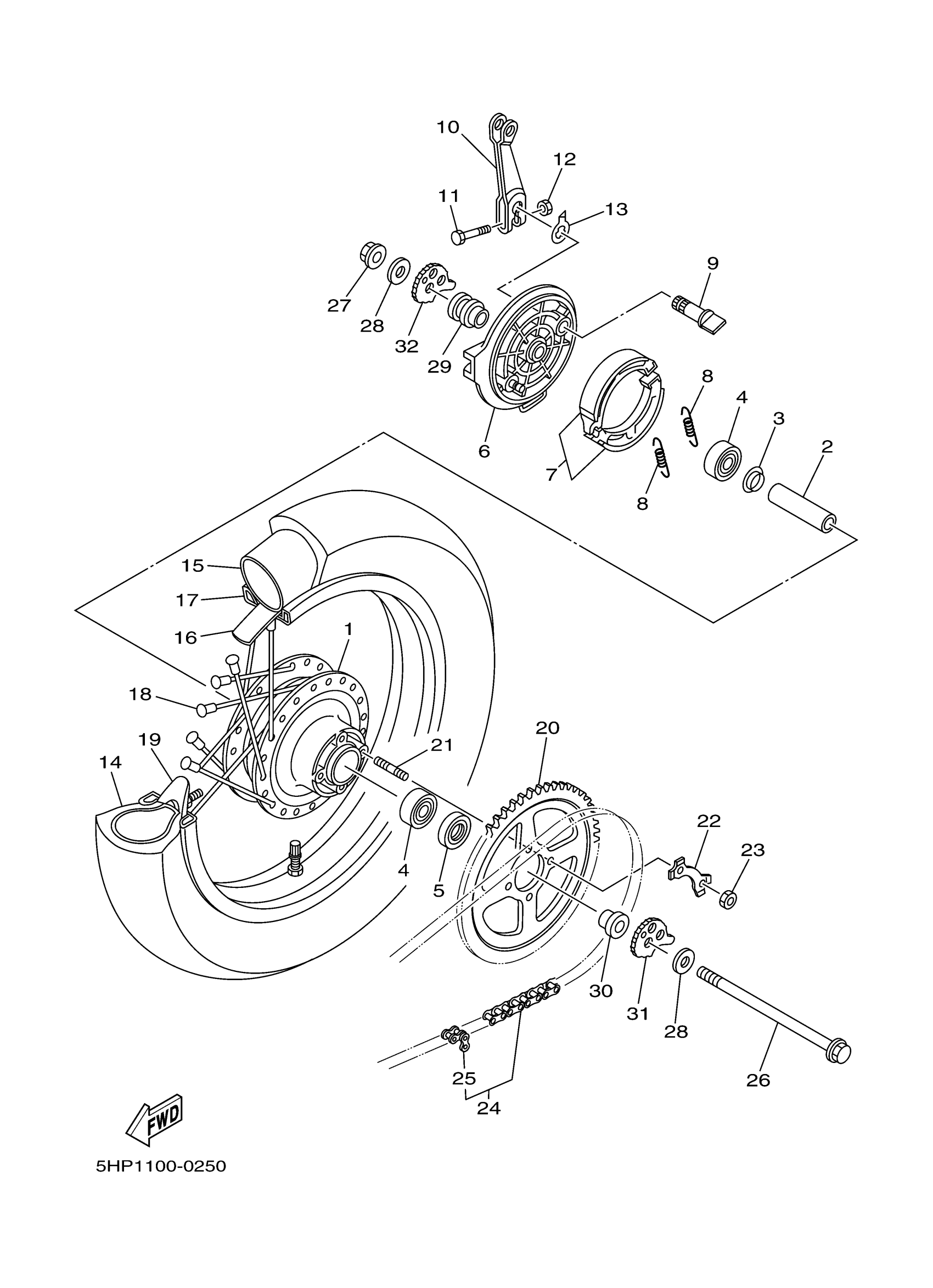

Yamaha TTR125MC (TTR125 CA) 5HP2 2000 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

5HP-25311-00-00

Unavailable

2

SPACER (1U1)

90560-12170-00

$17.99

3

FLANGE, SPACER

109-25315-00-00

$7.99

4

BEARING

93306-30111-00

$40.99

5

OIL SEAL(3TU)

93106-20033-00

$13.49

6

PLATE, BRAKE SHOE

5HP-25321-00-00

Unavailable

7

BRAKE SHOE KIT

4KN-W253E-11-00

$25.99

8

SPRING, TENSION

90506-15260-00

$8.49

9

CAMSHAFT

4GL-25351-00-00

$68.99

10

LEVER, CAMSHAFT

55K-25355-00-00

$40.99

11

BOLT, HEXAGON (538)

90101-06278-00

$2.17

12

NUT(6TA)

95317-06600-00

$3.55

13

PLATE, INDICATOR

2JX-2533A-00-00

$7.99

14

TIRE (90/100-14 49M)

94109-14008-00

Unavailable

15

TUBE (90/100-14 TR6) CS

94235-14800-00

$18.99

16

BAND, RIM (1K8)

94327-14076-00

Unavailable

17

RIM (1.60-14)

94416-14002-00

Unavailable

18

SPOKE SET, REAR

5HP-25304-00-00

Unavailable

19

SPACER, BEAD

5X2-25394-00-00

Unavailable

20

SPROCKET, DRIVEN (49T)

5FC-25449-20-00

Unavailable

21

BOLT, STUD (483)

90116-08218-00

Unavailable

22

WASHER

2AL-25412-00-00

Unavailable

23

NUT (3Y2)

90170-08258-00

Unavailable

24

CHAIN

9Y582-51115-00

Unavailable

25

JOINT, CHAIN

94682-51001-00

Unavailable

26

AXLE, WHEEL

5HN-25381-00-00

Unavailable

27

NUT, U FLANGE

95607-12200-00

Unavailable

28

WASHER, PLATE (4N0)

90201-126A7-00

Unavailable

29

COLLAR, WHEEL

5HP-25383-00-00

Unavailable

30

COLLAR (40E)

90387-127E0-00

Unavailable

31

PULLER, CHAIN 1

5HP-25388-00-00

Unavailable

32

PULLER, CHAIN 2

5HP-25389-00-00

Unavailable
