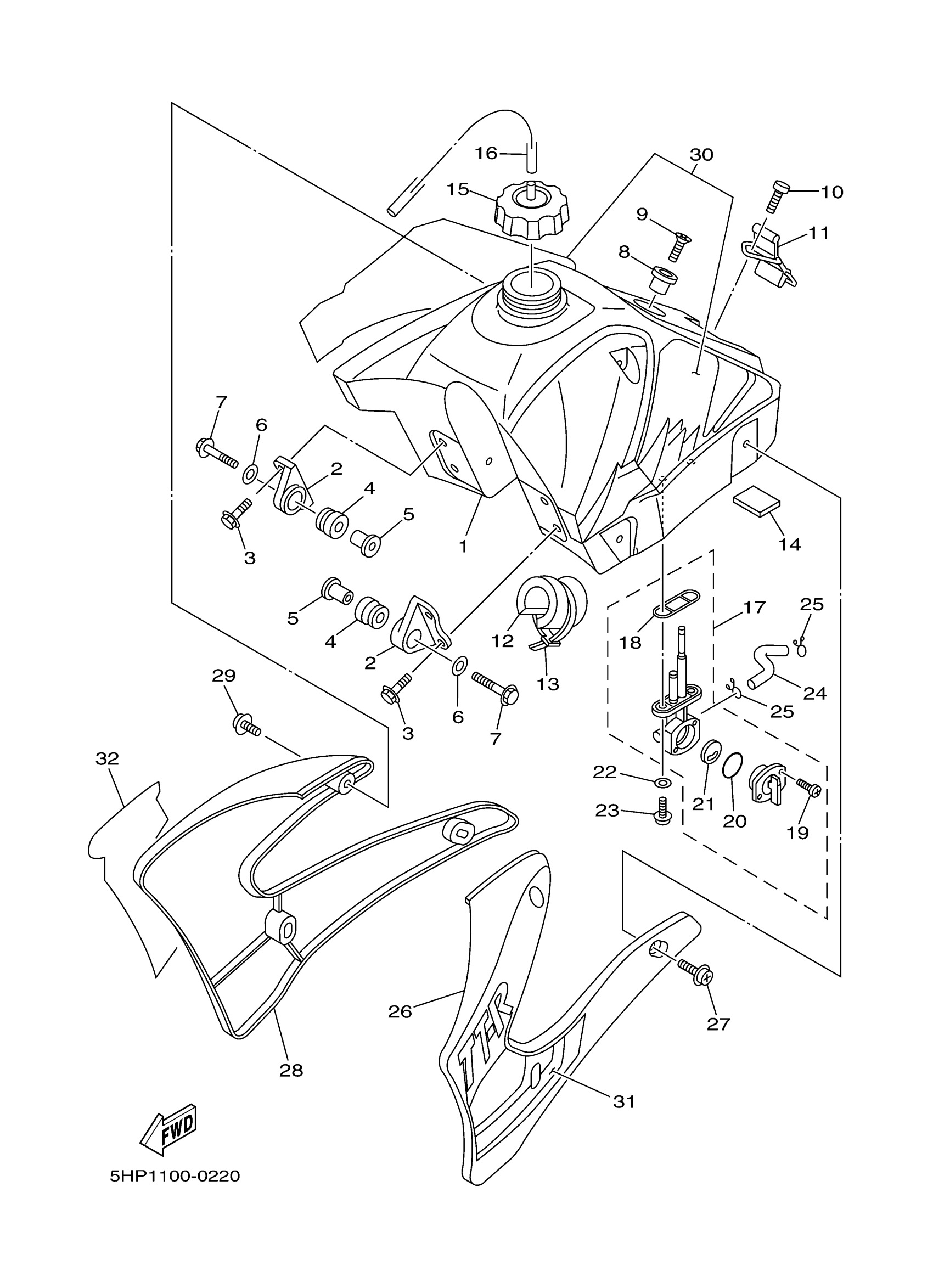

Yamaha TTR125MC (TTR125 CA) 5HP2 2000 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

5HP-24110-30-00

Unavailable

2

HOLDER, DAMPER

5XE-24144-00-00

$18.59

3

BOLT, FLANGE

95817-06016-00

$1.40

4

GROMMET(4AA)

90480-18549-00

$8.23

5

WASHER, SPECIAL

3JD-24186-00-00

$10.29

6

WASHER, PLATE(36Y)

90201-063J2-00

$4.15

7

BOLT, FLANGE

95817-06030-00

$3.65

8

BRACKET, SEAT

4EW-2412F-00-00

$11.85

9

SCREW, FLAT

98707-06025-00

$5.76

10

SCREW, BINDING

98907-06020-00

$5.76

11

BAND, TANK FITTING 1

3SP-24173-00-00

$17.25

12

DAMPER

1YW-21638-00-00

Unavailable

13

BAND

1UA-82591-00-00

$3.85

14

DAMPER, SIDE COVER

26H-21746-00-00

Unavailable

15

CAP ASSY

2FJ-24610-20-00

$57.70

16

HOSE (L1500)

90445-090F6-00

Unavailable

17

FUEL COCK ASSY 1

23F-24500-20-00

Unavailable

18

O-RING

4X8-24512-00-00

Unavailable

19

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

20

SEAL, COCK

3AJ-24534-01-00

Unavailable

21

VALVE PACKING

3AC-24523-00-00

Unavailable

22

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

23

SCREW 256241430000

90149-06011-00

Unavailable

24

HOSE (L200)

90445-10752-00

Unavailable

25

CLIP

90467-100A1-00

Unavailable

26

SCOOP, AIR 1

5HP-2137W-00-00

Unavailable

27

SCREW, WITH WASHER(3YJ)

90159-06182-00

Unavailable

28

SCOOP, AIR 2

5HP-2137X-00-00

Unavailable

29

SCREW, WITH WASHER(3YJ)

90159-06182-00

Unavailable

30

GRAPHIC SET

5HP-24240-01-00

Unavailable

31

GRAPHIC 1

5HP-2137N-01-00

Unavailable

32

GRAPHIC 2

5HP-2137P-01-00

Unavailable
