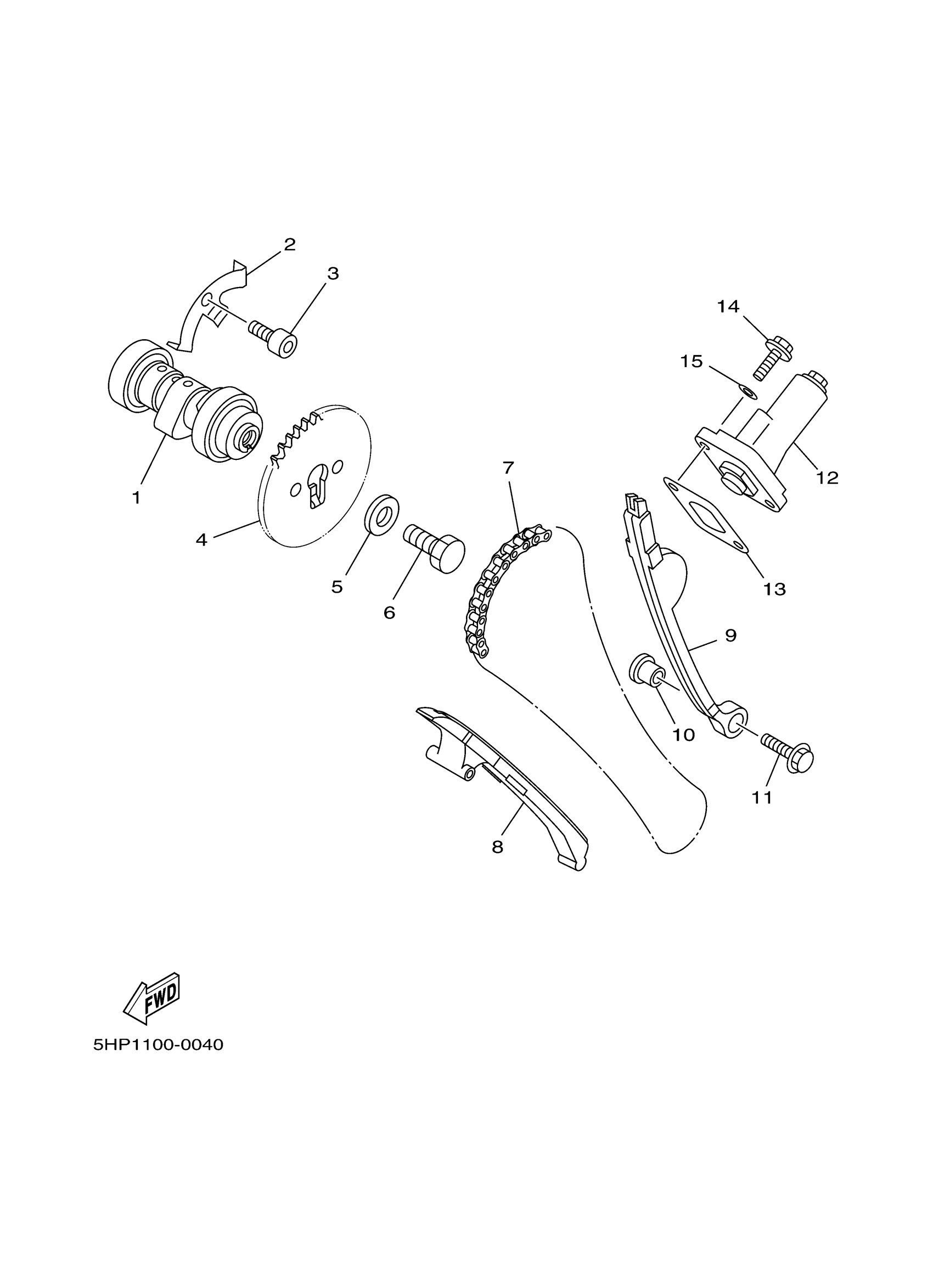

Yamaha TTR125MC (TTR125 CA) 5HP2 2000 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

5HP-12170-00-00

Unavailable

2

PLATE

4UL-1111F-00-00

Unavailable

3

BOLT,SOCKET

91317-06012-00

$8.49

4

SPROCKET

5AP-12176-00-00

$55.99

5

WASHER (853)

90201-08326-00

$8.49

6

BOLT, HEXAGON (22F)

90101-08590-00

$2.34

7

CHAIN

94581-94088-00

$40.99

8

GUIDE, STOPPER 1

5AP-12231-00-00

Unavailable

9

GUIDE, STOPPER 2

5HP-12241-01-00

Unavailable

10

COLLAR

5AP-15598-00-00

Unavailable

11

BOLT, FLANGE

95817-06020-00

$3.81

12

TENSIONER ASSY, CAM CHAIN

5KR-12210-00-00

$85.99

13

GASKET, TENSIONER CASE

4RF-12213-00-00

$6.99

14

BOLT, WASHER BASED(JA9)

90105-06696-00

$9.49

15

GASKET 256113960000

90430-06014-00

Unavailable
