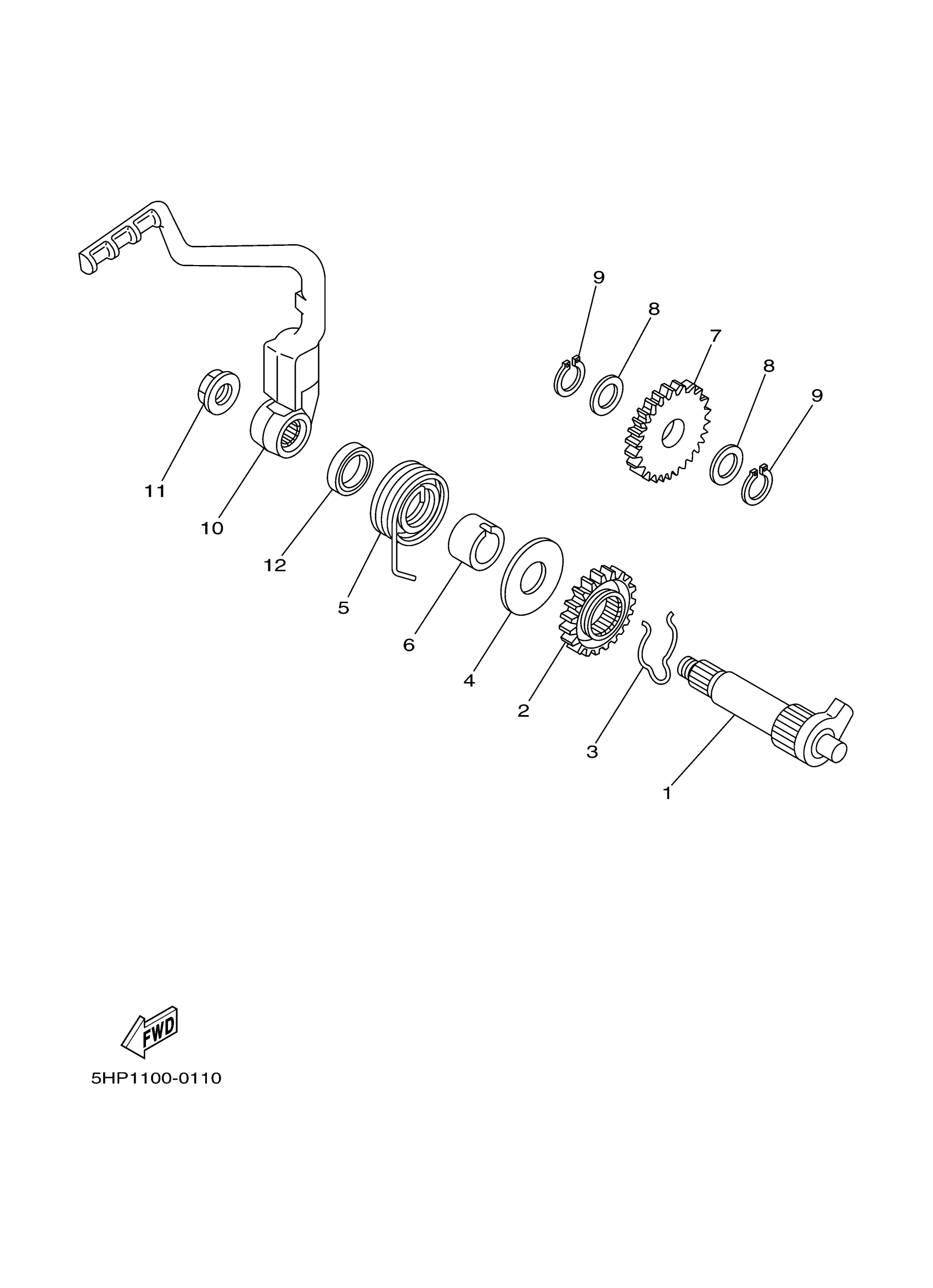

Yamaha TTR125LX (TTR125L) 19C1 2008 STARTER Diagram

#

Description
Price

1

KICK AXLE ASSY

5VL-E5660-01-00

Unavailable

2

GEAR, KICK

10V-15641-00-00

Unavailable

3

CLIP 315156870000

90468-26048-00

$8.49

4

WASHER, PLATE (10V)

90201-202F9-00

$9.49

5

SPRING, TORSION(37F)

90508-26667-00

$10.49

6

SPACER (3C11)

3C1-E5666-00-00

Unavailable

7

GEAR, KICK IDLE

5HP-15651-00-00

$118.99

8

WASHER, PLATE(JA8)

90201-153P0-00

$10.49

9

CIRCLIP(1AR)

99009-15400-00

$8.49

10

KICK CRANK ASSY

5HP-15620-10-00

$235.99

11

NUT(1EE)

90179-12659-00

$8.49

12

OIL SEAL

93109-20069-00

$10.49
