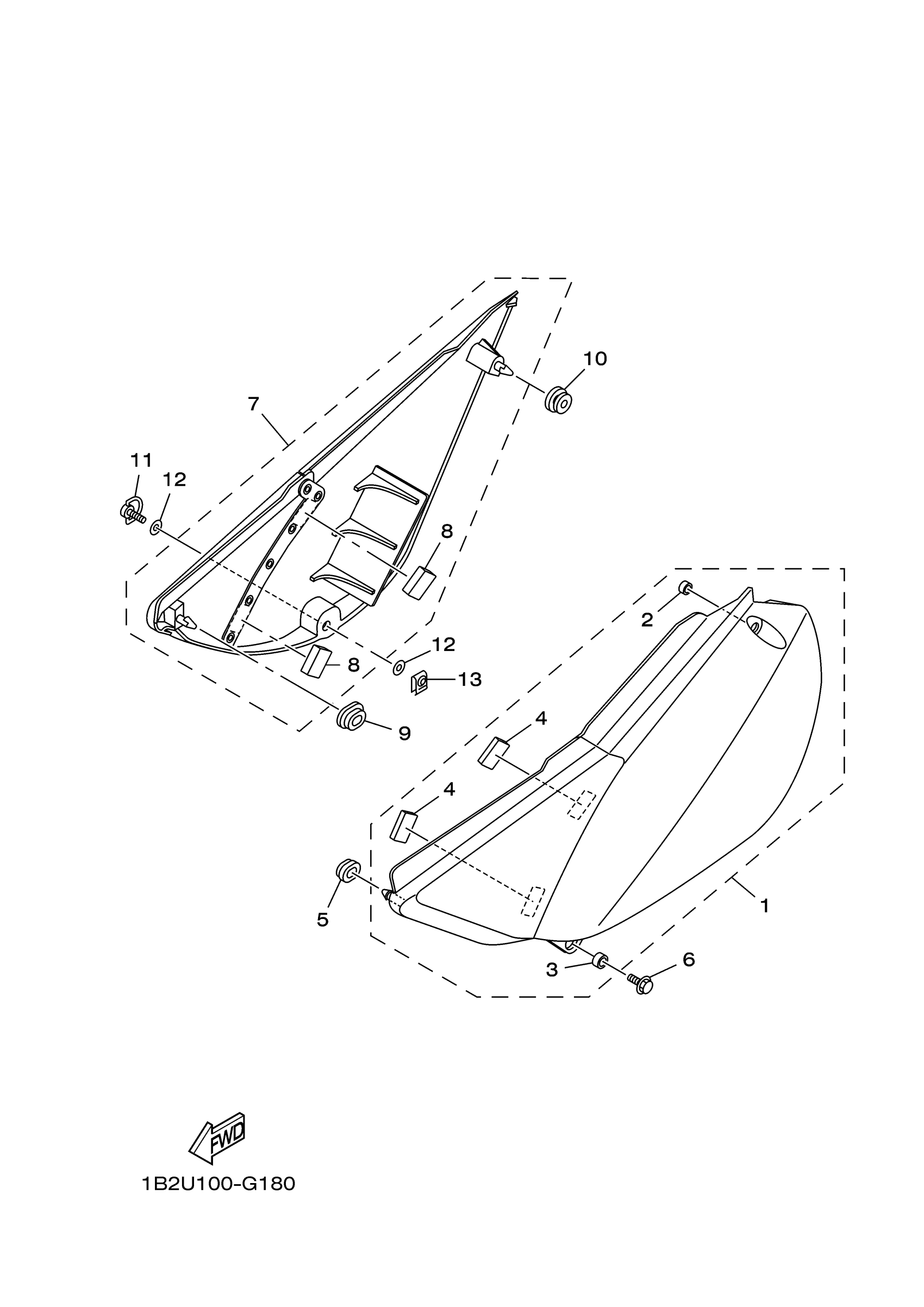

Yamaha TTR125LX (TTR125L) 19C1 2008 SIDE COVER Diagram

#

Description
Price

1

SIDE COVER ASSY 1 PWS1

1B2-F1710-00-00

$59.27

2

COLLAR(3XJ)

90387-064X4-00

$5.03

3

COLLAR

90387-1001B-00

$2.97

4

DAMPER

1B2-21717-00-00

$4.70

5

GROMMET(4DN)

90480-01558-00

$3.68

6

BOLT, HEXA W/W

90119-06018-00

$5.75

7

SIDE COVER ASSY 2 PWS1

1B2-F1720-00-00

$59.27

8

DAMPER, LOCATING 1

1B2-21778-00-00

$4.73

9

GROMMET(4DN)

90480-01558-00

$3.68

10

GROMMET

90480-13014-00

$6.39

11

HEAD

3FV-28386-00-00

$33.27

12

WASHER, SPECIAL 1

2TK-21757-00-00

$1.64

13

PLATE, SPRING

4XV-2177L-01-00

$5.79
