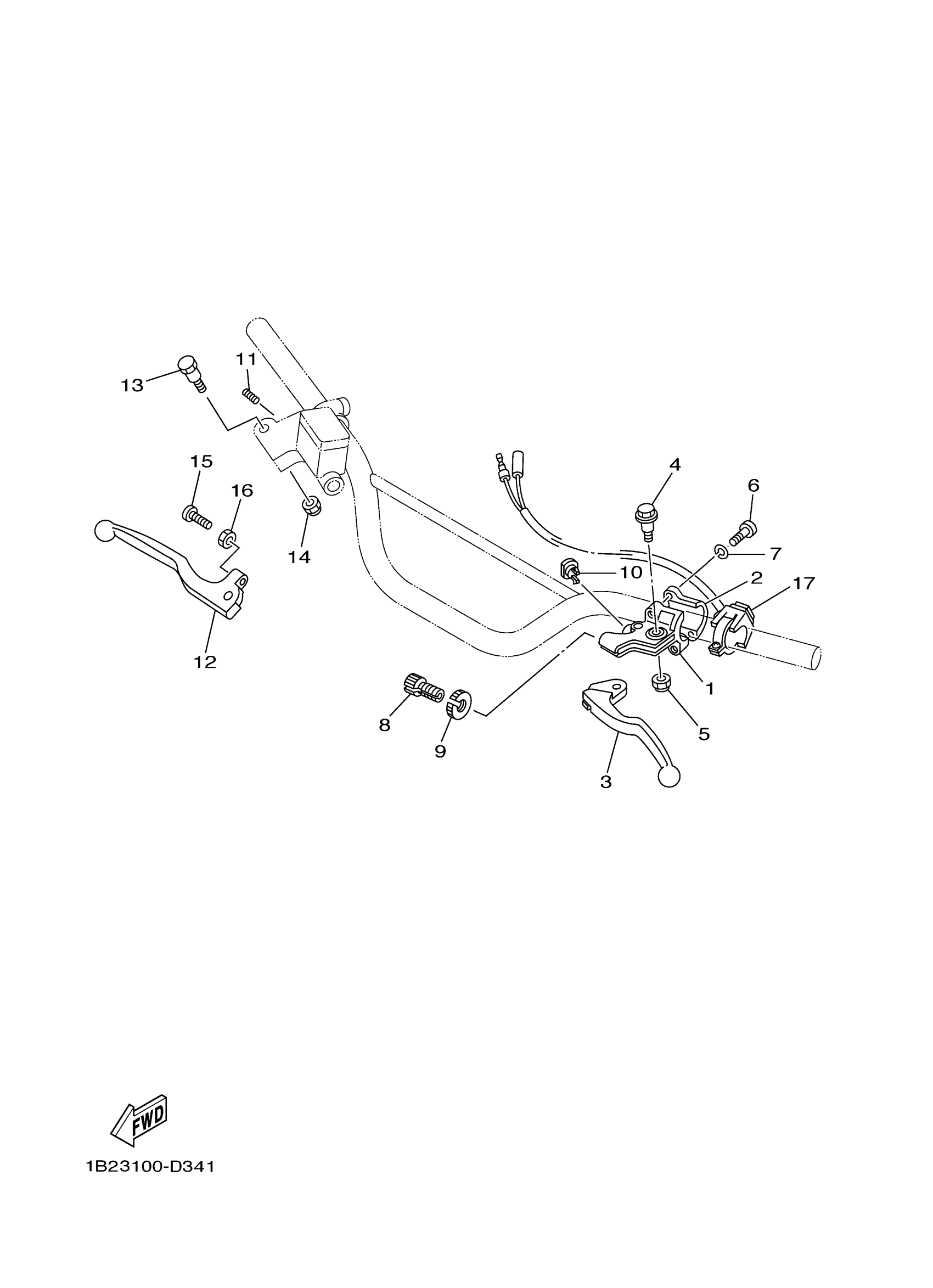

Yamaha TTR125LX (TTR125L) 19C1 2008 HANDLE SWITCH LEVER Diagram

Description

Price

HOLDER LEVER 1

2TY-H2911-00-00

$23.99

HOLDER, LEVER LOWER 1

1B2-H2913-00-00

$4.56

LEVER 1

4GY-83912-00-00

$28.99

BOLT, LEVER

4LR-H3945-00-00

$1.86

NUT SELF LOCKING

90185-06802-00

$1.11

SCREW, PAN HEAD

98517-05020-00

$4.25

WASHER(3SX)

92907-05100-00

$8.49

BOLT

90123-08002-00

$10.49

NUT

90179-08030-00

$5.49

CAP 1

23L-H3956-00-00

Unavailable

SPRING, COMPRESSION(3RB)

90501-061G2-00

$3.35

LEVER 2

1B2-H3922-10-00

$16.99

BOLT (4L0)

90109-06577-00

$5.60

NUT SELF LOCKING

90185-06802-00

$1.11

SCREW, HEXAGON(4EW)

90143-06024-00

$11.49

NUT HEXAGON 306839270000

90170-06010-00

Unavailable

SWITCH, HANDLE 1

22W-83976-02-00

Unavailable
