Description

Price

1

FRONT FENDER ASSY DPBSE

1B2-F1511-10-00

$46.99

2

BOLT, WITH WASHER (10V)

90119-06063-00

$9.49

3

WASHER (3R8)

90209-06187-00

$8.49

4

EMBLEM, YAMAHA

1B2-F153E-10-00

$8.49

5

REAR FENDER ASSY

1B2-F1611-20-00

$92.99

6

COLLAR(3XJ)

90387-064X4-00

$7.49

7

COLLAR

90387-1001B-00

Unavailable

8

COLLAR

90387-07023-00

$5.60

9

BOLT, FLANGE

95817-06016-00

$2.75

10

GUARD, FLAP

4ES-21642-01-00

$37.99

11

WASHER, PLATE

90201-06020-00

$9.49

12

EMBLEM, YAMAHA

1B2-F153E-10-00

$8.49

13

EMBLEM 1

1B2-F163G-50-00

Unavailable

14

LABEL, CAUTION

3PT-2118K-A2-00

$5.49

15

LABEL 5

3XJ-2151H-A1-00

$7.99

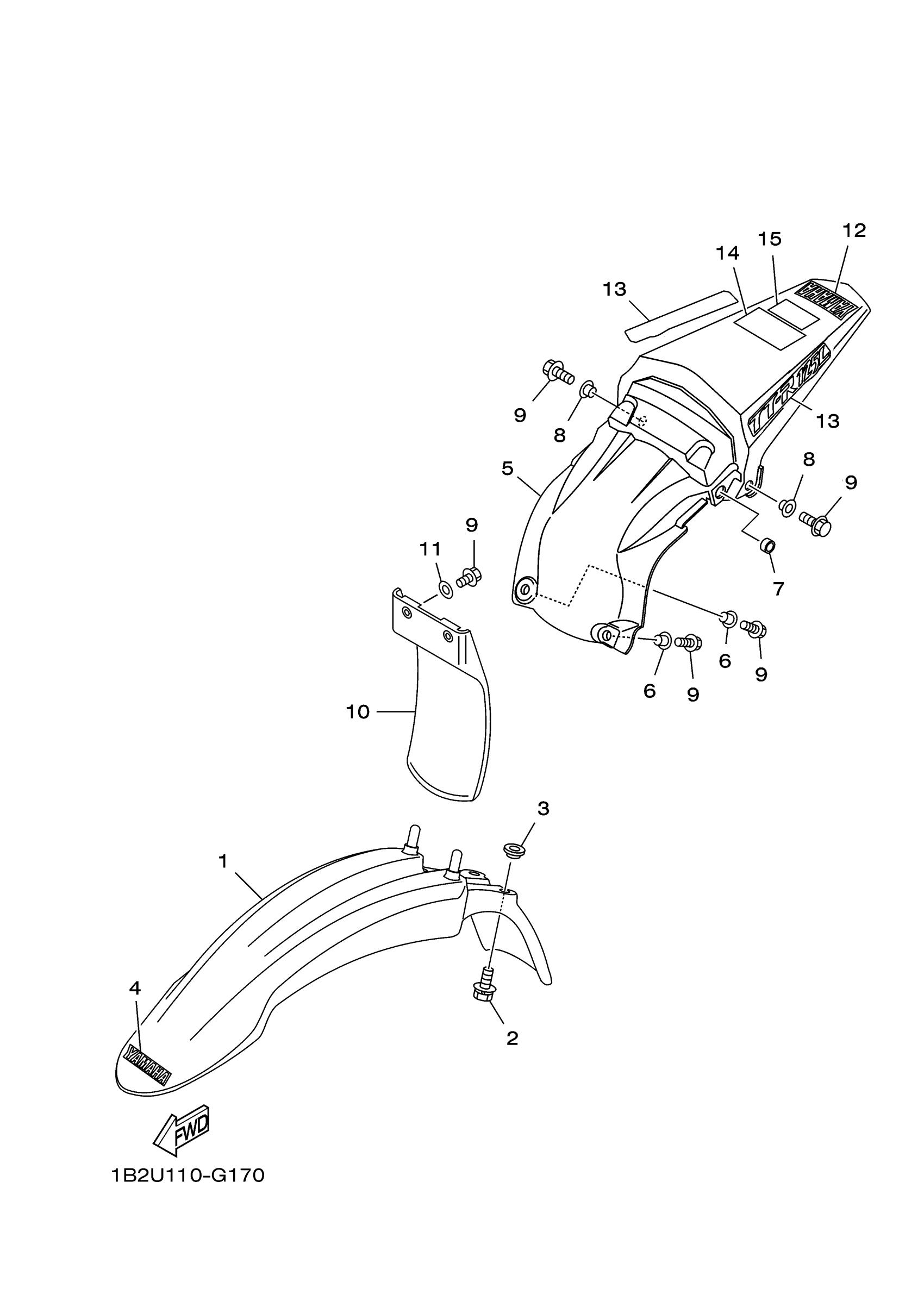

Yamaha TTR125LX (TTR125L) 19C1 2008 FENDER Diagram

FRONT FENDER ASSY DPBSE

BOLT, WITH WASHER (10V)

WASHER (3R8)

EMBLEM, YAMAHA

REAR FENDER ASSY

COLLAR(3XJ)

COLLAR

COLLAR

BOLT, FLANGE

GUARD, FLAP

WASHER, PLATE

EMBLEM, YAMAHA

EMBLEM 1

LABEL, CAUTION

LABEL 5
