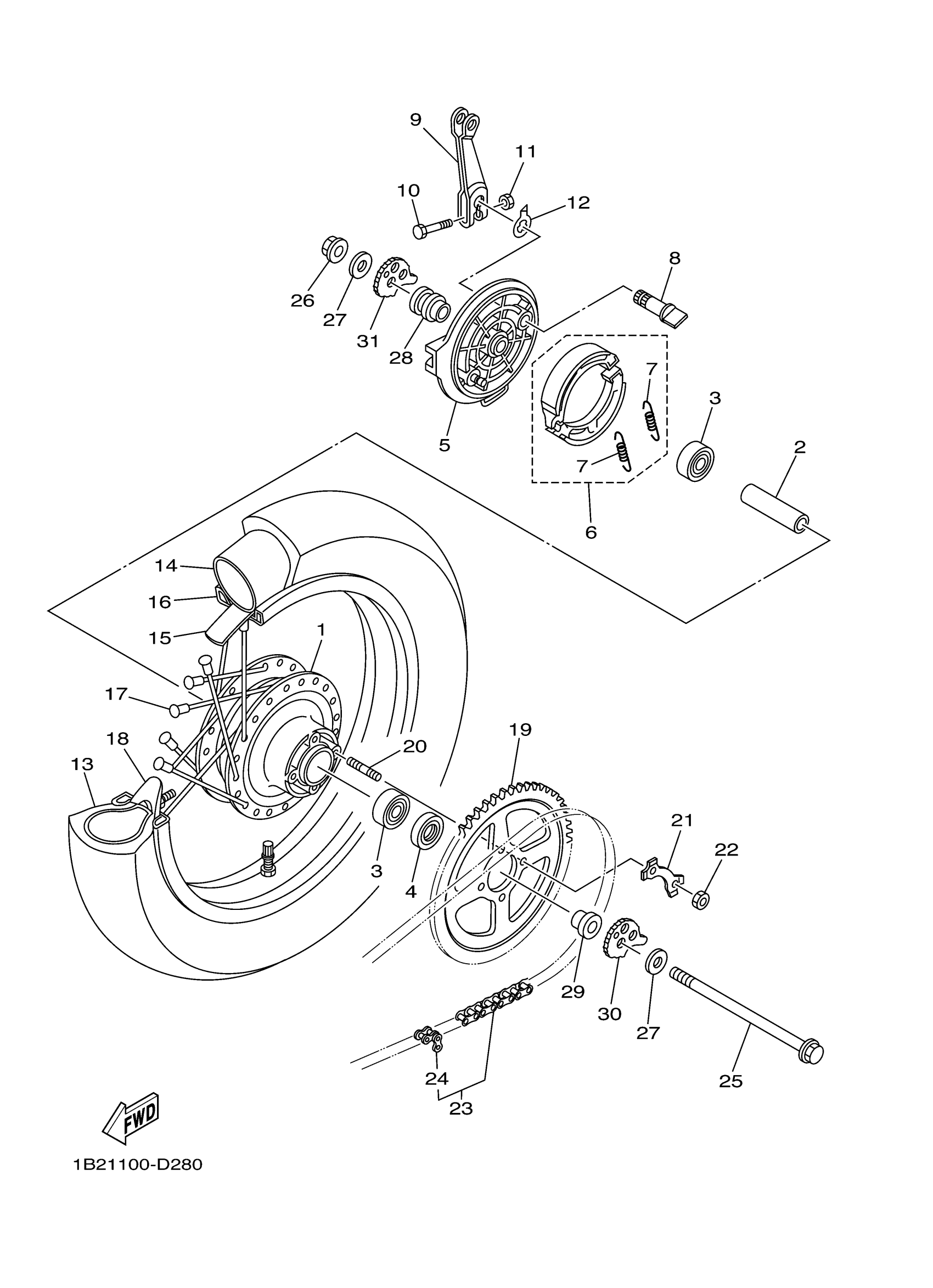

Yamaha TTR125LV (TT-R125L) 1B2B 2006 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

1B2-F5311-00-00

$161.99

2

SPACER (1U1)

90560-12170-00

$17.99

3

BEARING

93306-301YY-00

$23.99

4

OIL SEAL(3TU)

93106-20033-00

$13.49

5

PLATE, BRAKE SHOE

1B2-F5321-00-00

Unavailable

6

BRAKE SHOE KIT

4KN-W253E-11-00

$25.99

7

SPRING, TENSION

90506-15260-00

$8.49

8

CAMSHAFT

1B2-F5151-00-00

Unavailable

9

LEVER, CAMSHAFT

55K-25355-00-00

$40.99

10

BOLT, HEXAGON

97017-06030-00

$3.61

11

NUT(6TA)

95317-06600-00

$3.55

12

PLATE, INDICATOR

2JX-2533A-00-00

$7.99

13

TIRE (90/100-16 52M IX05H)

94109-16008-00

Unavailable

14

TUBE

94209-16003-00

$28.99

15

BAND, RIM

94330-16058-00

$20.99

16

RIM (1.60-16)

94416-16003-00

Unavailable

17

SPOKE SET, REAR

1B2-F5304-20-00

Unavailable

18

SPACER, BEAD

1B2-F5394-00-00

Unavailable

19

SPROCKET, DRIVEN (54T)

5HP-25454-20-00

Unavailable

20

BOLT, STUD

90116-10013-00

Unavailable

21

WASHER CLOCK, SPROCKET

5RM-F5412-00-00

Unavailable

22

NUT

90170-10206-00

Unavailable

23

CHAIN

9Y582-51121-00

Unavailable

24

JOINT, CHAIN

94682-51001-00

Unavailable

25

AXLE, WHEEL

5HN-25381-00-00

Unavailable

26

NUT, U FLANGE

95607-12200-00

Unavailable

27

WASHER, PLATE (4N0)

90201-126A7-00

Unavailable

28

COLLAR, WHEEL

1B2-F5383-00-00

Unavailable

29

COLLAR (40E)

90387-127E0-00

Unavailable

30

PULLER, CHAIN 1

1B2-F5388-00-00

Unavailable

31

PULLER, CHAIN 2

1B2-F5389-00-00

Unavailable
