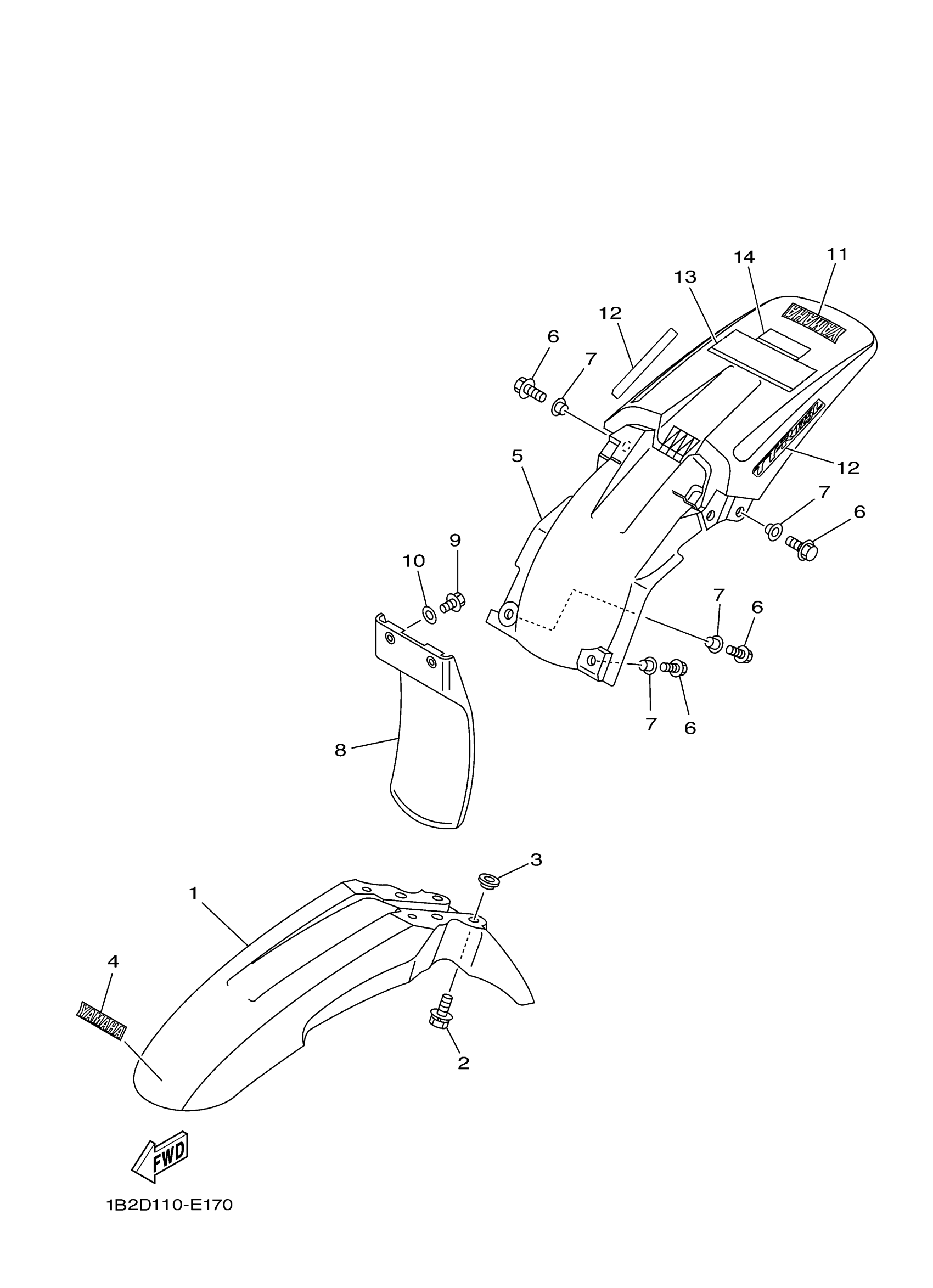

Yamaha TTR125LV (TT-R125L) 1B2B 2006 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

5HP-21511-00-00

$54.63

2

BOLT, WITH WASHER (10V)

90119-06063-00

$5.86

3

WASHER (3R8)

90209-06187-00

$5.76

4

EMBLEM, YAMAHA

B68-F153E-00-00

$12.38

5

FENDER, REAR

4ES-21611-10-00

$48.47

6

BOLT, FLANGE

95817-06016-00

$1.40

7

COLLAR(3XJ)

90387-064X4-00

$5.03

8

GUARD, FLAP

4ES-21642-01-00

$33.68

9

BOLT, FLANGE

95817-06016-00

$1.40

10

WASHER, PLATE

90201-06020-00

$5.86

11

EMBLEM, YAMAHA

B68-F153E-00-00

$12.38

12

EMBLEM 1

1B2-F163G-30-00

Unavailable

13

LABEL, CAUTION

3PT-2118K-A2-00

$4.40

14

LABEL 5

3XJ-2151H-A1-00

$6.48
