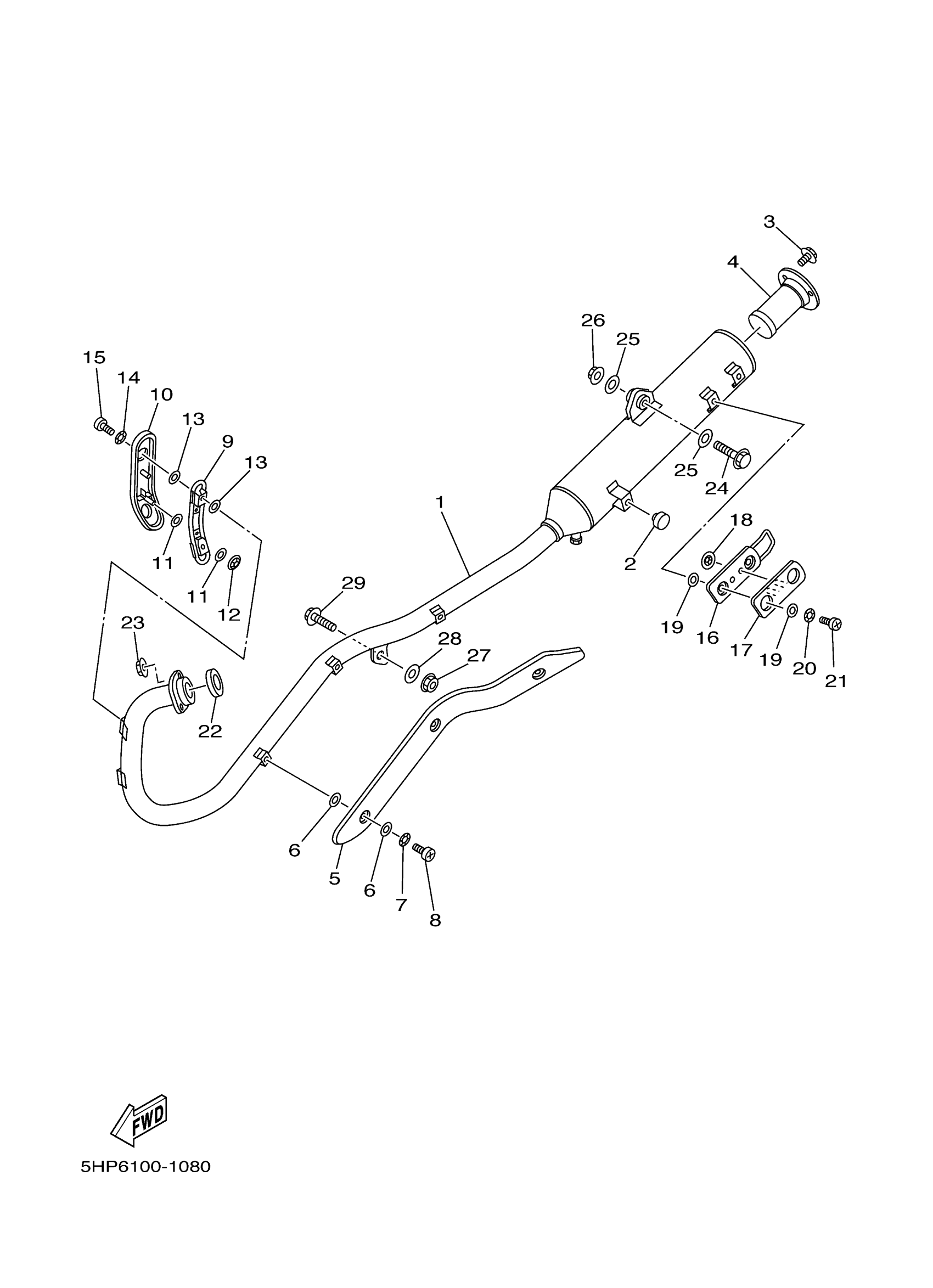

Yamaha TTR125LV (TT-R125L) 1B2B 2006 EXHAUST Diagram

MUFFLER 1

1B2-E4711-00-00

Unavailable

DAMPER, LOCATING 1

22W-24181-00-00

$6.99

BOLT, FLANGE(4MY)

95027-06010-00

$3.29

SPARK ARRESTER ASSY

5HP-14780-00-00

Unavailable

PROTECTOR, EXHAUST PIPE

1B2-E4628-00-00

$72.99

WASHER, PROTECTOR

4BD-14766-00-00

$5.49

WASHER, WAVE(3RW)

90206-06090-00

$8.49

SCREW, BIND(2TV)

98980-06008-00

$3.19

PROTECTOR, EXHAUST PIPE

1B2-E4628-10-00

$18.99

COVER, 1

1B2-E479H-00-00

$3.23

WASHER, PROTECTOR

4BD-14766-00-00

$5.49

NUT SPRING 116283170100

90183-04005-00

$10.49

WASHER, PROTECTOR

4BD-14766-00-00

$5.49

WASHER, WAVE(3RW)

90206-06090-00

$8.49

SCREW, BIND(2TV)

98980-06008-00

$3.19

PROTECTER, SILENCER

5HP-14758-00-00

Unavailable

COVER 2

5HP-1479J-00-00

Unavailable

NUT SPRING 116283170100

90183-04005-00

$10.49

WASHER, PROTECTOR

4BD-14766-00-00

$5.49

WASHER, WAVE(3RW)

90206-06090-00

$8.49

SCREW, BIND(2TV)

98980-06008-00

$3.19

GASKET, EXHAUST PIPE

4BR-14613-00-00

Unavailable

NUT, U FLANGE

95604-06200-00

Unavailable

BOLT, FLANGE

9581M-10040-00

Unavailable

WASHER, PLATE(47X)

90201-101J1-00

Unavailable

NUT, SELF-LOCKING

90185-10002-00

Unavailable

NUT(55X)

90179-08491-00

Unavailable

WASHER, PLATE (8L8)

90201-087A9-00

Unavailable

BOLT, WASHER BASED(JN9)

90105-081A7-00

Unavailable
