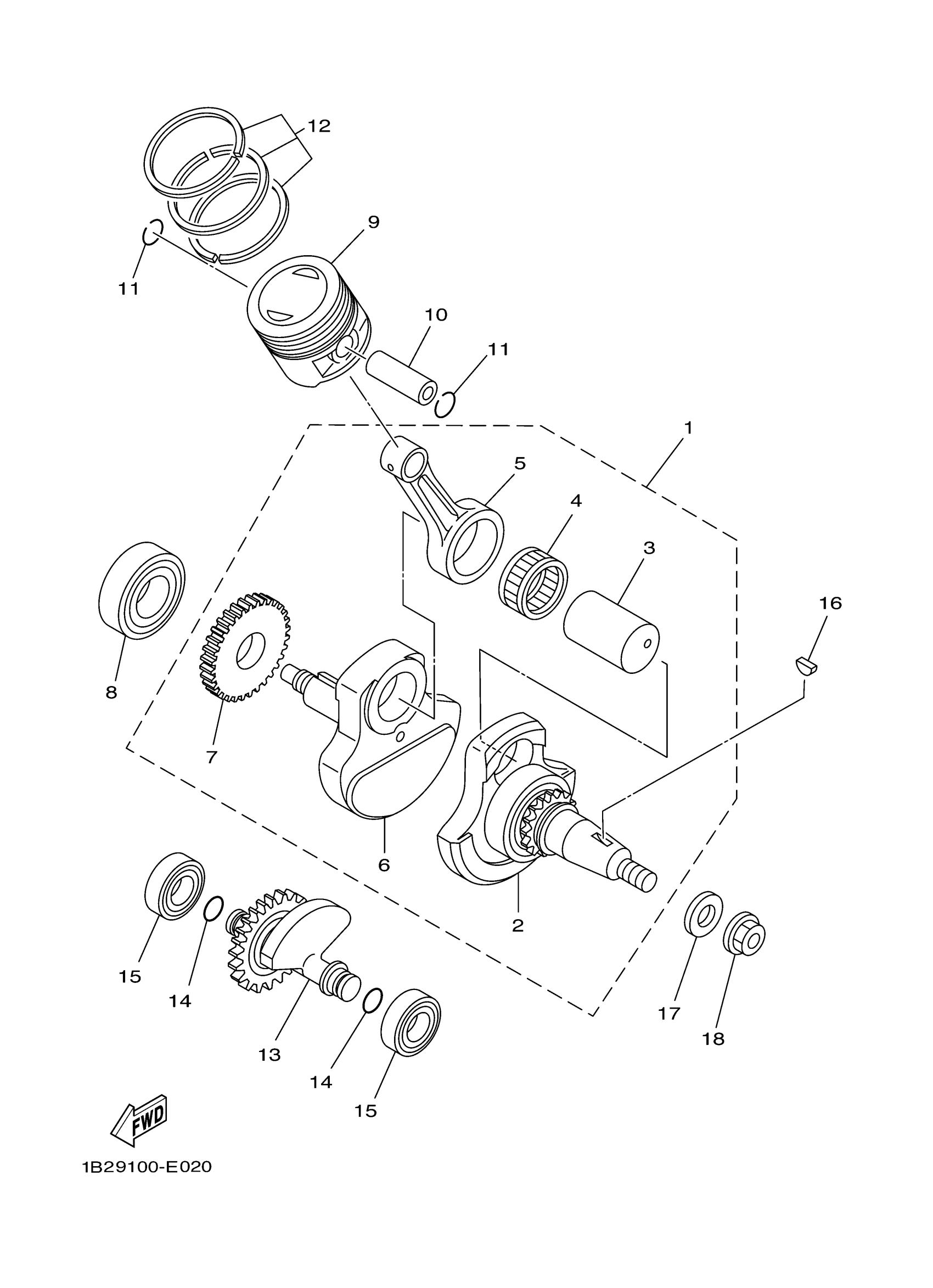

Yamaha TTR125LV (TT-R125L) 1B2B 2006 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

5HH-E1400-13-00

Unavailable

2

CRANK 1 ASSY

5HH-WE141-11-00

Unavailable

3

PIN, CRANK 1

4LS-11681-01-00

$64.99

4

BEARING

93310-6290C-00

$81.99

5

ROD, CONNECTING

4LS-11651-02-00

$82.99

6

. CRANK 2

5HH-E1422-10-00

Unavailable

7

GEAR, DRIVE

5HH-E1536-00-00

$82.99

8

BEARING

93306-205YW-00

$45.99

9

PISTON (STD)

5HP-11631-00-A0

$131.99

9

PISTON (0.50MM O/S)

5HP-11636-00-00

Unavailable

9

PISTON (1.00MM O/S)

5HP-11638-00-00

Unavailable

10

PIN, PISTON

2TK-11633-00-00

$23.99

11

CIRCLIP (4G0)

93450-16068-00

$7.49

12

PISTON RING SET (STD)

4LS-11603-00-00

$67.99

12

PISTON RING SET (0.50MM O/S)

4LS-11605-00-00

$63.99

12

PISTON RING SET (1.00MM O/S)

4LS-11607-00-00

Unavailable

13

BALANCER ASSY

5HH-E1500-03-00

Unavailable

14

O-RING

93210-11001-00

Unavailable

15

BRG, R-B (7H4)

93306-20211-00

Unavailable

16

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable

17

WASHER, PLATE (4K8)

90201-120E8-00

Unavailable

18

NUT(3EF)

90179-12657-00

Unavailable
