Description

Price

1

GEAR, PRIMARY DRIVE

401-16111-10-00

Unavailable

2

KEY, STRAIGHT

90282-05001-00

$9.49

3

WASHER, PLATE (35T)

90201-122H1-00

$9.49

4

NUT(1EE)

90179-12659-00

$8.49

5

PRIMARY DRIVEN GEAR COMP.

5AP-16150-01-00

$343.99

6

PLATE, THRUST 1

4V0-16154-00-00

$31.99

7

BOSS, CLUTCH

5AP-16371-00-00

$126.99

8

PLATE, FRICTION

598-16321-01-00

$17.49

9

PLATE, CLUTCH 1

1V1-16324-10-00

$22.99

10

PLATE, PRESSURE 1

5AP-16351-00-00

$43.99

11

SPRING, COMPRESSION(58T)

90501-204A0-00

$8.49

12

BOLT, W/WASHER (3V2)

90119-05020-00

$9.49

13

PLATE, PUSH

1W1-16358-01-00

$23.99

14

ROD, PUSH 1

5AP-16356-00-00

$14.49

15

WASHER(6TA)

92907-06200-00

$8.49

16

NUT(6TA)

95317-06600-00

Unavailable

17

PLATE, THRUST 2

5HH-E6164-00-00

Unavailable

18

WASHER, CONICAL SPRING (10V)

90208-17032-00

Unavailable

19

WASHER, LOCK (21T)

90215-12211-00

Unavailable

20

NUT, HEXAGON 1371637700

90170-12060-00

Unavailable

21

BALL

93503-16003-00

Unavailable

22

ROD, PUSH

5VL-E6357-01-00

Unavailable

23

PUSH LEVER COMP

1B2-E6381-11-00

Unavailable

24

SPRING, TORSION

90508-16W13-00

Unavailable

25

OIL SEAL (4G0)

93102-12224-00

Unavailable

26

CIRCLIP(1EV)

99009-20500-00

Unavailable

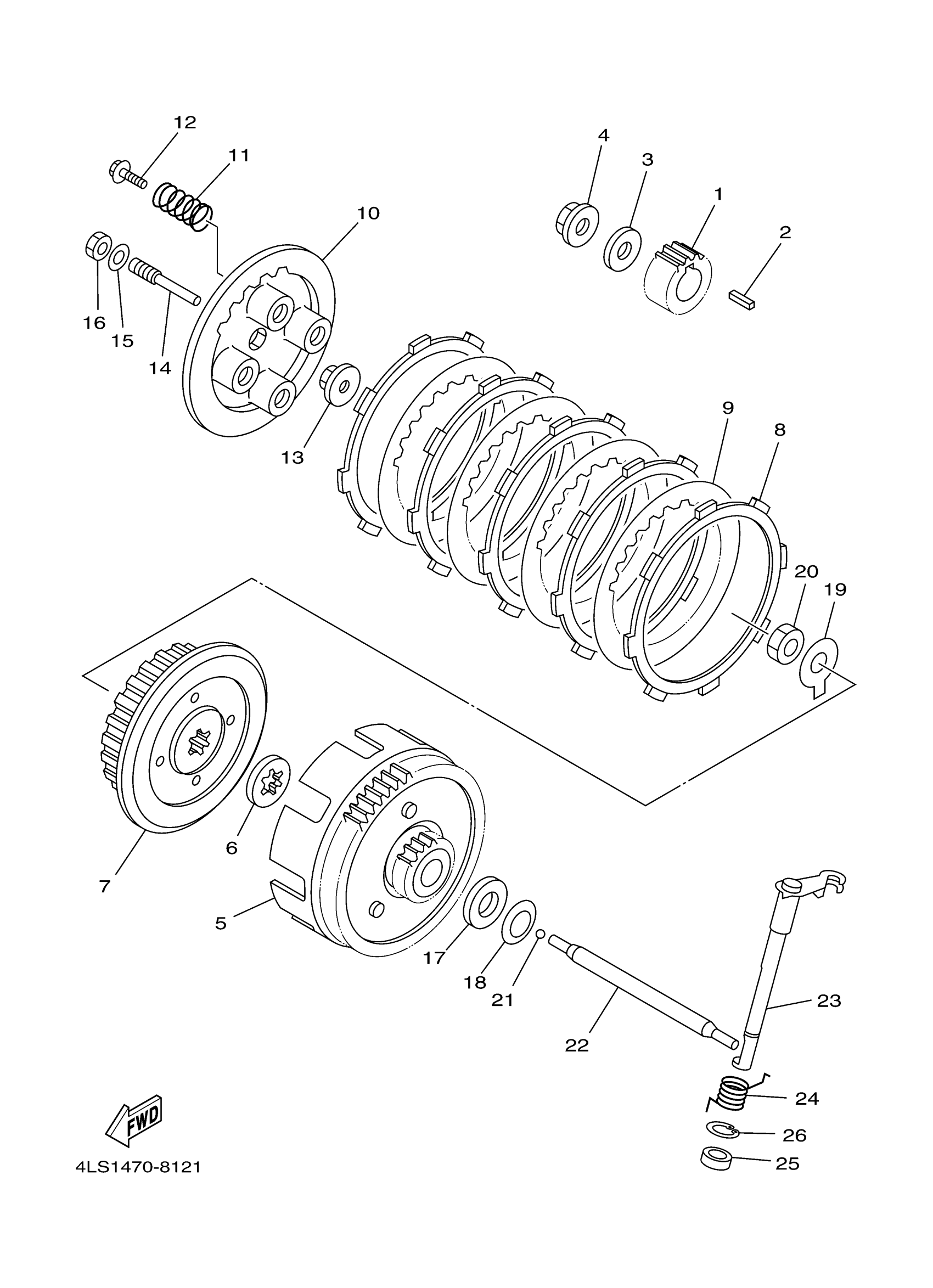

Yamaha TTR125LV (TT-R125L) 1B2B 2006 CLUTCH Diagram

GEAR, PRIMARY DRIVE

KEY, STRAIGHT

WASHER, PLATE (35T)

NUT(1EE)

PRIMARY DRIVEN GEAR COMP.

PLATE, THRUST 1

BOSS, CLUTCH

PLATE, FRICTION

PLATE, CLUTCH 1

PLATE, PRESSURE 1

SPRING, COMPRESSION(58T)

BOLT, W/WASHER (3V2)

PLATE, PUSH

ROD, PUSH 1

WASHER(6TA)

NUT(6TA)

PLATE, THRUST 2

WASHER, CONICAL SPRING (10V)

WASHER, LOCK (21T)

NUT, HEXAGON 1371637700

BALL

ROD, PUSH

PUSH LEVER COMP

SPRING, TORSION

OIL SEAL (4G0)

CIRCLIP(1EV)
