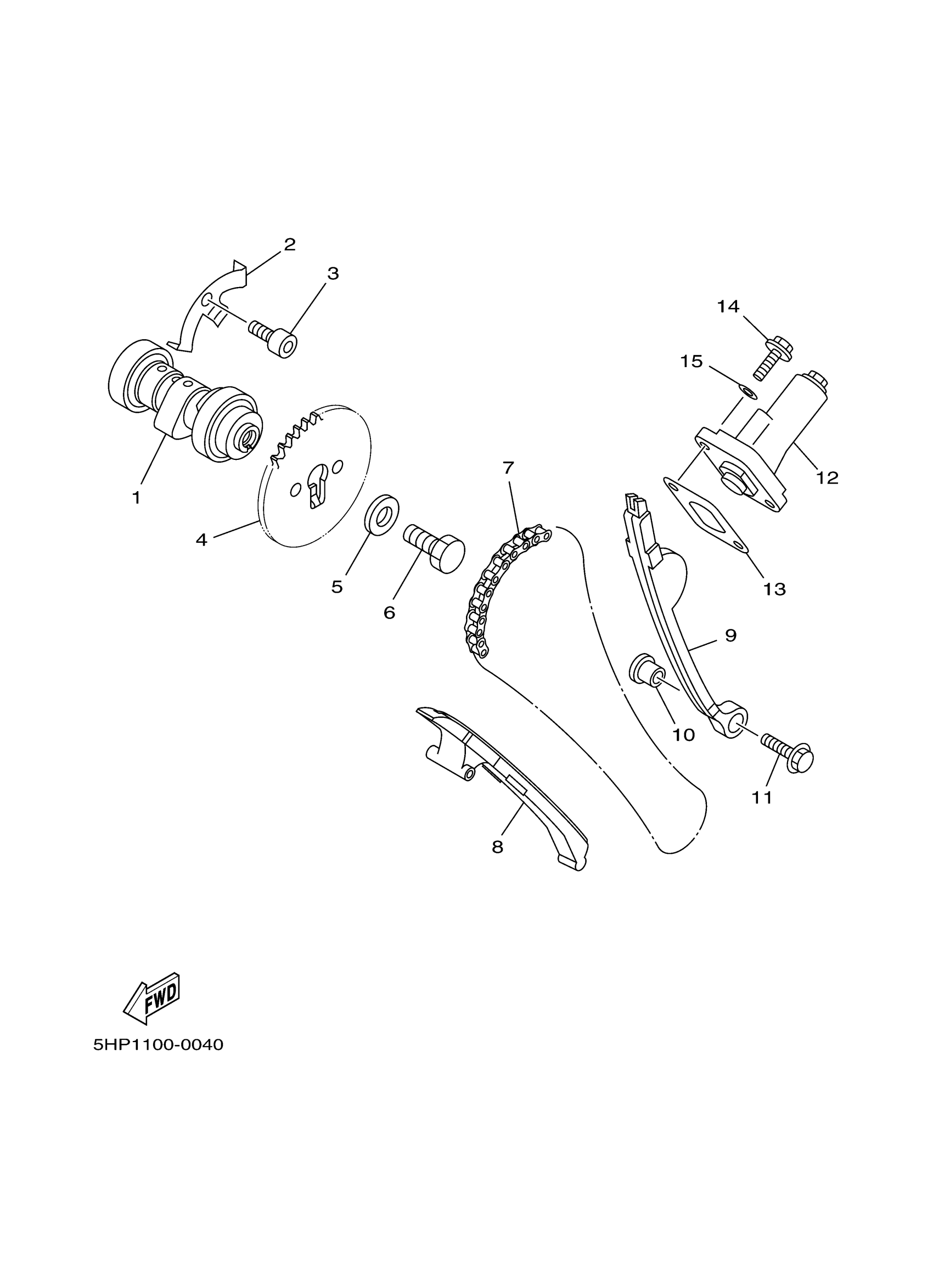

Yamaha TTR125LV (TT-R125L) 1B2B 2006 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

5HP-12170-00-00

Unavailable

2

PLATE

5HH-E111F-00-00

$2.10

3

BOLT M6

9131M-06012-00

$1.05

4

SPROCKET, CAM CHAIN

5HH-E2176-00-00

Unavailable

5

WASHER (853)

90201-08326-00

$8.49

6

BOLT, HEXAGON (22F)

90101-08590-00

$2.34

7

CHAIN

94581-94088-00

$40.99

8

GUIDE, STOPPER 1

5AP-12231-00-00

Unavailable

9

GUIDE, STOPPER 2

5HH-E2241-00-00

Unavailable

10

COLLAR

5HH-E5598-00-00

$1.85

11

BOLT, FLANGE

95817-06020-00

$3.81

12

TENSIONER ASSY, CAM CHAIN

5KR-12210-00-00

$85.99

13

GASKET, TENSIONER CASE 1

5HH-E2213-00-00

$1.91

14

BOLT, FLANGE

95817-06016-00

$2.75

15

GASKET 256113960000

90430-06014-00

Unavailable
