Description

Price

1

STOPPER LEVER ASSY

5HH-E8140-00-00

$10.49

2

SPRG.

5HH-E8337-00-00

$2.13

3

BOLT

90109-06190-00

$4.72

4

OIL SEAL

93101-12173-00

$13.49

5

SPRING, TORSION(17W)

90508-32642-00

$9.49

6

CIRCLIP

99006-10600-00

$9.49

7

SHIFT SHAFT ASSY

5AP-18101-01-00

$51.99

8

PIN,DOWEL

93608-30839-00

$7.49

9

SHIFT PEDAL ASSY

1B2-E8110-01-00

Unavailable

10

COVER, CHANGE PEDAL

1W6-18113-00-00

$5.49

11

COVER, DUST

2H9-18154-00-00

$5.49

12

NUT, HEX.,

9530L-06700-00

Unavailable

13

NUT (2H9)

90170-06228-00

$9.49

14

ROD, SHIFT

1B2-E8115-00-00

$2.17

15

ARM, SHIFT

1B2-E8112-01-00

Unavailable

16

COVER, DUST

2H9-18154-00-00

$5.49

17

BOLT, FLANGE

95817-06020-00

Unavailable

18

WASHER, PLATE(55K)

90201-127J6-00

Unavailable

19

BOLT SPECIAL SHAPE M6

90109-06815-00

Unavailable

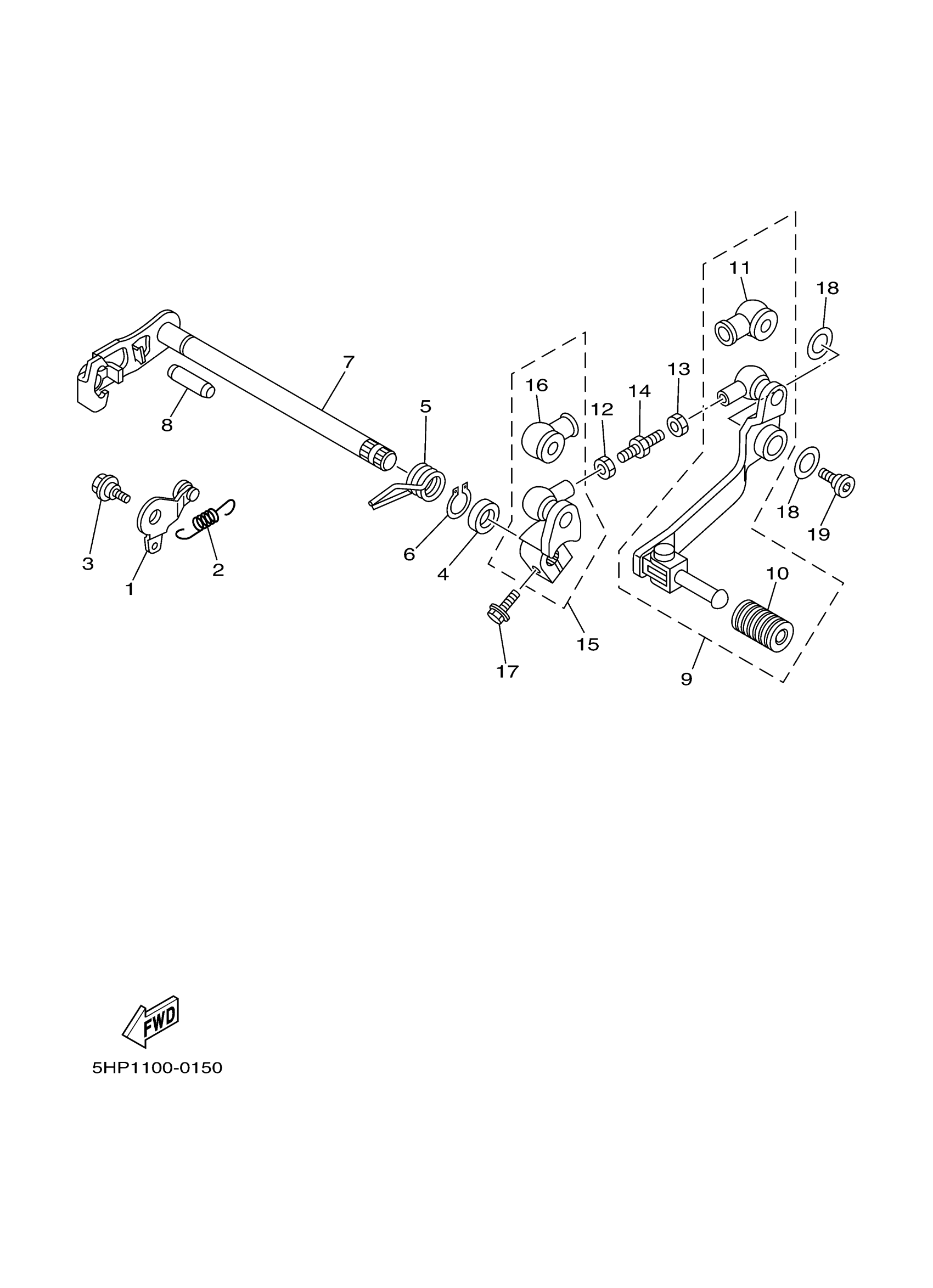

Yamaha TTR125LT (TT-R125L) 1B23 2005 SHIFT SHAFT Diagram

STOPPER LEVER ASSY

SPRG.

BOLT

OIL SEAL

SPRING, TORSION(17W)

CIRCLIP

SHIFT SHAFT ASSY

PIN,DOWEL

SHIFT PEDAL ASSY

COVER, CHANGE PEDAL

COVER, DUST

NUT, HEX.,

NUT (2H9)

ROD, SHIFT

ARM, SHIFT

COVER, DUST

BOLT, FLANGE

WASHER, PLATE(55K)

BOLT SPECIAL SHAPE M6
