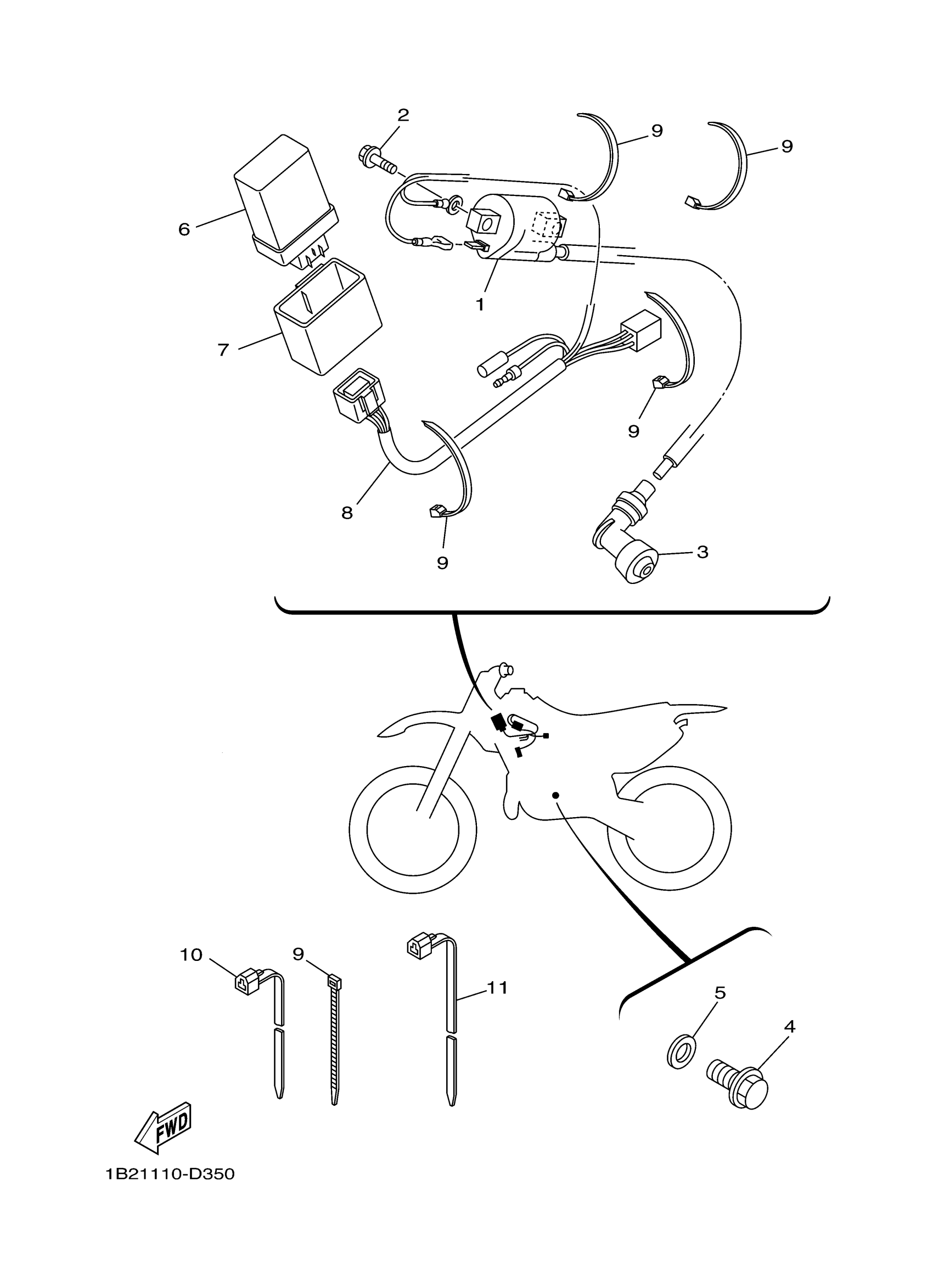

Yamaha TTR125LT (TT-R125L) 1B23 2005 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITION COIL ASSY

3KJ-82310-13-00

Unavailable

2

BOLT, FLANGE

95817-06016-00

$1.40

3

PLUG CAP ASSY

4BP-82370-01-00

$29.71

4

BOLT, FLANGE

9580M-10016-00

$2.61

5

GASKET (1KH,1.0T)

90430-10148-00

$4.44

6

C.D.I. UNIT ASSY

5HP-85540-01-00

Unavailable

7

BAND

1B2-H5546-00-00

Unavailable

8

WIRE HARNESS ASSY

1B2-H2590-00-00

Unavailable

9

BAND

1UA-82591-00-00

$3.85

10

CLAMP

90464-13077-00

$6.22

11

CLAMP(4FM)

90464-15195-00

$2.57
