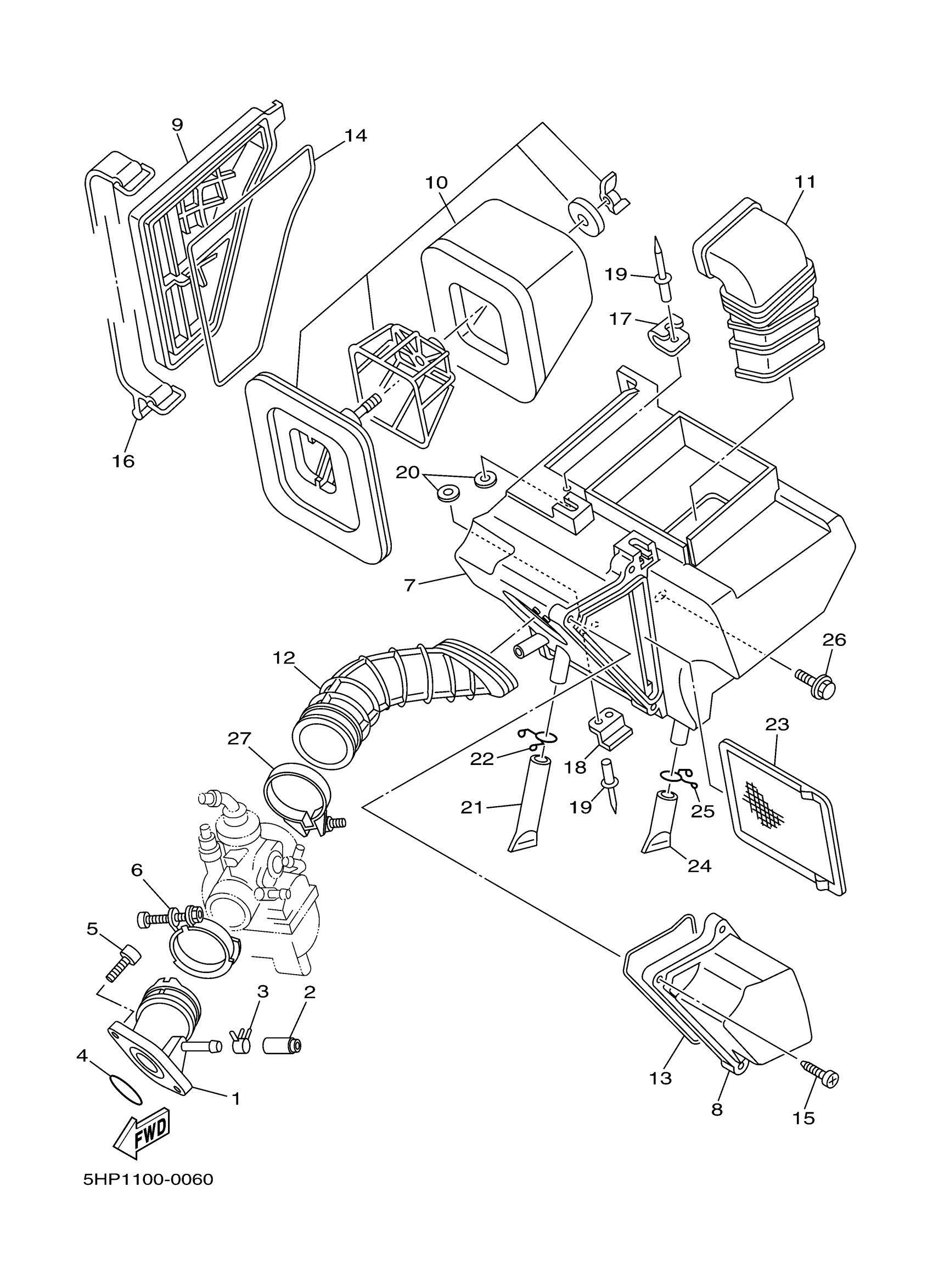

Yamaha TTR125LM (TTR125L) 5HP4 2000 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

5HP-13586-00-00

$84.99

2

PLUG, BLIND

16G-13569-00-00

$7.99

3

CLIP (3G0)

90467-10039-00

$9.49

4

O-RING (30X)

93210-30611-00

$13.49

5

BOLT,SOCKET

91317-06020-00

Unavailable

6

HOSE CLAMP ASSY(1MX)

90450-44046-00

$16.99

7

CASE, AIR CLEANER 1

5HP-14411-01-00

Unavailable

8

CAP, CLEANER CASE 1

5HP-14412-00-00

Unavailable

9

CAP, CLEANER CASE 2

5HP-14422-00-00

$28.99

10

ELEMENT ASSY, AIR CLEANER

5HP-14450-00-00

$24.99

11

DUCT

5HP-14437-00-00

Unavailable

12

JOINT, AIR CLEANER 1

5HP-14453-01-00

$61.99

13

SEAL

51Y-14462-00-00

$18.49

14

SEAL

1VJ-14462-00-00

$18.49

15

SCREW, PAN TAP.2 SLIT

97707-50620-00

$8.49

16

BAND

5HP-2811G-00-00

Unavailable

17

PLATE, CLEANER CASE FITTING

34K-14484-00-00

Unavailable

18

HOOK

26A-14436-00-00

Unavailable

19

RIVET, BLIND

90267-40029-00

Unavailable

20

WASHER(6E1)

92907-04200-00

Unavailable

21

PIPE, DRAIN

3AJ-1443E-00-00

Unavailable

22

CLIP (806-24358-00)

90467-15012-00

Unavailable

23

PLATE, ELEMENT

5HP-14472-00-00

Unavailable

24

PIPE, DRAIN

MS0-1443E-00-00

Unavailable

25

CLIP (371)

90467-14015-00

Unavailable

26

BOLT, WITH WASHER

90119-06242-00

Unavailable

27

HOSE CLAMP ASSY

90450-47002-00

Unavailable
